Terminals Of Ecu

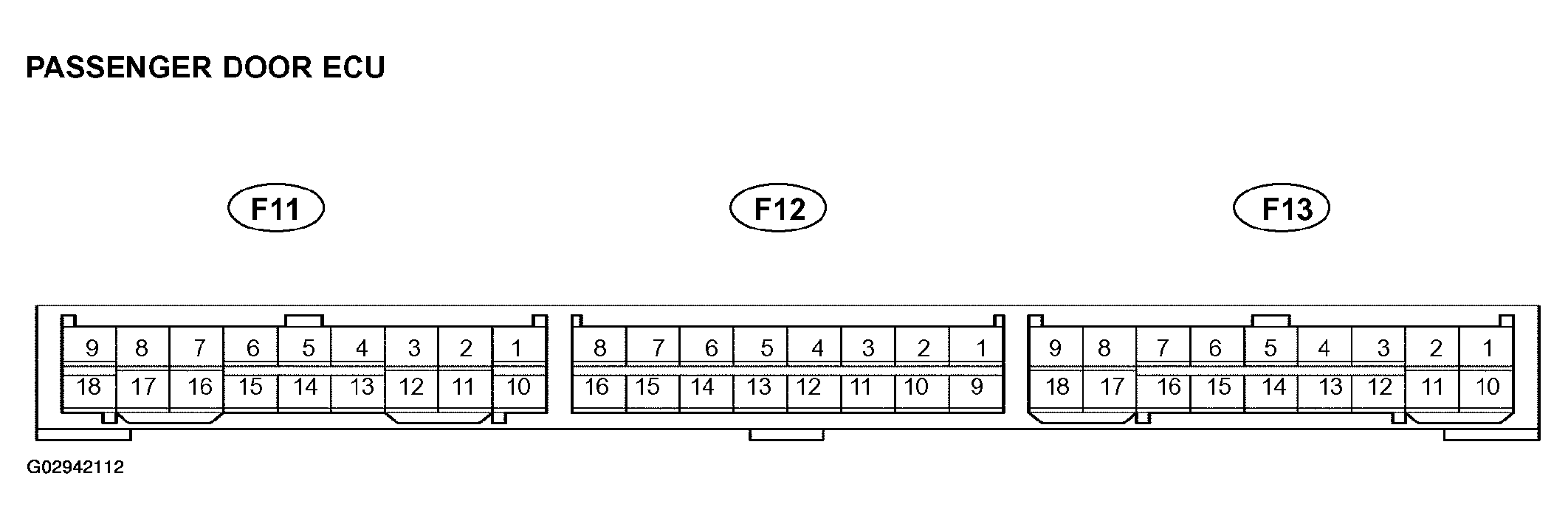

Fig 1: Identifying ECU Connector Terminals
G02942112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

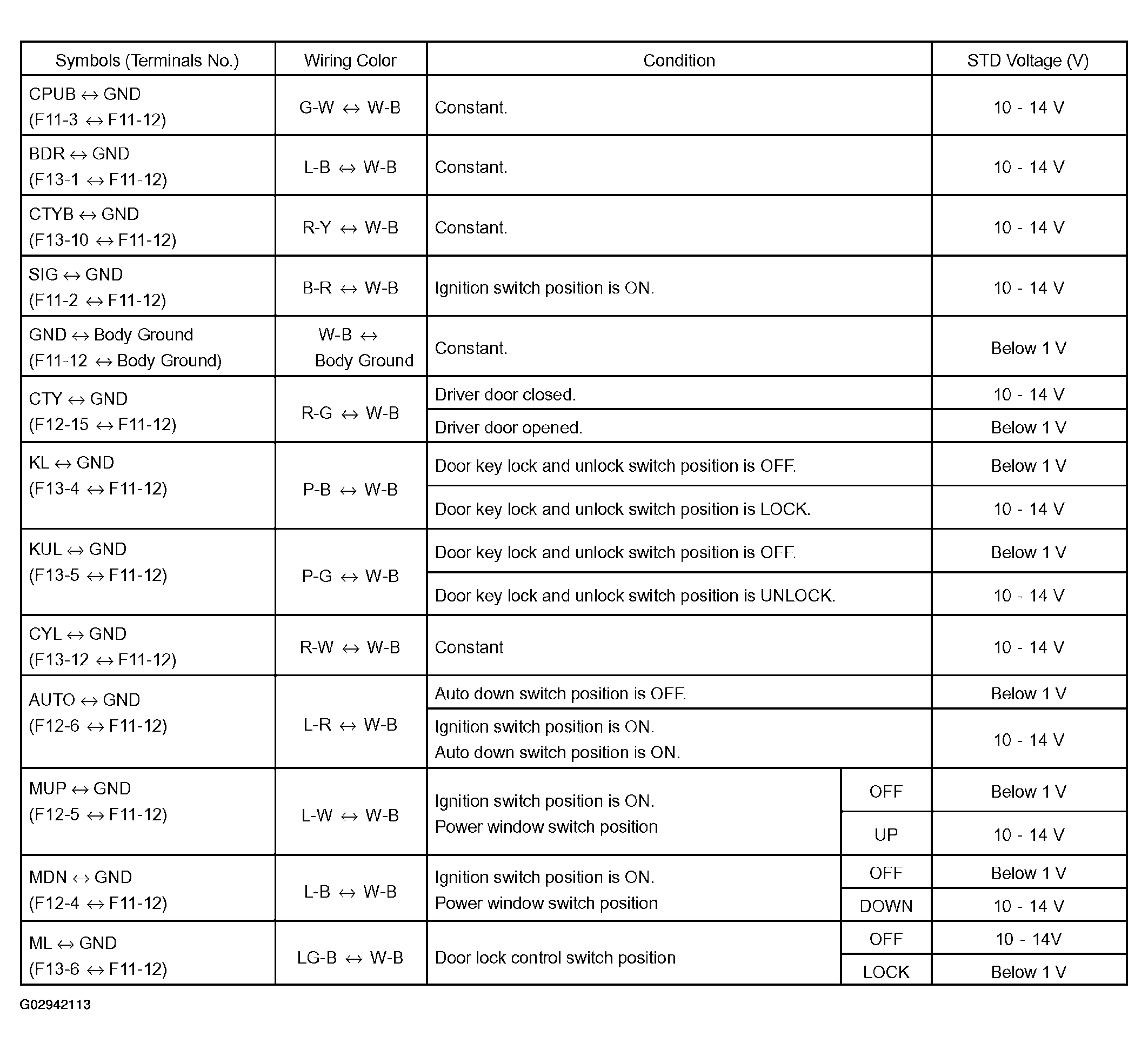

Fig 2: Identifying ECU Connector Terminals, Condition, STD Voltage Table (1 Of 2)
G02942113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

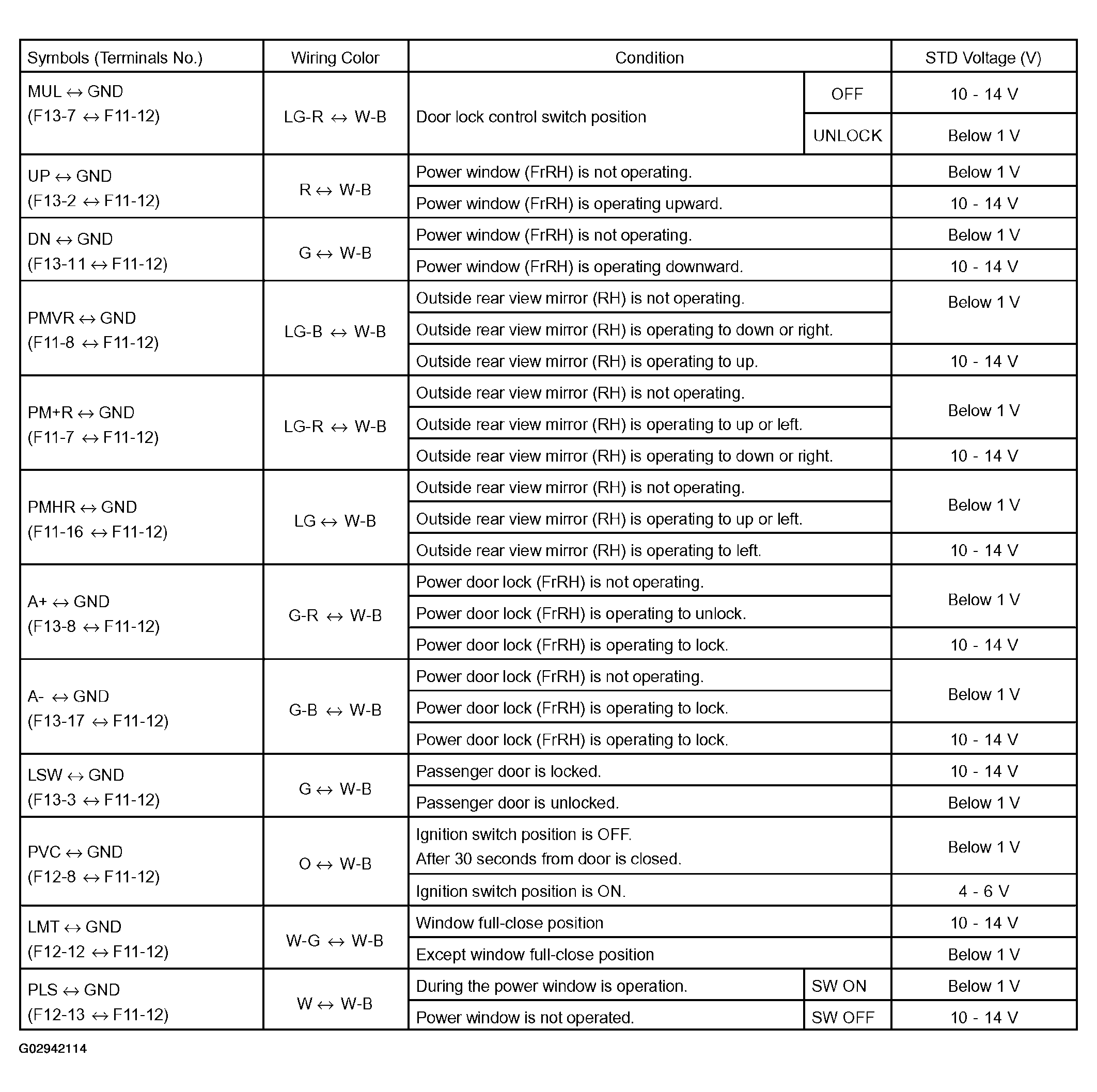

Fig 3: Identifying ECU Connector Terminals, Condition, STD Voltage Table (2 Of 2)
G02942114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
