Passenger Door Control System - Diagnostics
>>
Parts Location
Parts Location

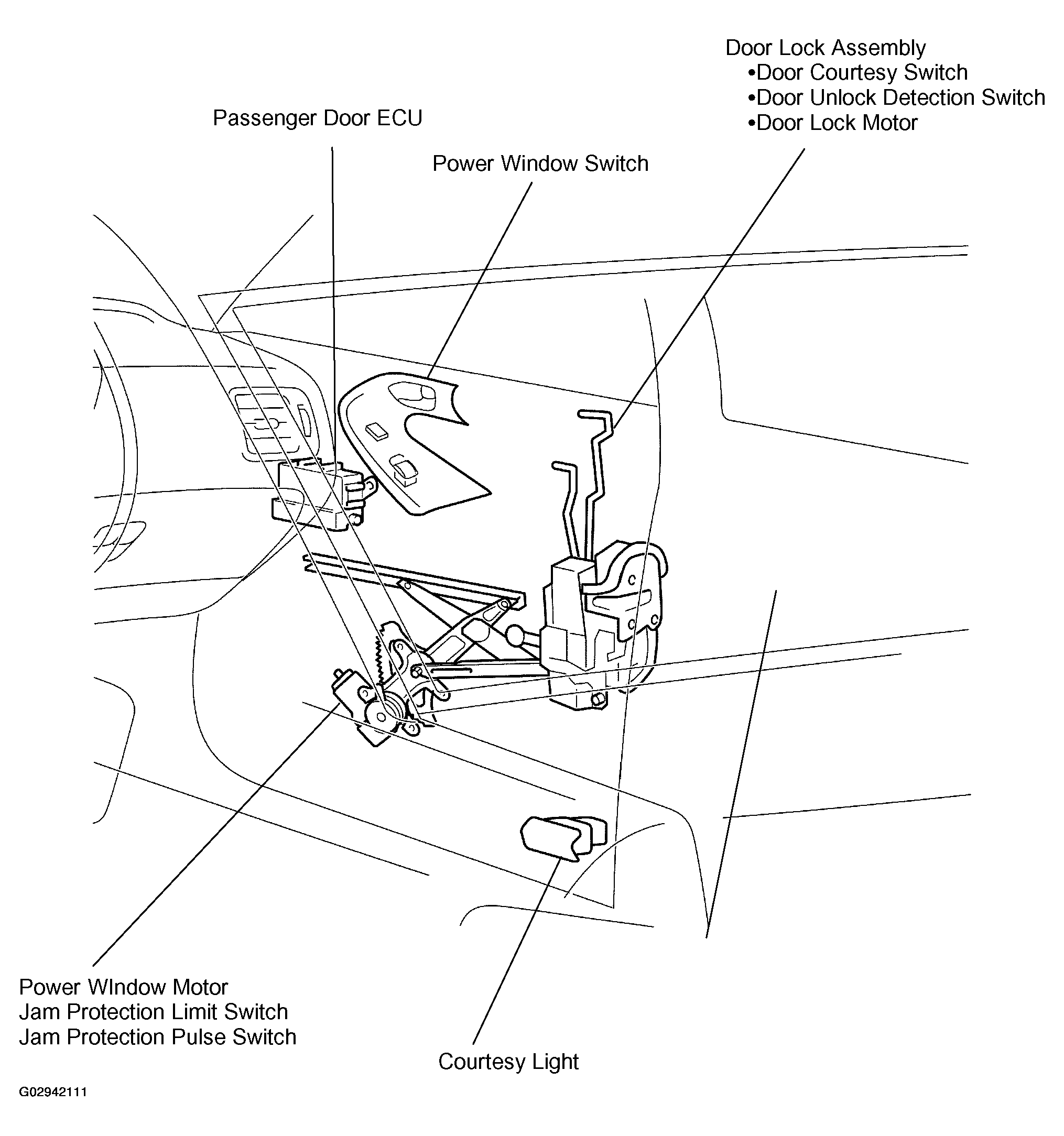

Fig 1: Locating Passenger Door Control System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
