Terminals Of Ecu

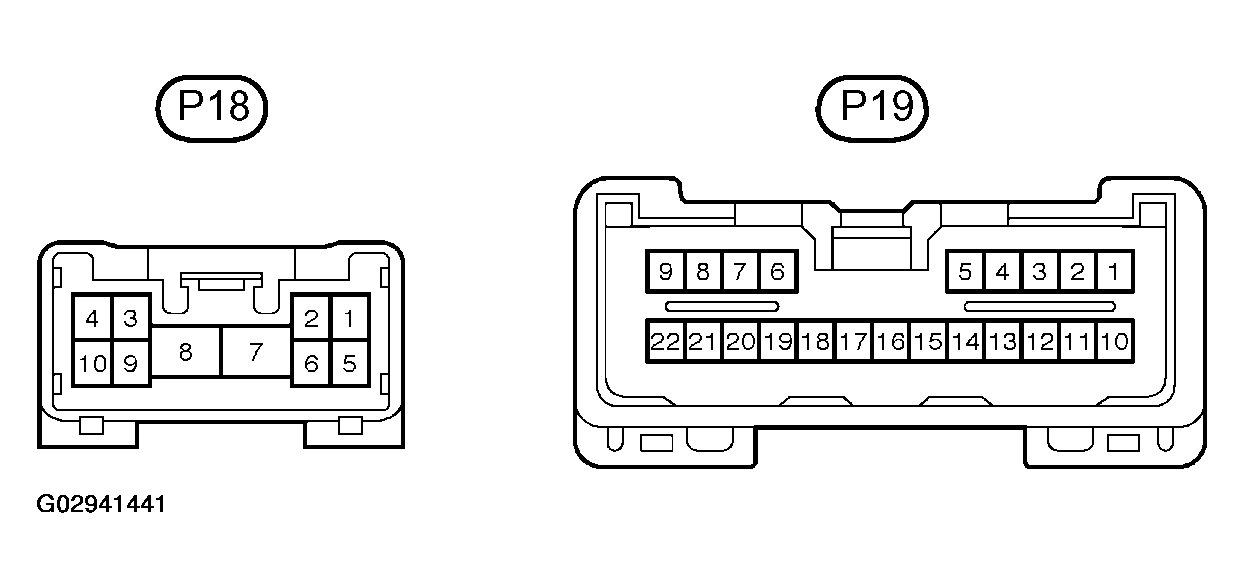

Fig 1: Identifying ECU Connector Terminals
G02941441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

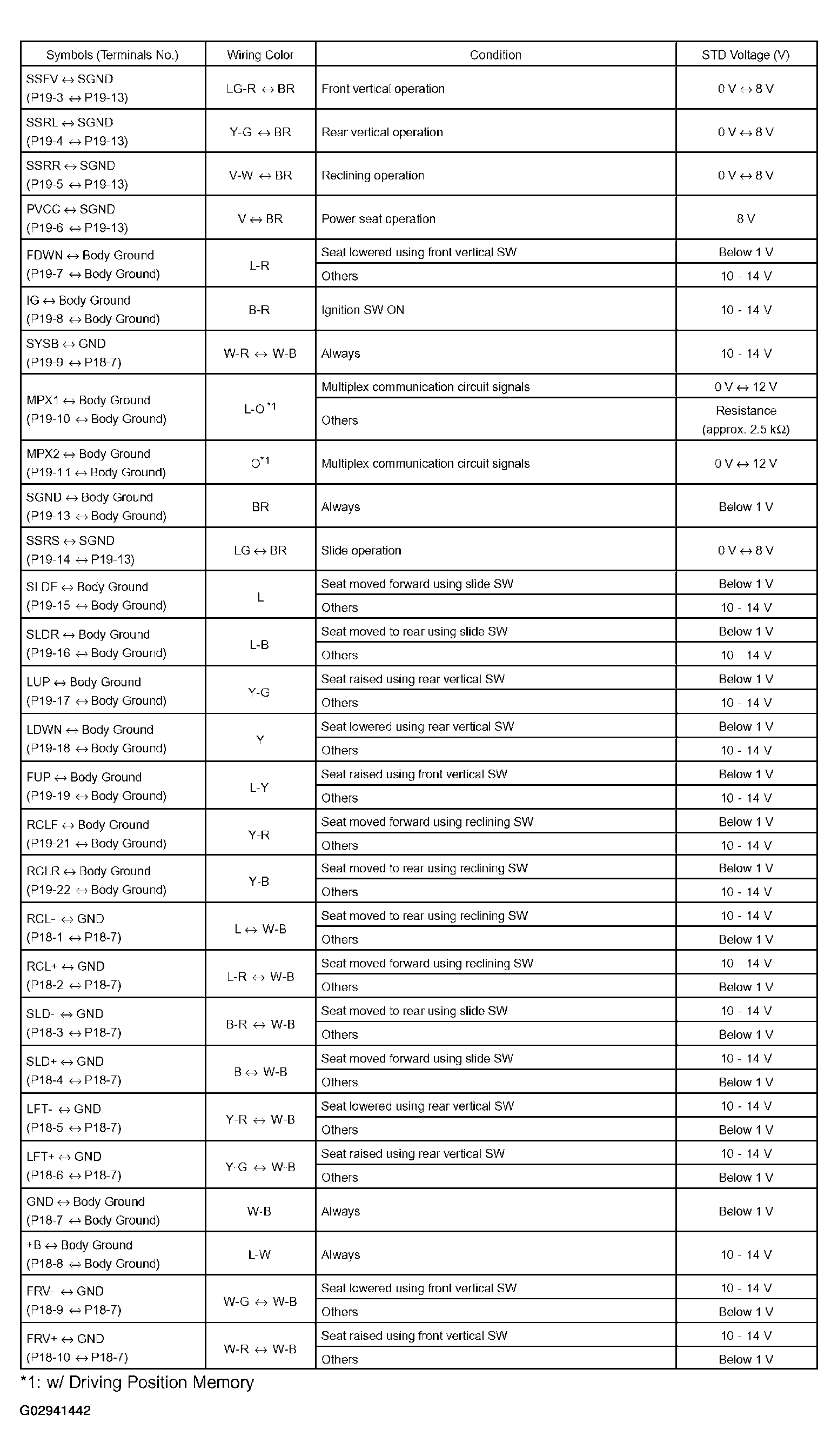

Fig 2: Identifying ECU Connector Terminals, Condition & Standard Voltage Table
G02941442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
