Front Seat: Components

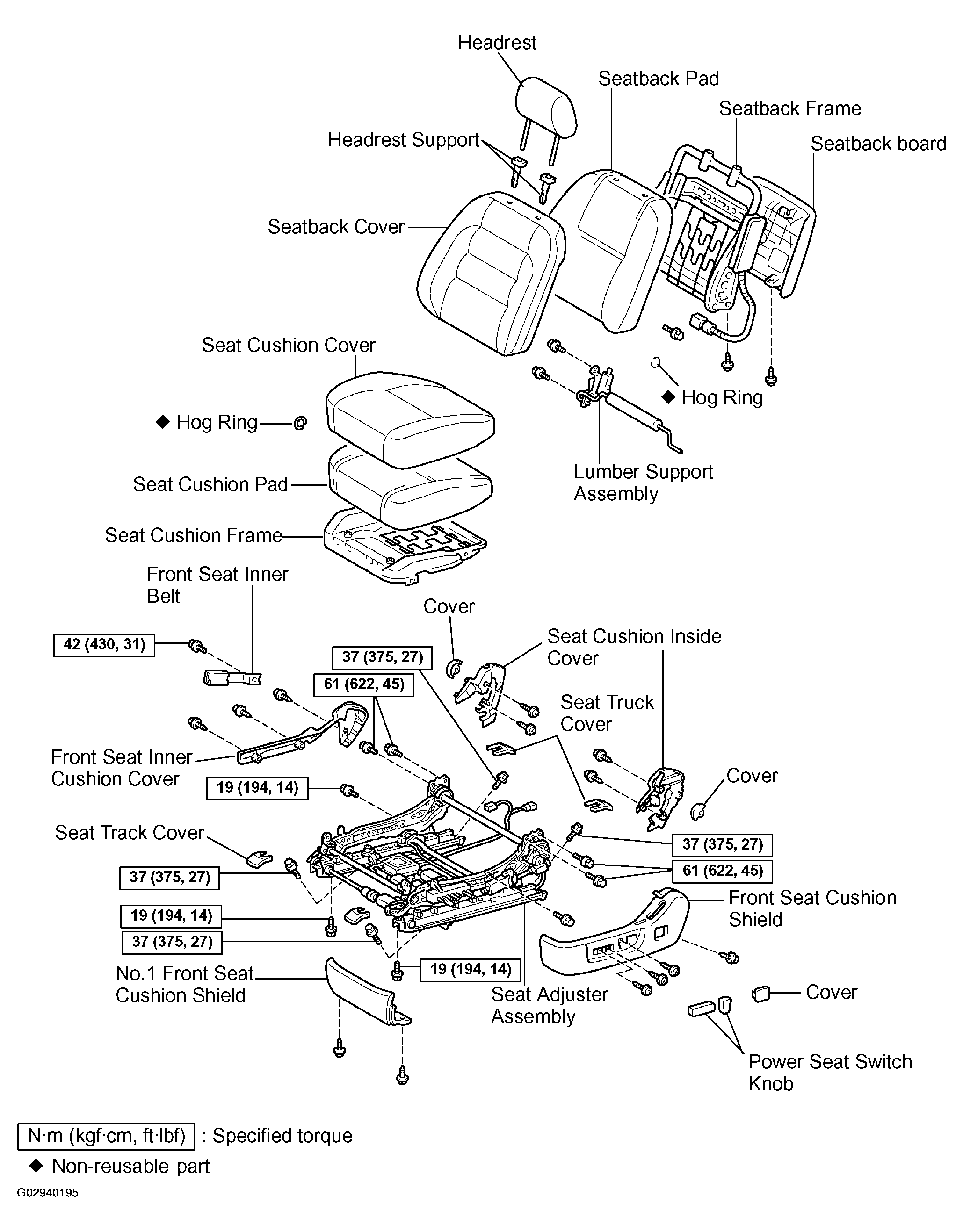

Fig 1: Exploded View Of Front Seat With Torque Specifications (1 Of 2)
G02940195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

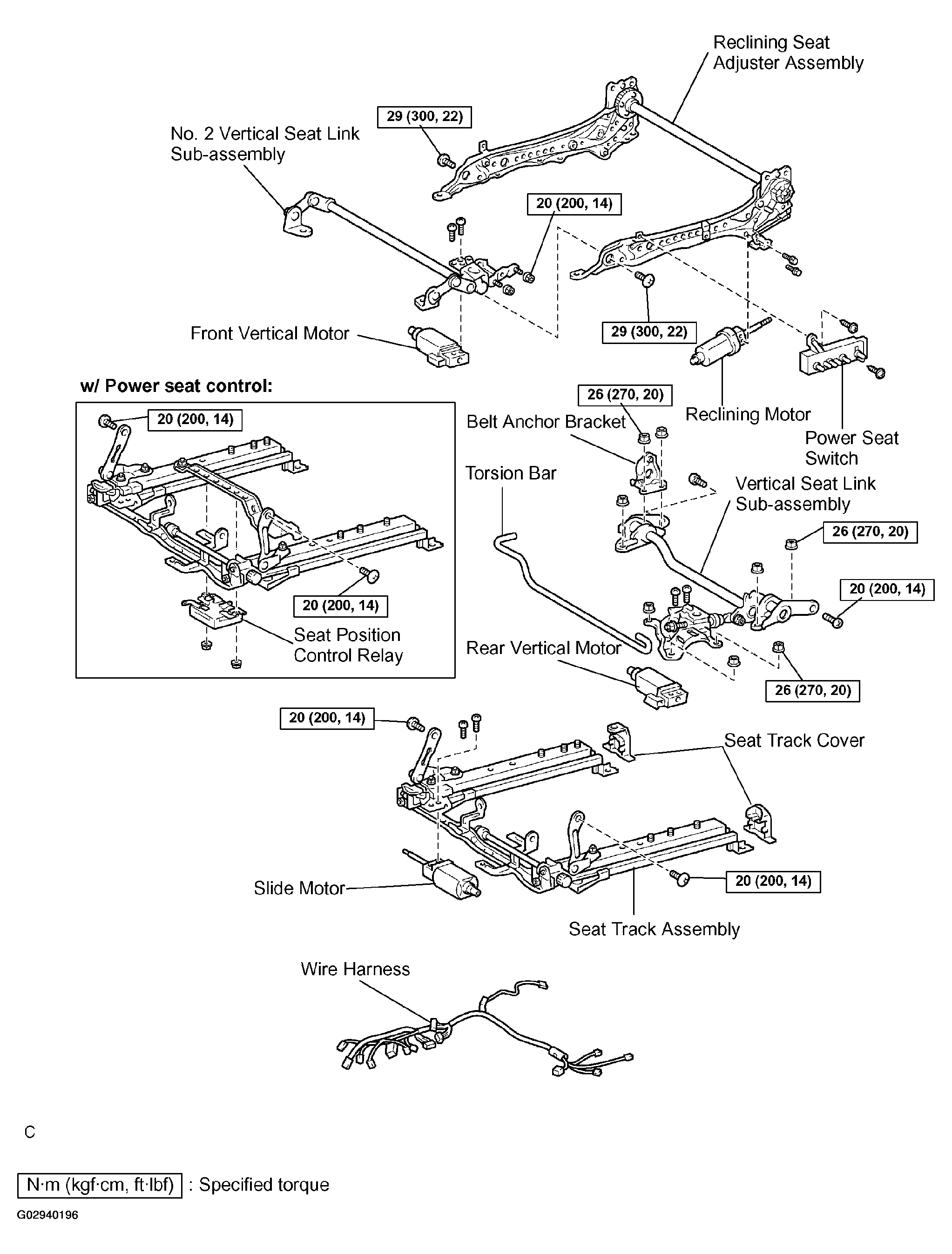

Fig 2: Exploded View Of Front Seat With Torque Specifications (2 Of 2)
G02940196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
