Roof Headlining: Components

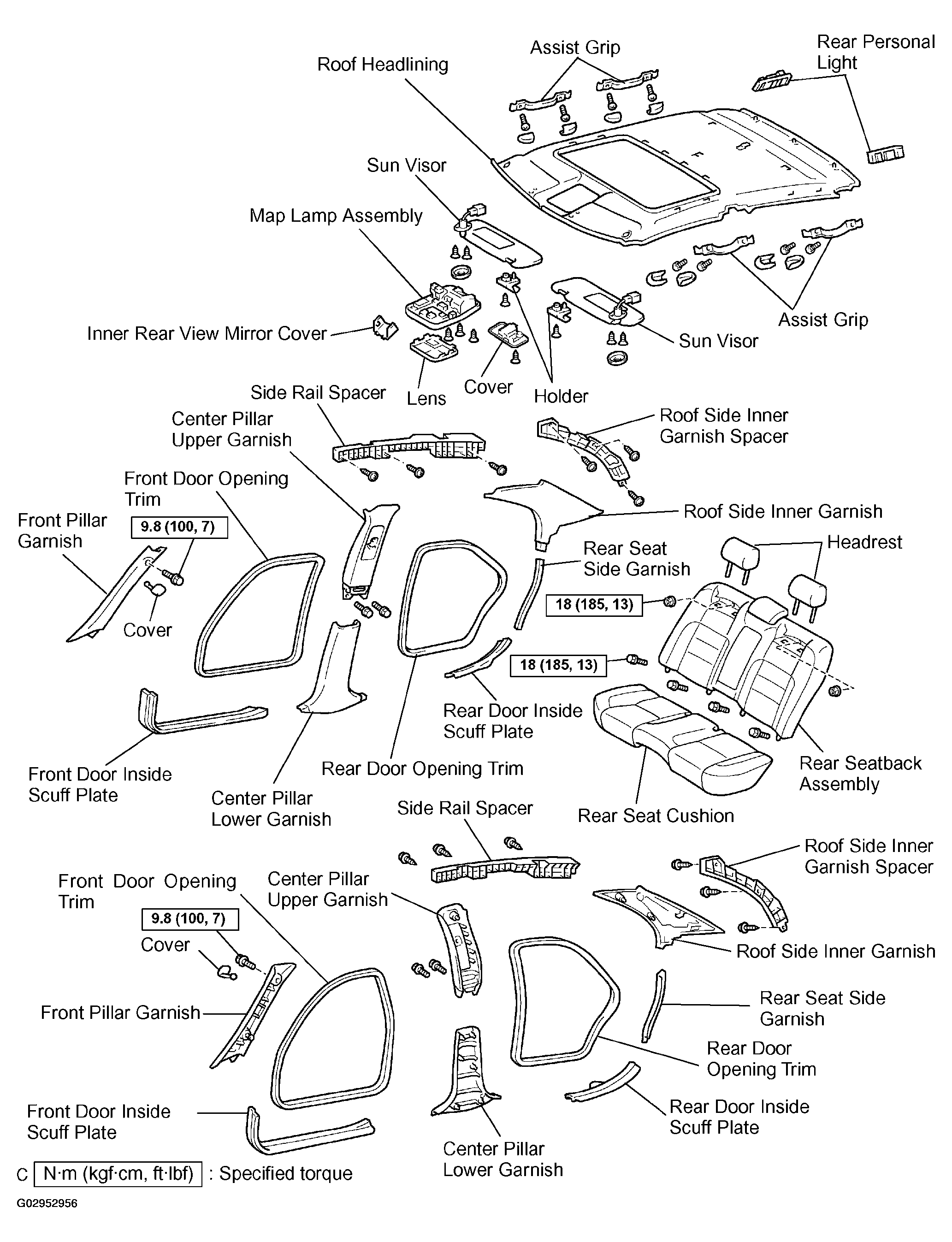

Fig 1: Identifying Components Of Roof Headlining

G02952956

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
