Home >> Lexus >> 2005 >> GS 430 >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Hood >> Components

Exterior/Interior Trim: Hood: Components

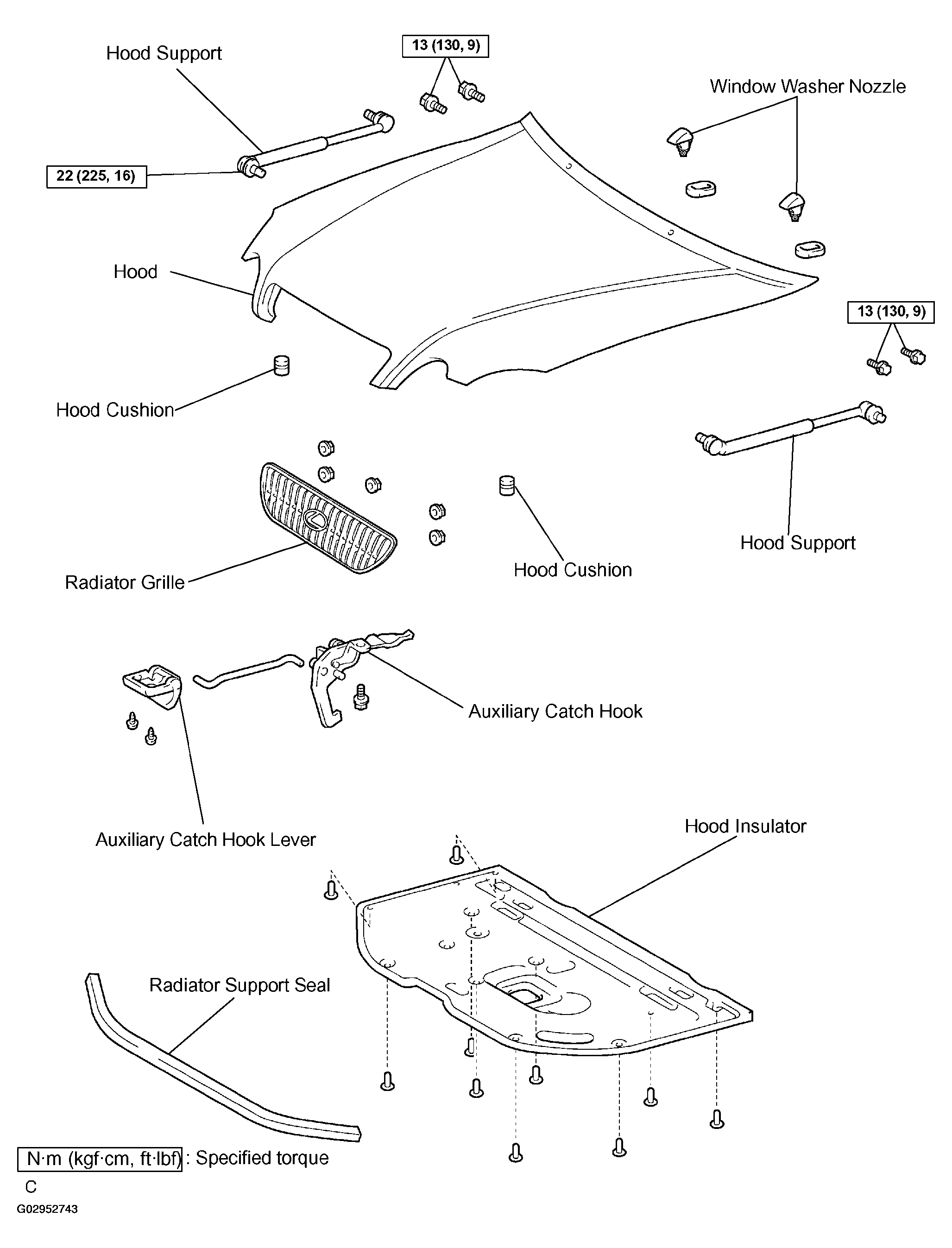

Fig 1: Identifying Components Of Hood

G02952743

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
