Memory switch circuit (W/ memory): Wiring Diagram

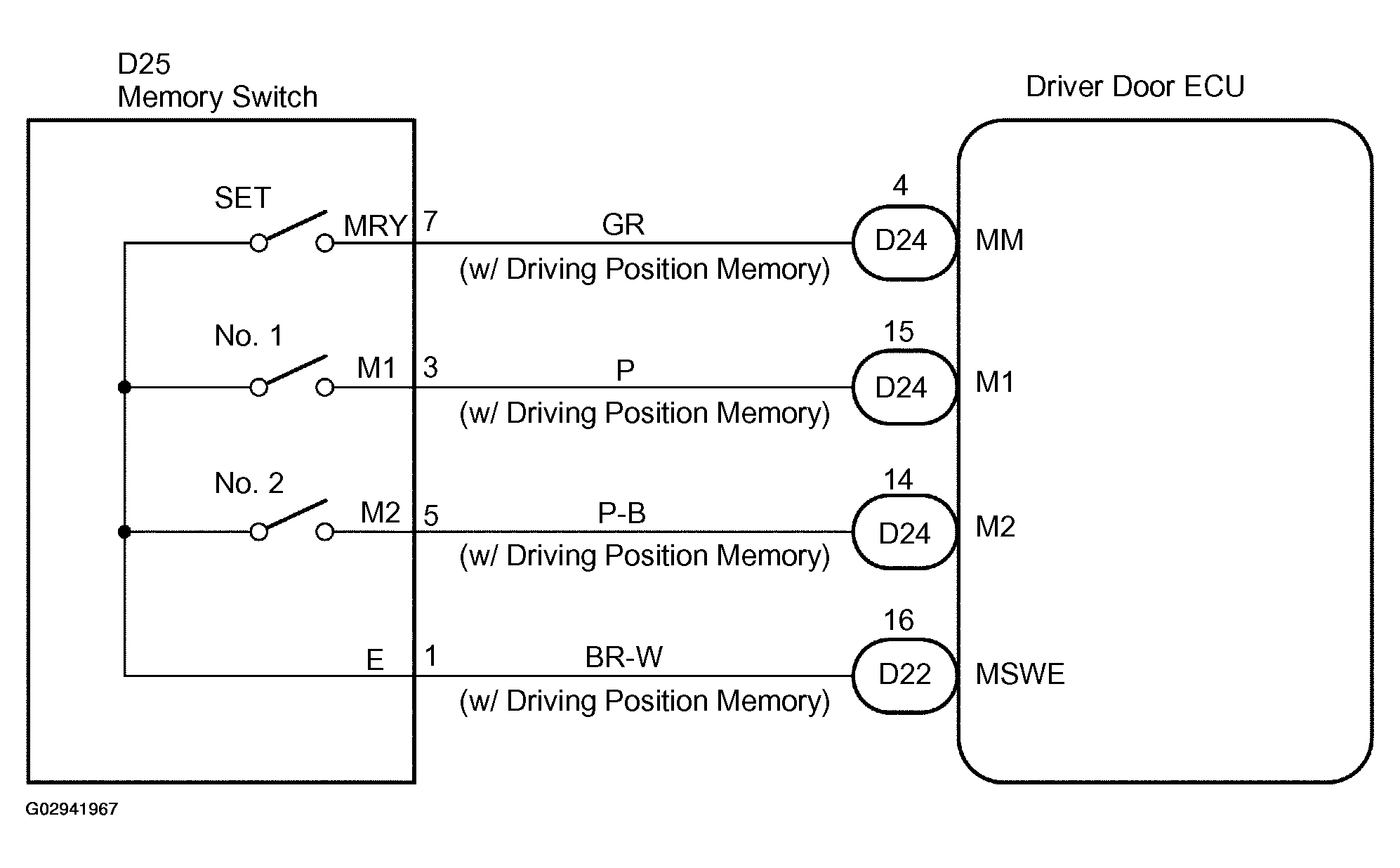

Fig 1: Wiring Diagram-Memory Switch Circuit (W/ Memory)

G02941967

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
