Driver Door Control System - Diagnostics
>>
Problem Symptoms Table
>>
Power Mirror Control System
Power Mirror Control System

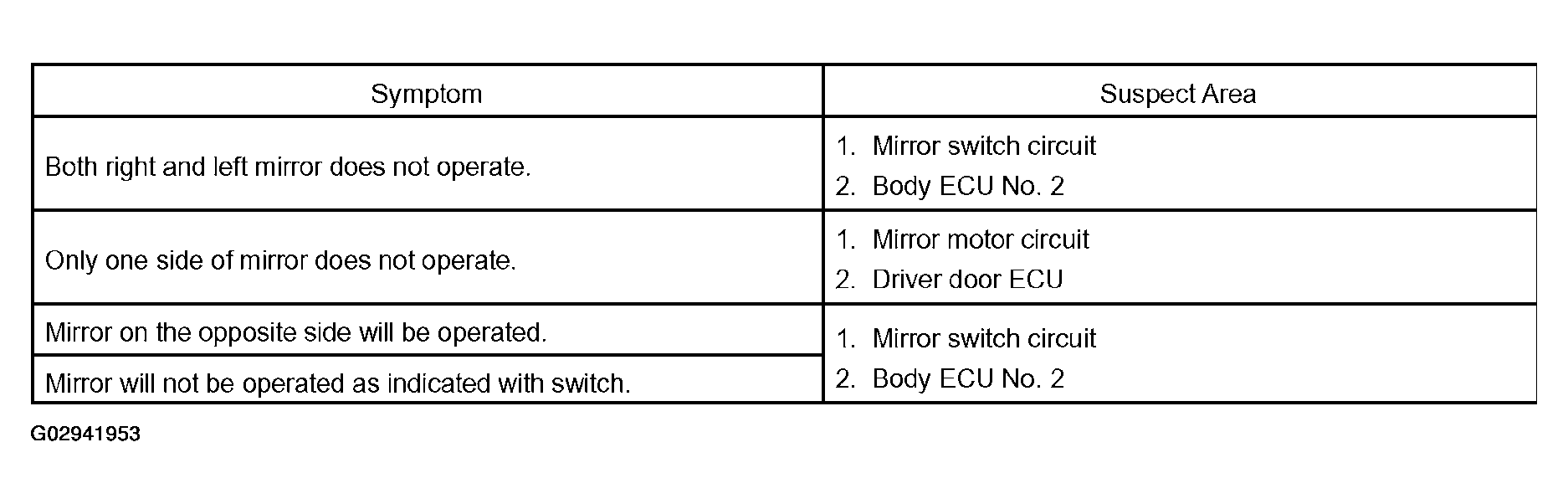

Fig 1: Power Mirror Control System Problem Symptom Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
