How To Determine Bolt Strength

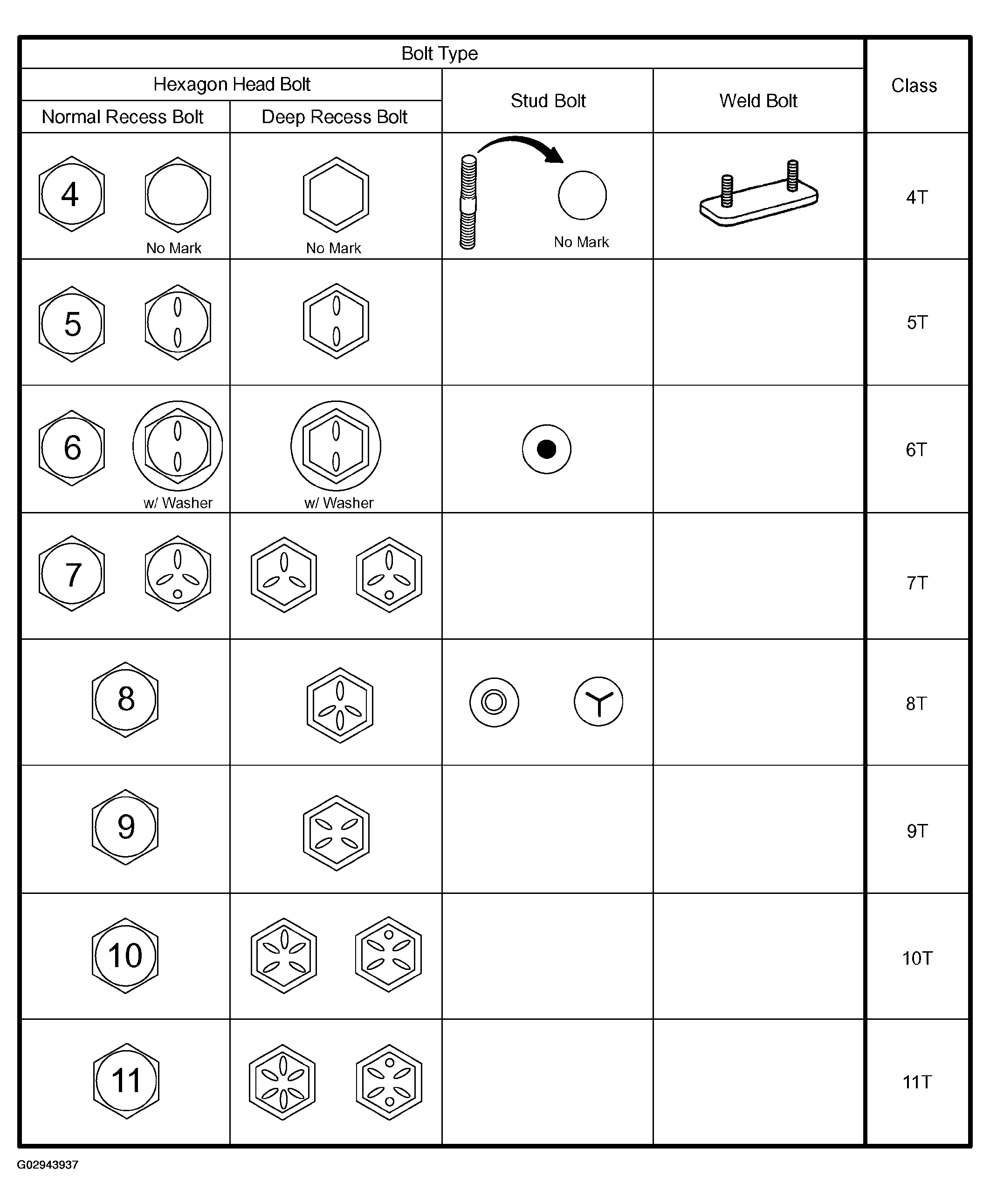

Fig 1: Bolt Strength Determining Chart
G02943937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
