VSV For Acoustic Control Induction System (ACIS): Components

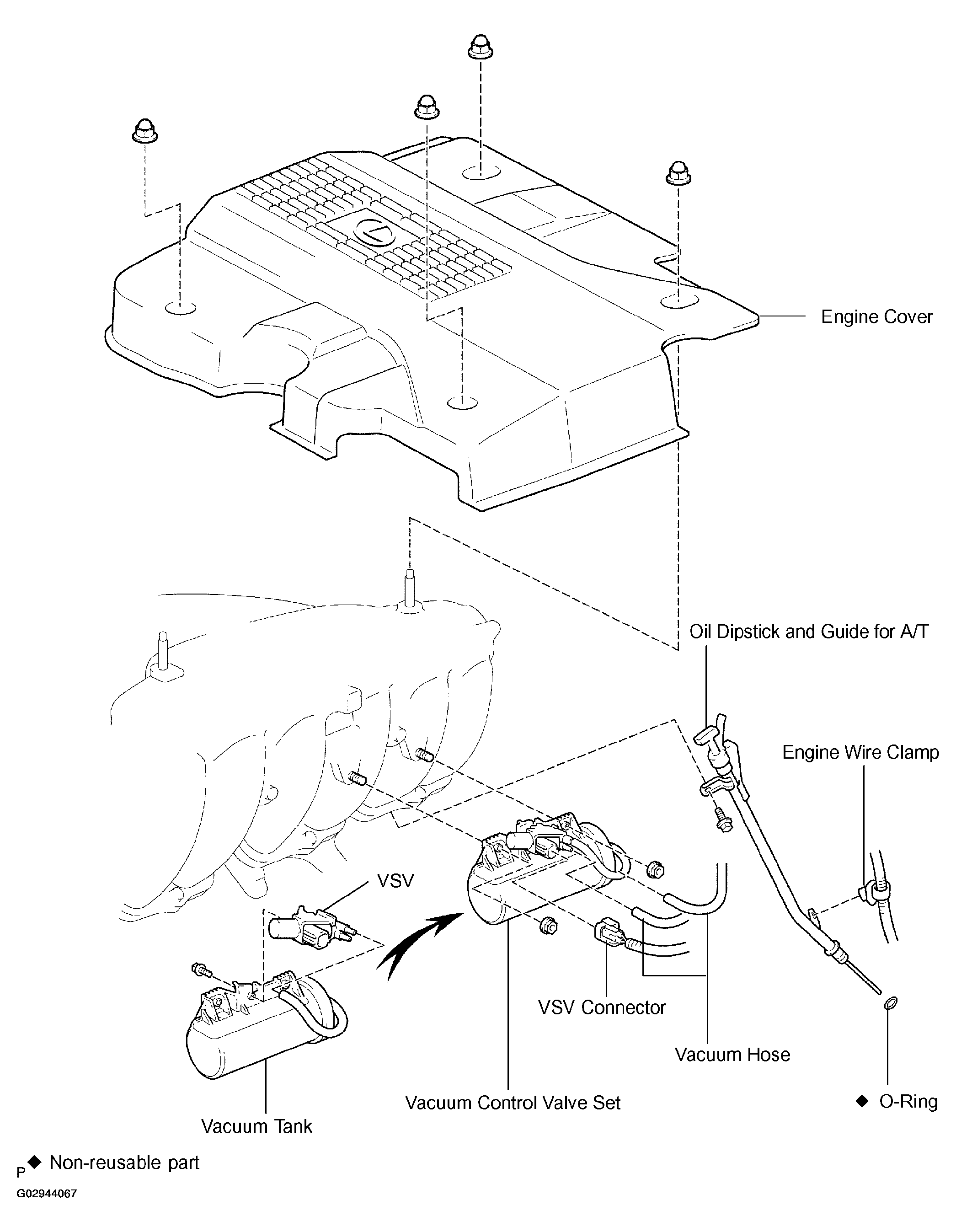

Fig 1: Identifying VSV For ACIS Components

G02944067

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
