Throttle Body: Components

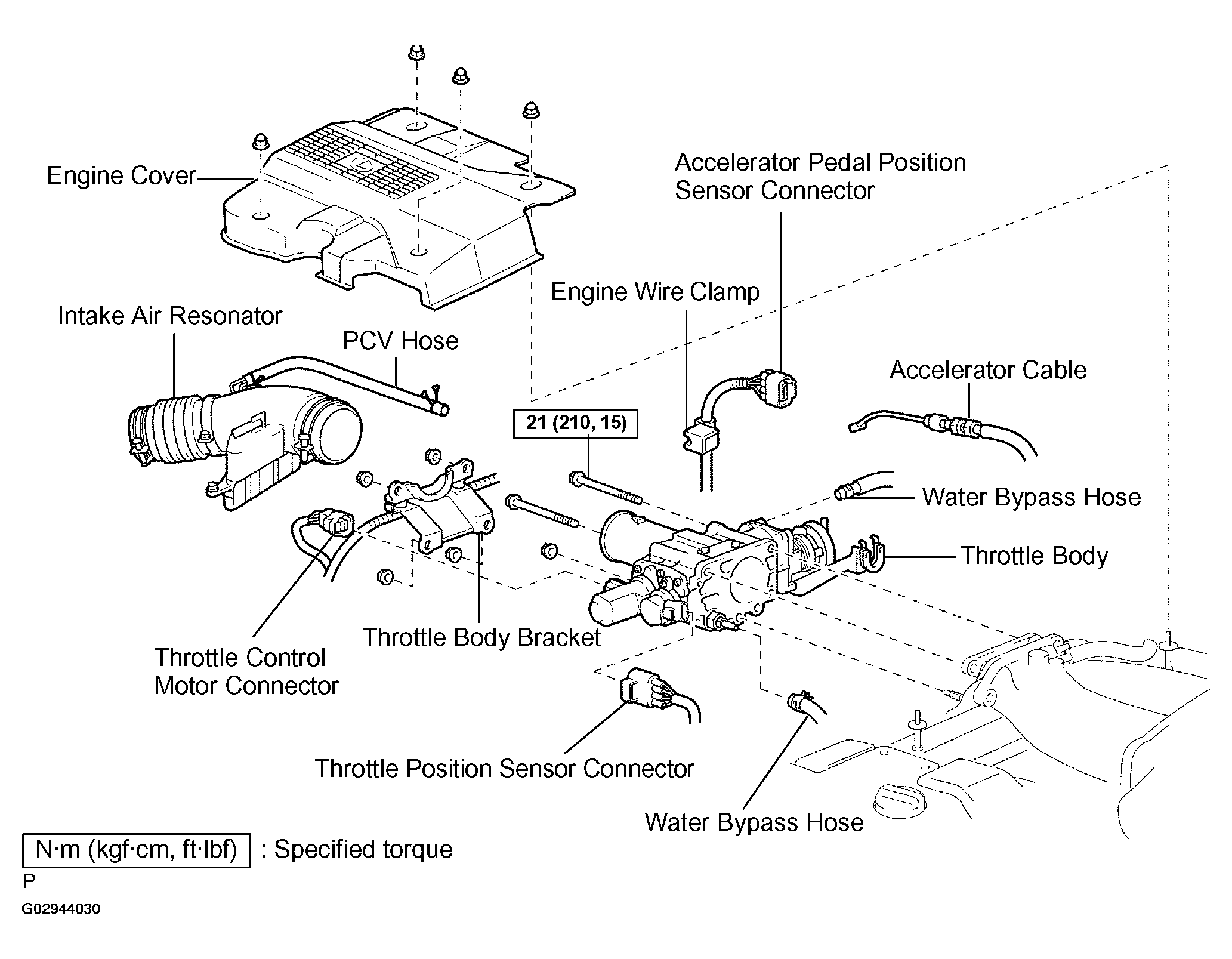

Fig 1: Throttle Body Replacement Components With Torque Specifications (1 Of 2)
G02944030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

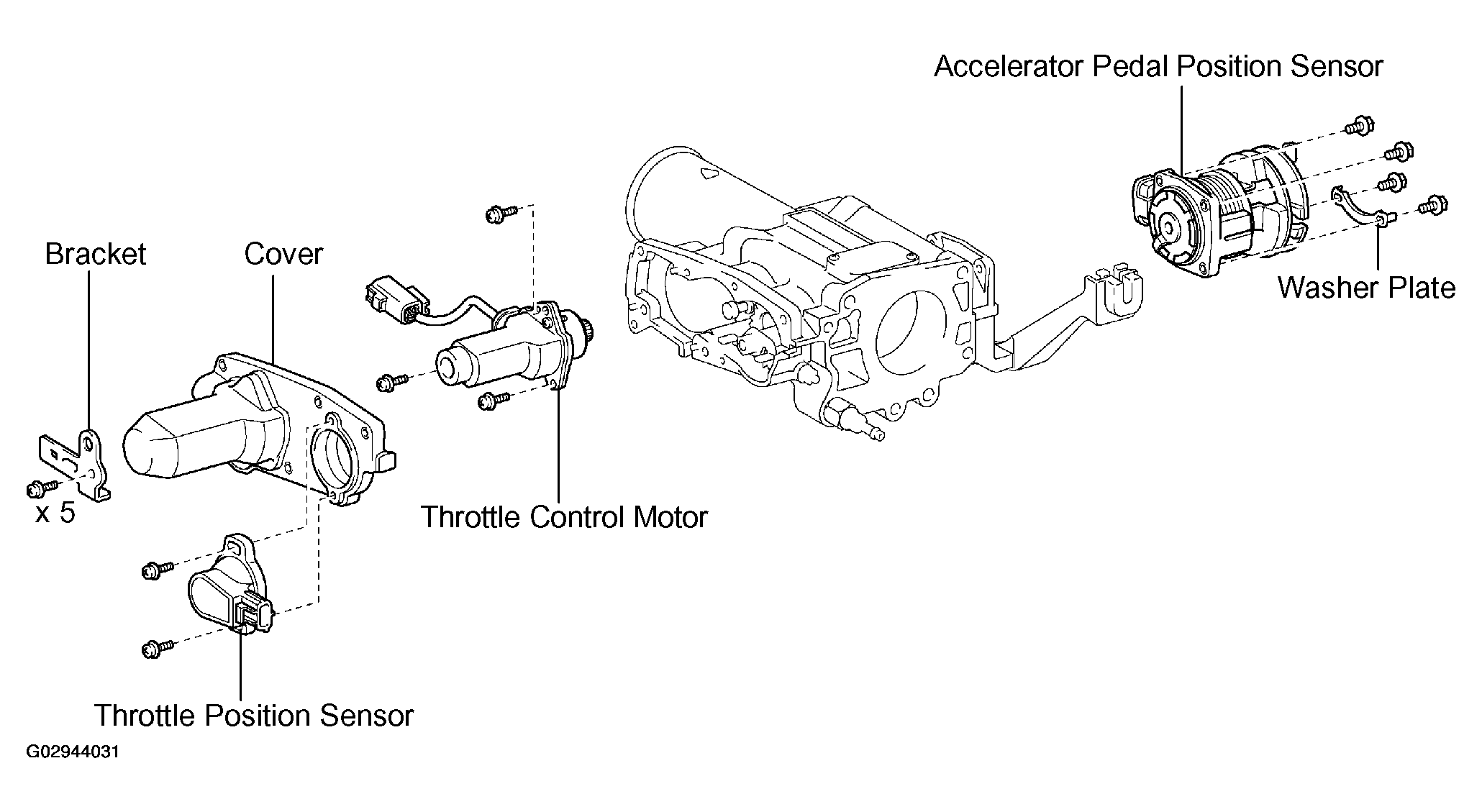

Fig 2: Identifying Throttle Body Components (2 Of 2)
G02944031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
