Home >> Lexus >> 2005 >> GS 300 >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> SFI (2JZ-GE) >> Injector >> Components

SFI (2JZ-GE): Injector: Components

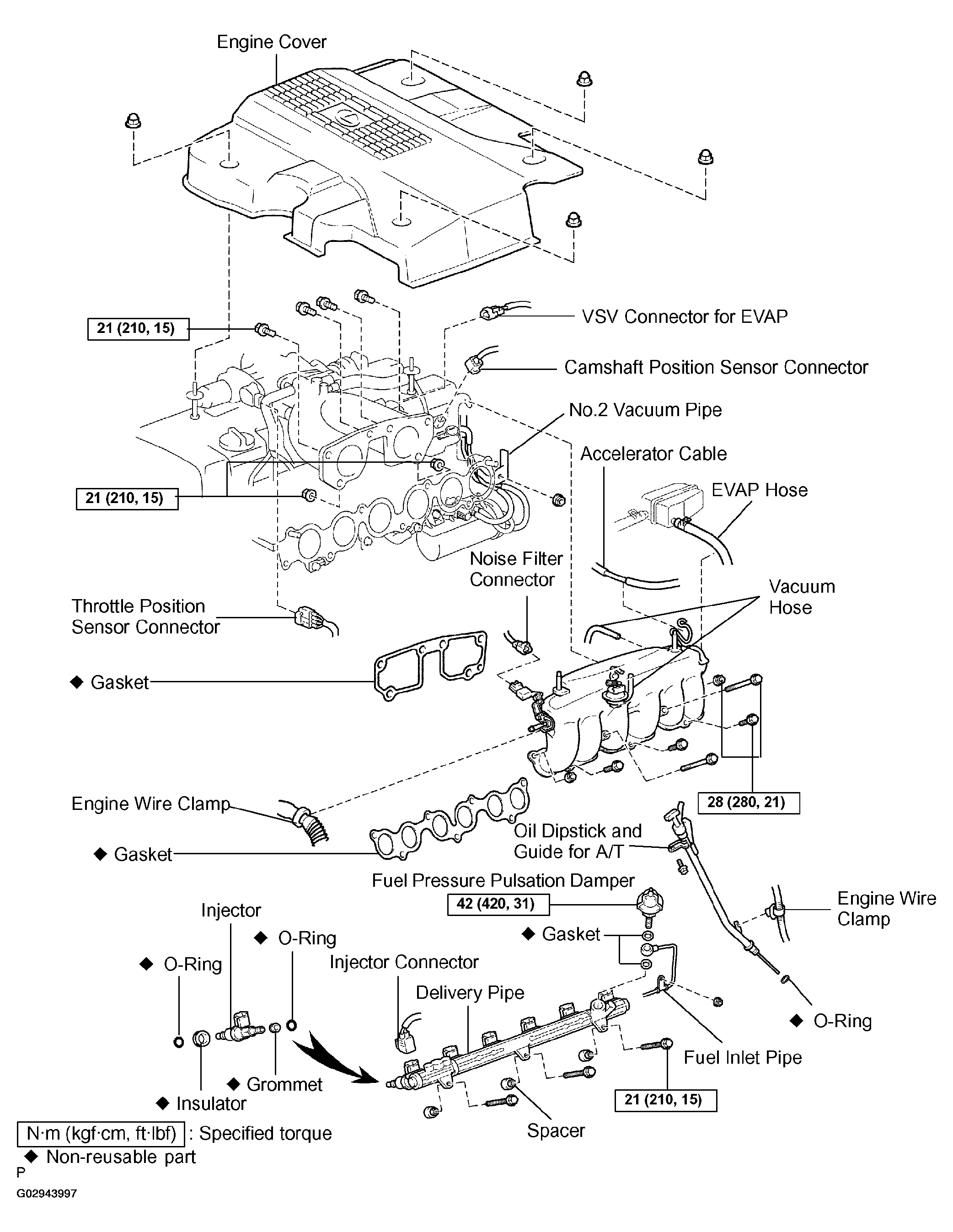

Fig 1: Injector Replacement Components With Torque Specifications

G02943997

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
