Heated Oxygen Sensor: Components

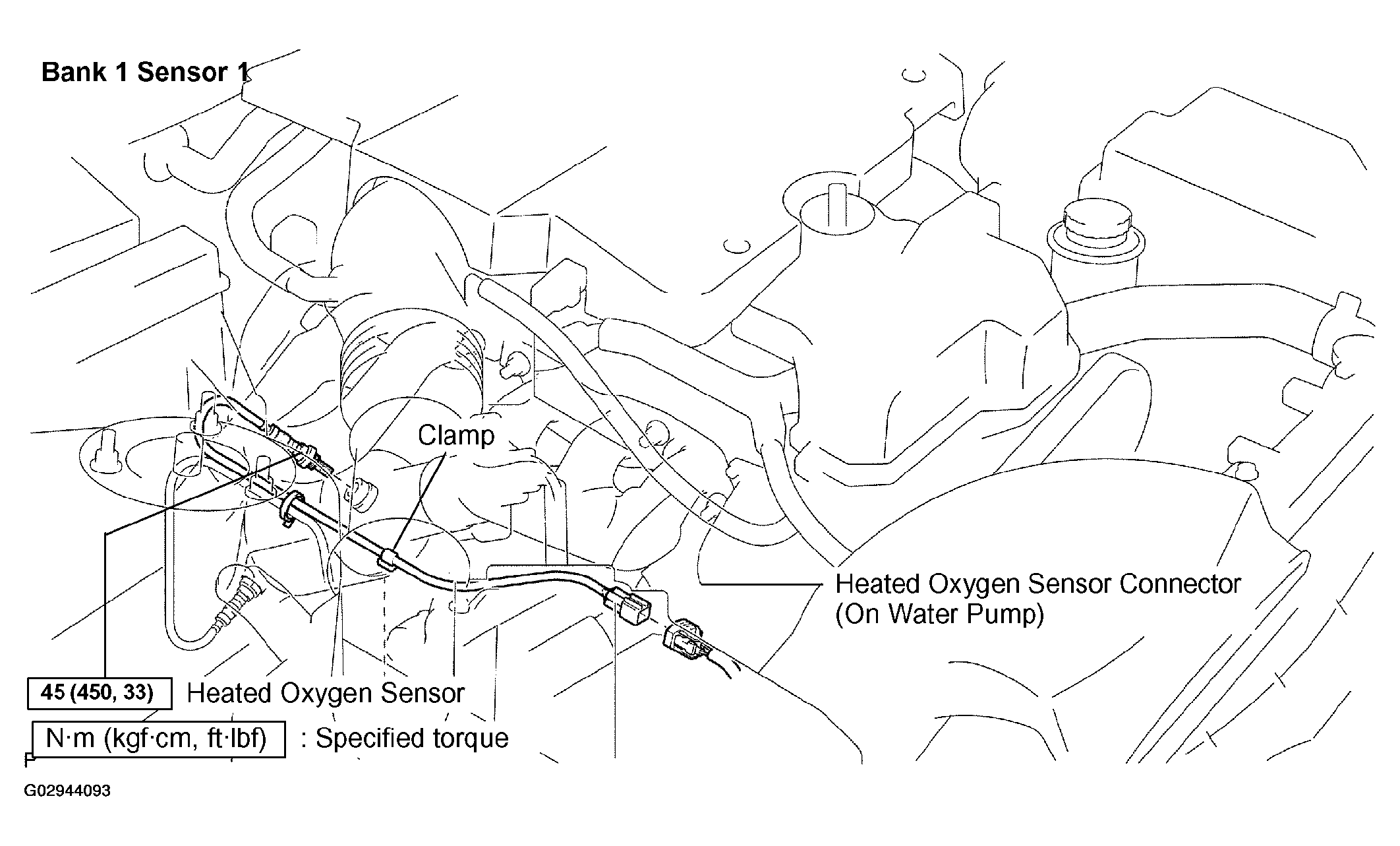

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications (Bank 1 Sensor 1) (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

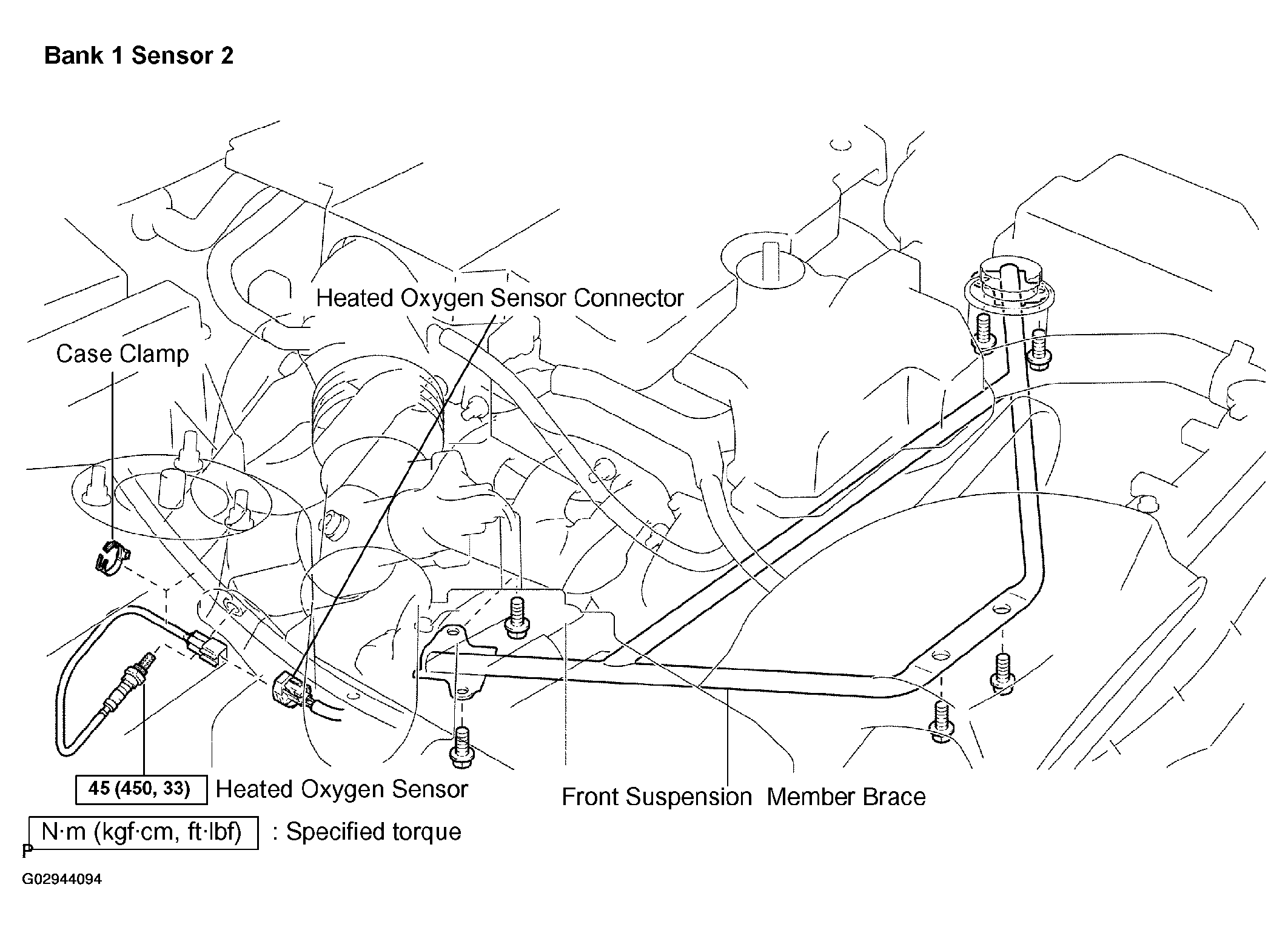

Fig 2: Heated Oxygen Sensor Replacement Components With Torque Specifications (Bank 1 Sensor 2) (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

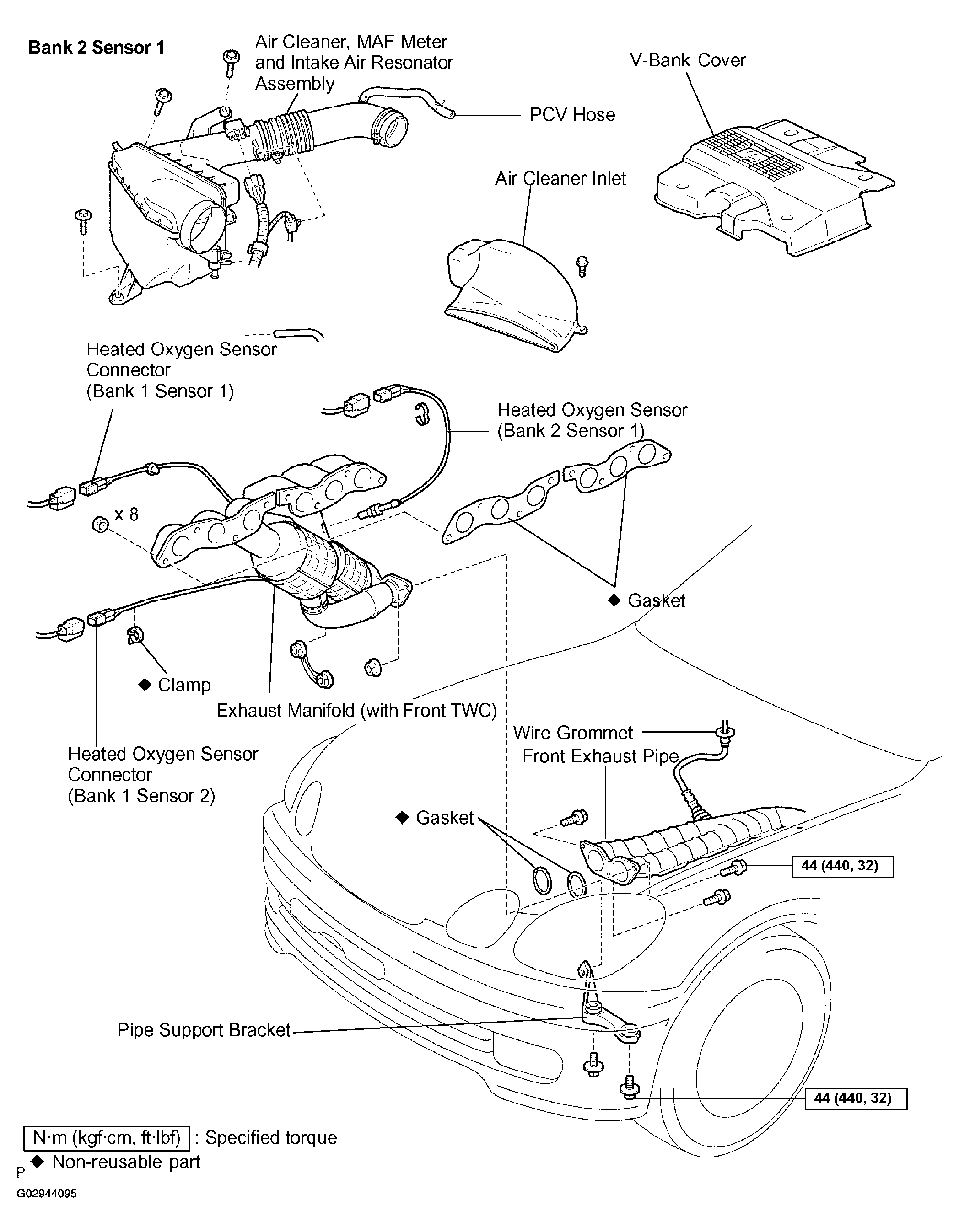

Fig 3: Heated Oxygen Sensor Replacement Components With Torque Specifications (Bank 2 Sensor 1) (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

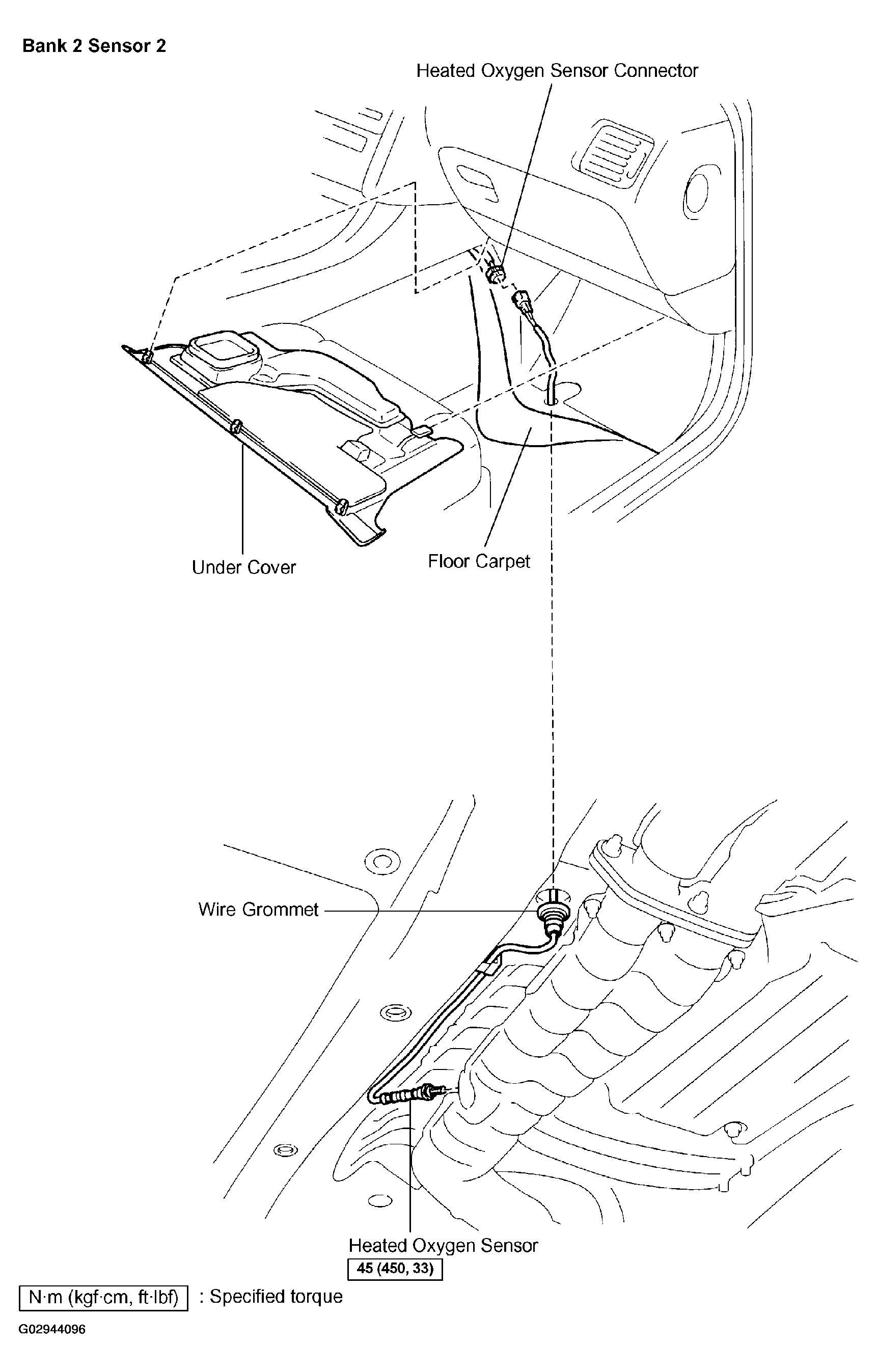

Fig 4: Heated Oxygen Sensor Replacement Components With Torque Specifications (Bank 2 Sensor 2) (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
