Fuel Tank And Line: Components

CAUTION:
  • Always use new gaskets when replacing the fuel tank or component parts.
  • Apply the proper torque to all parts tightened

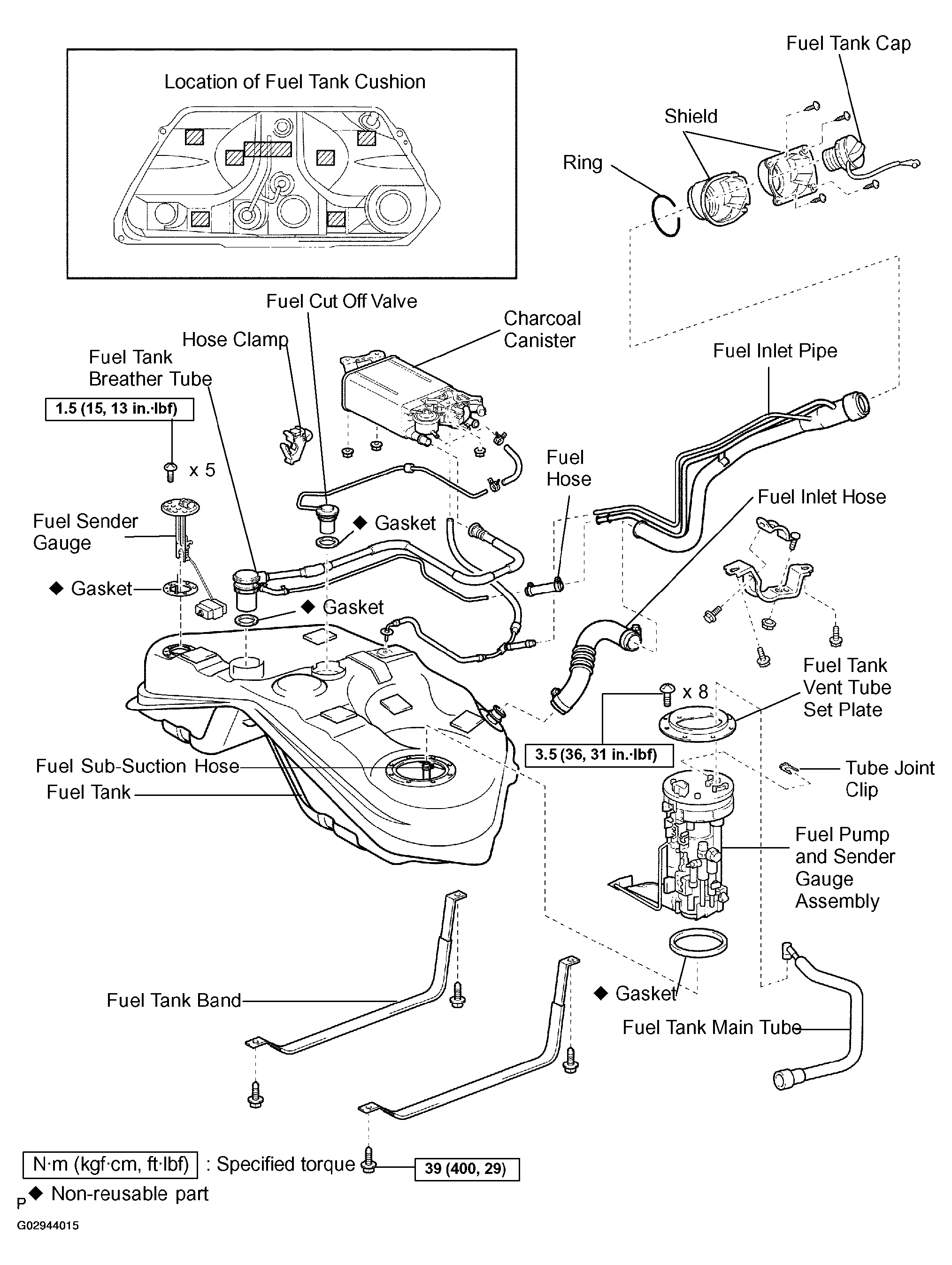

    Fig 1: Fuel Tank And Line Replacement Components With Torque Specifications
    G02944015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
