Fuel Pump: Installation

INSTALL FUEL PUMP
1. Apply a light coat of gasoline to the O-ring.
2. Push in the fuel pump.
3. Connect the fuel pump connector.

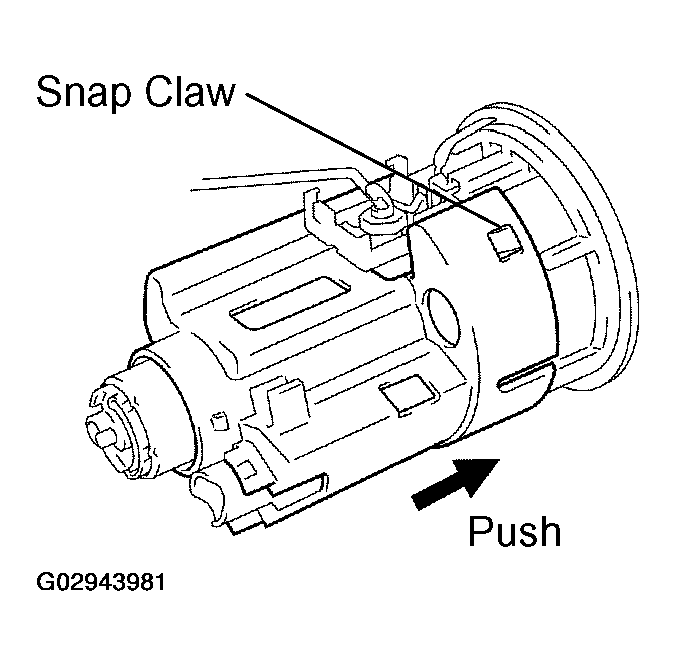

  Fig 1: Pushing Fuel Pump Onto Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL SUCTION FILTER
Install the suction filter with a new clip.

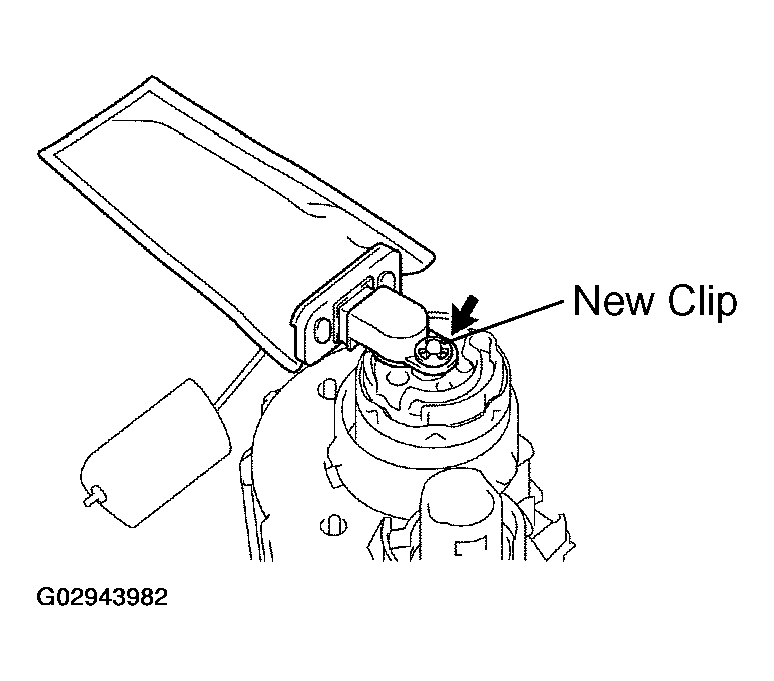

Fig 2: Installing Suction Filter With NEW Clip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL PRESSURE REGULATOR AND FUEL RETURN JET TUBE ASSEMBLY (See INSTALLATION )
INSTALL NO.2 FUEL SUCTION SUPPORT (See INSTALLATION )
INSTALL FUEL PUMP AND SENDER GAUGE ASSEMBLY TO FUEL TANK
1. Install a new gasket to the fuel suction plate.
2. Connect the fuel sub suction hose to the fuel return jet tube.

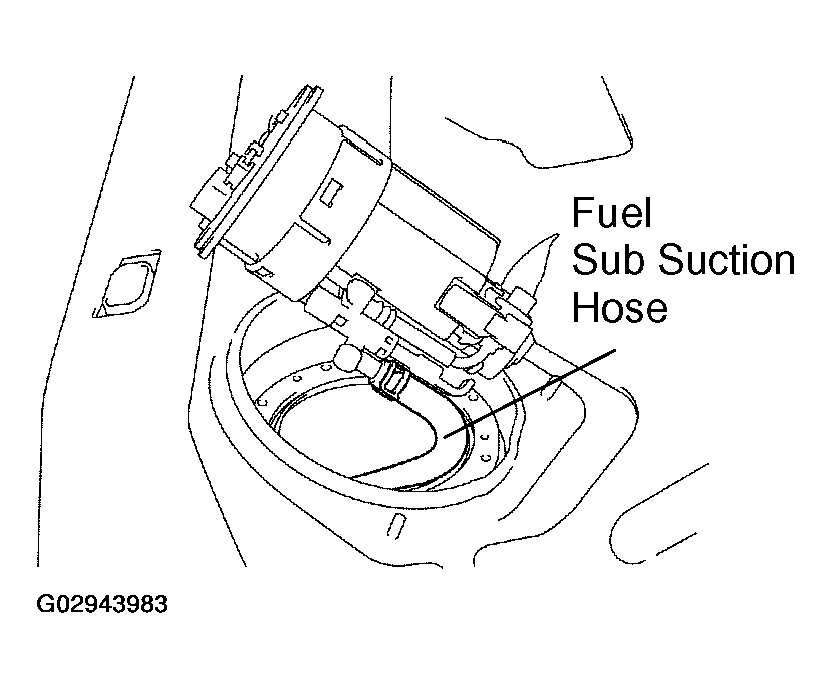

  Fig 3: Locating Fuel Sub Suction Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the fuel pump and sender gauge assembly to the fuel tank.
4. Install the fuel tank vent tube set plate with the 8 bolts.
  Torque: 3.5 N.m (36 kgf.cm, 31 in.lbf)

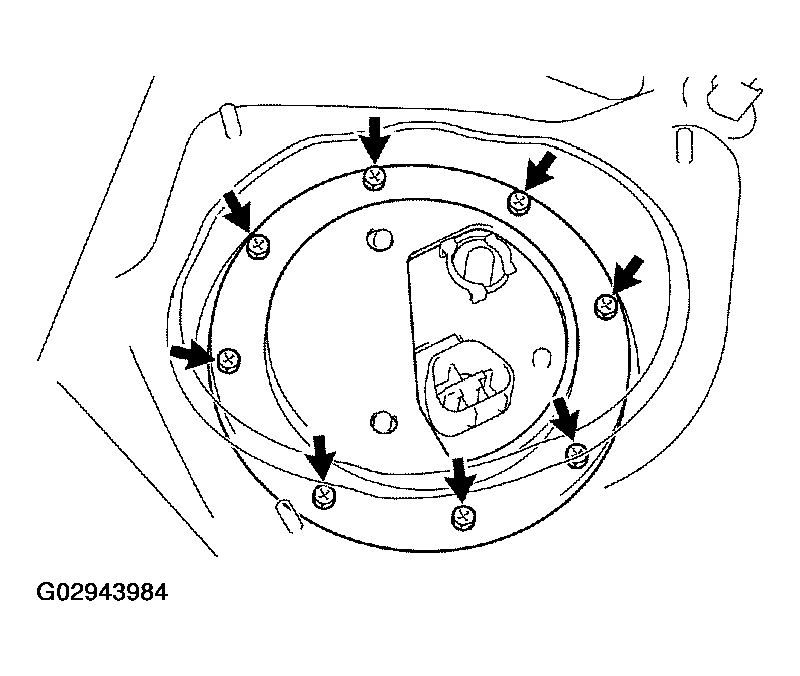

  Fig 4: Removing 8 Bolts & Fuel Tank Vent Tube Set Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT FUEL TANK MAIN TUBE (FUEL TUBE CONNECTOR) TO FUEL SUCTION PLATE
1. Attach the fuel tube connector to the port of the fuel suction plate.
2. Install the tube joint clip.
CONNECT FUEL PUMP & SENDER GAUGE CONNECTOR
CHECK FOR FUEL LEAKS (See SFI SYSTEM )

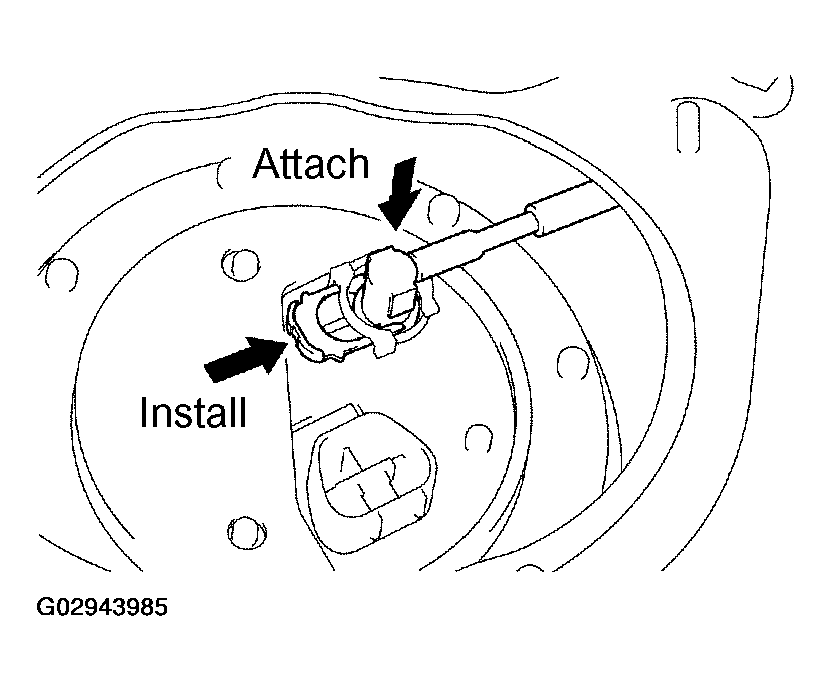

Fig 5: Installing Tube Joint Clip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FLOOR SERVICE HOLE COVER
Install the service hole cover with the 3 cap nuts.

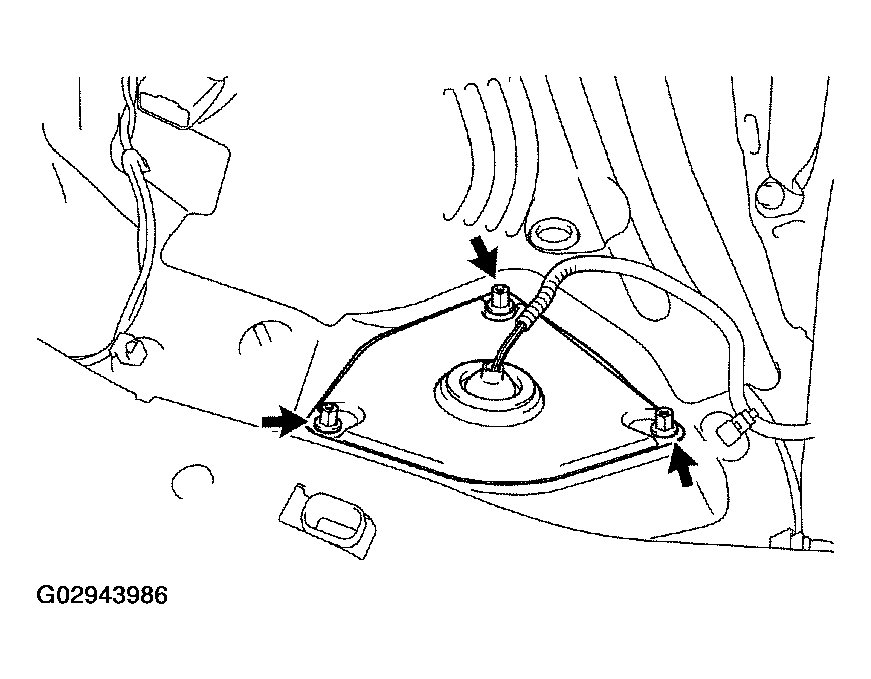

Fig 6: Installing Service Hole Cover With 3 Cap Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT CUSHION
