Fuel Pump: Components

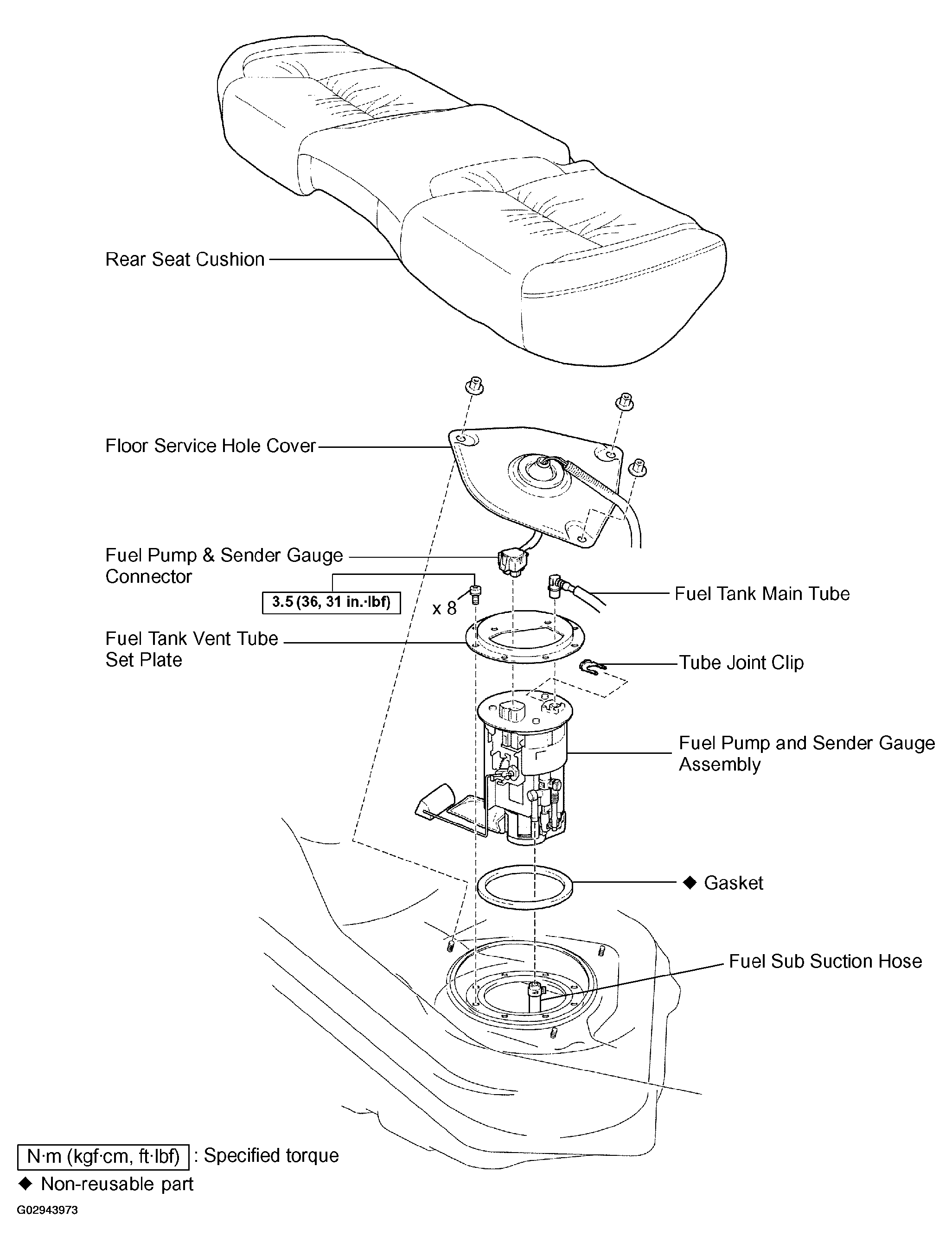

Fig 1: Fuel Pump Replacement Components With Torque Specifications (1 Of 2)
G02943973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Fuel Pump Components (2 Of 2)
G02943974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
