Fuel Pressure Regulator: Components

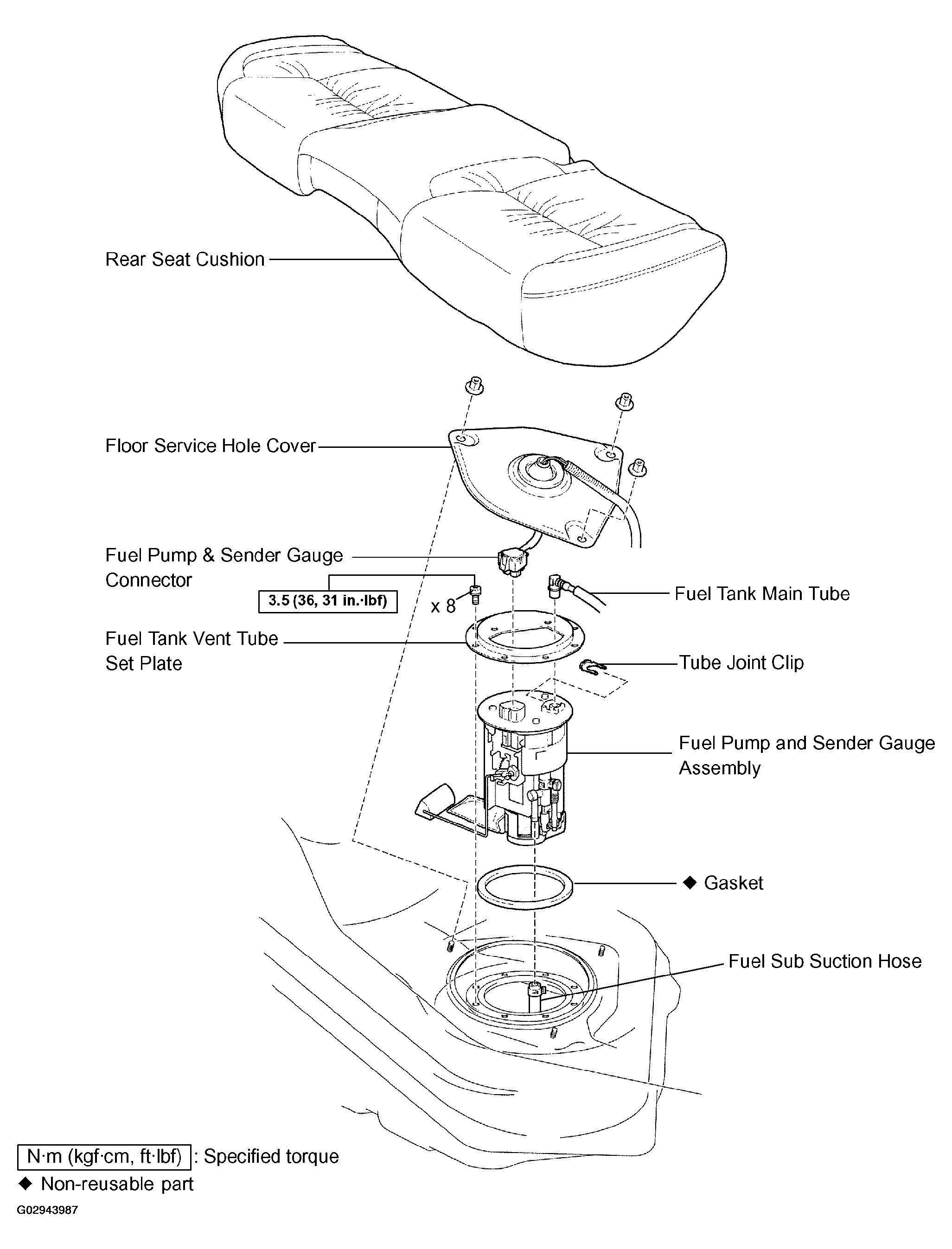

Fig 1: Fuel Pressure Regulator Replacement Components With Torque Specifications (1 Of 2)
G02943987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

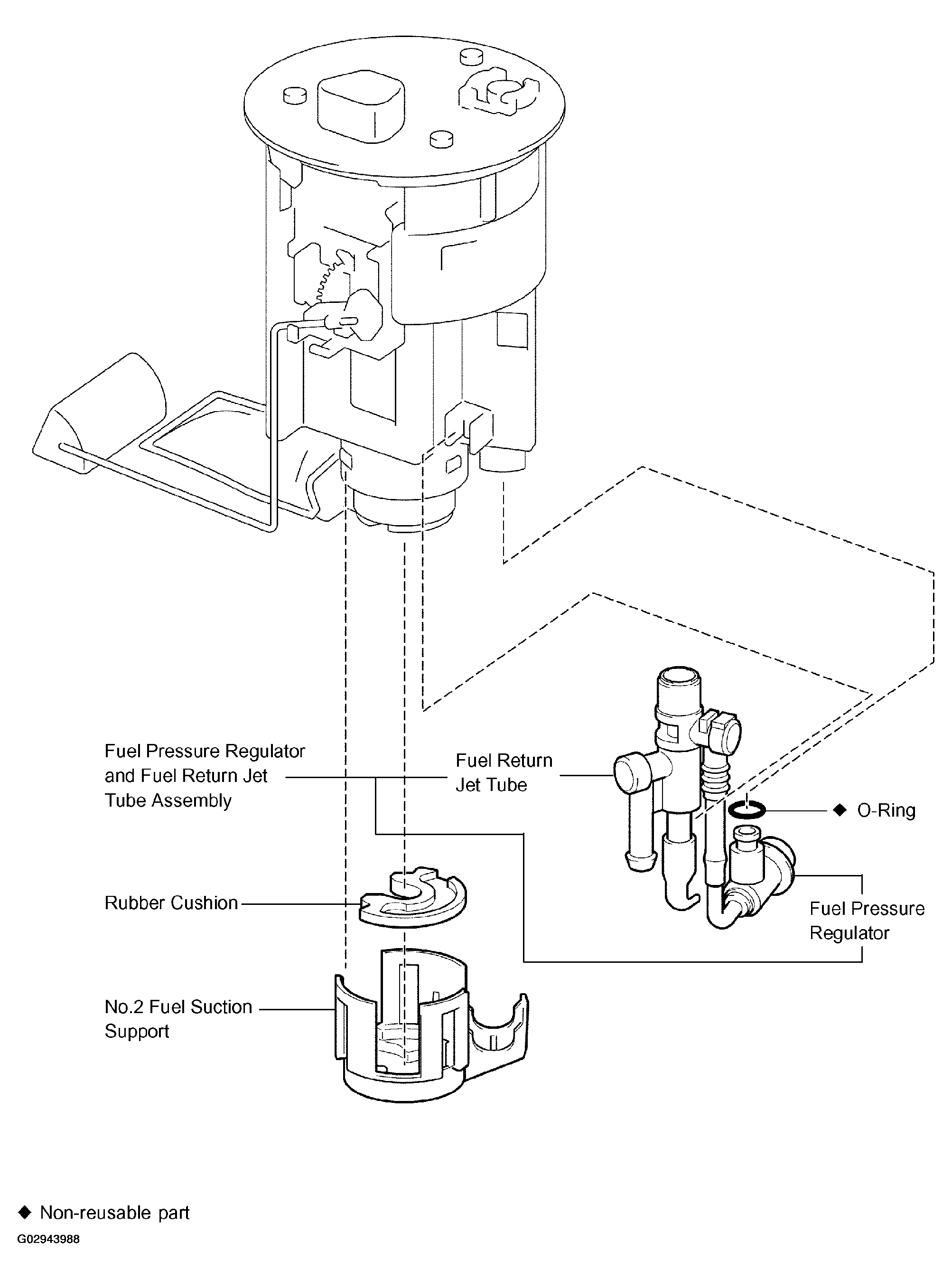

Fig 2: Identifying Fuel Pressure Regulator Components (2 Of 2)
G02943988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
