Diagnostic Trouble Code Chart
NOTE:
When removing the part, turn the ignition switch OFF.
HINT:
- Using SST 09843-18020, connect the terminals TC and E1 of DLC1.
- If any abnormality is not found when inspecting parts, inspect the ECU.

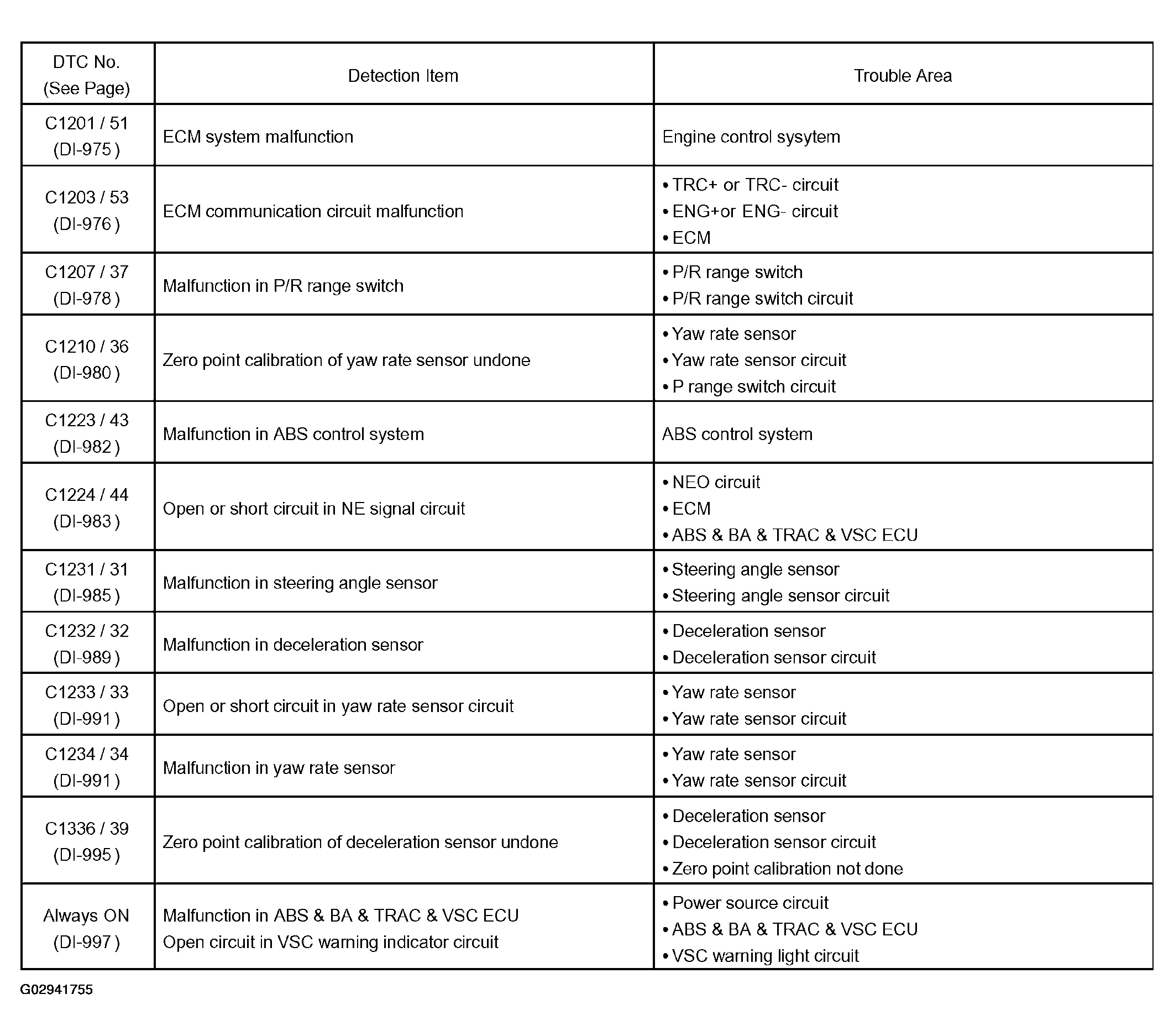

- If a malfunction code is displayed during the DTC check, check the circuit listed for that code in the table below.DIAGNOSTIC TROUBLE CODE CHART
DTC Description DTC C1201/51 Engine Control System Malfunction DTC C1203/53 ECM Communication Circuit Malfunction DTC C1207/37 P/R Range Switch Circuit DTC C1210/36 Zero Point Calibration of Yaw Rate Sensor Undone DTC C1223/43 ABS Control System Malfunction DTC C1224/44 NE Signal Circuit DTC C1231/31 Steering Angle Sensor Circuit DTC C1232/32 Deceleration Sensor Circuit DTC C1233/33, C1234/34 Yaw Rate Sensor Circuit DTC C1336/39 Zero Point Calibration of Deceleration Sensor Undone HINT:
There is a case that LEXUS hand-held tester cannot be used when VSC warning light is always on.
