Roof Headlining: Removal

REMOVE REAR SEAT CUSHION (See REMOVAL )
REMOVE REAR SEATBACK (See REMOVAL )
REMOVE FRONT DOOR INSIDE SCUFF PLATES
REMOVE REAR DOOR INSIDE SCUFF PLATES
REMOVE REAR SEAT SIDE GARNISHES
REMOVE FRONT DOOR OPENING TRIMS
REMOVE REAR DOOR OPENING TRIMS
REMOVE REAR PERSONAL LIGHTS
REMOVE ASSIST GRIPS
REMOVE SUN VISORS
REMOVE INNER REAR VIEW MIRROR COVER
REMOVE MAP LAMP ASSEMBLY
1. Using a screwdriver, remove the lens and cover.
  HINT:

  Tape the screwdriver tip before use.
2. Remove the 4 screws and map lamp assembly.
3. Disconnect the connectors.

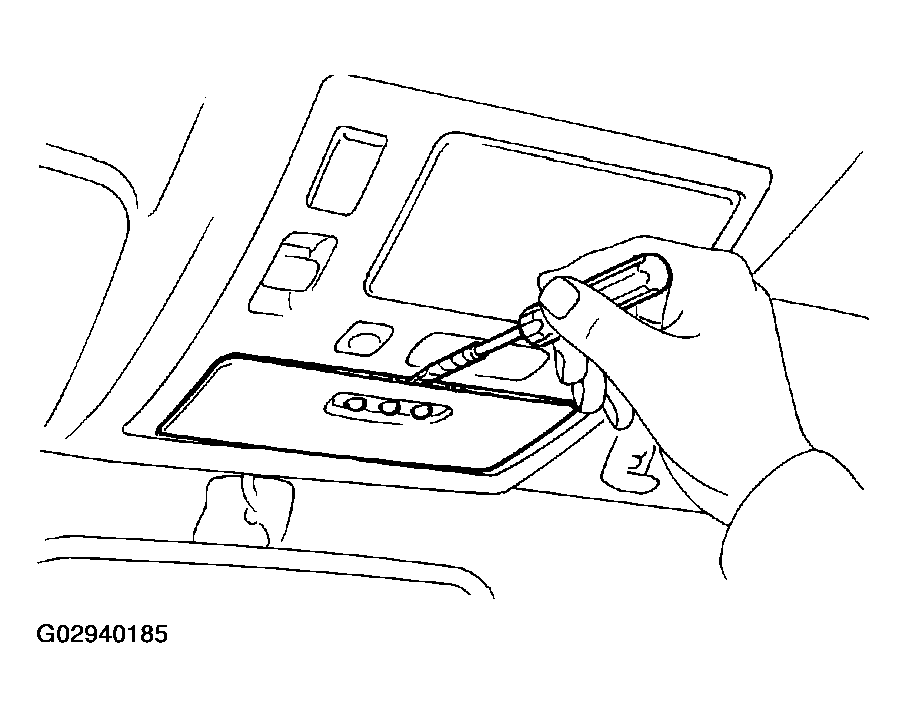

  Fig 1: Removing Lens & Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT PILLAR GARNISH
1. Using a screwdriver, open the cover.
  HINT:

  Tape the screwdriver tip before use.
2. Remove the bolt.
3. Remove the front pillar garnish and cover.
4. Use the same manner described above to the other side.

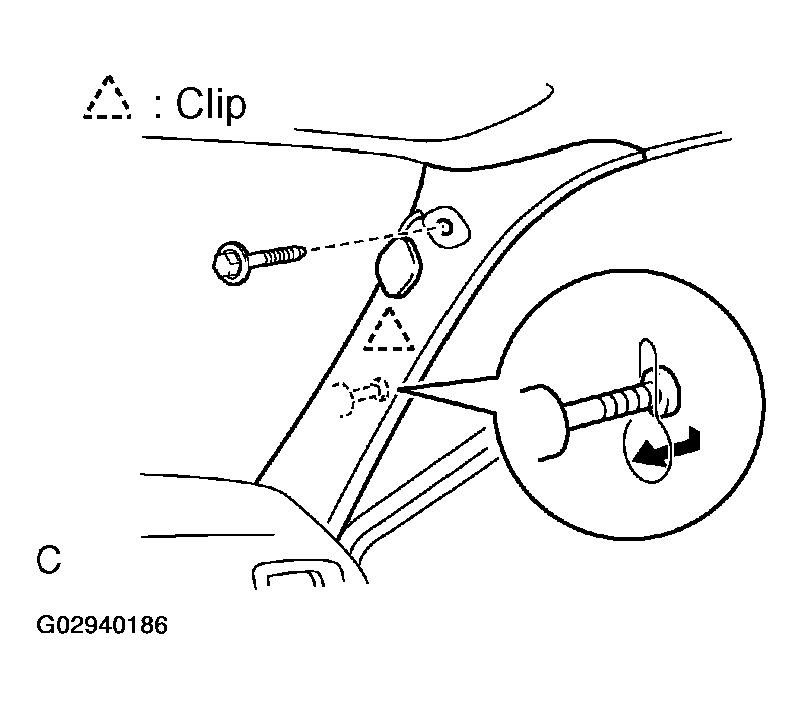

  Fig 2: Removing Front Pillar Garnish
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CENTER PILLAR LOWER GARNISH
1. Using a screwdriver, remove the center pillar lower garnish.
  HINT:

  Tape the screwdriver tip before use.
2. Use the same manner described above to the other side.

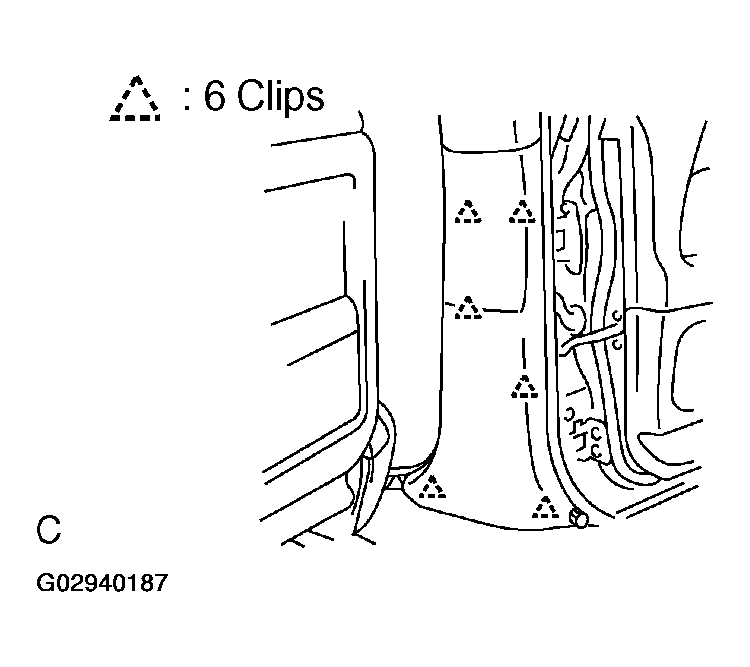

  Fig 3: Removing Center Pillar Lower Garnish
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CENTER PILLAR UPPER GARNISH
1. Remove the 2 screws.
2. Using a screwdriver, remove the center pillar upper garnish.
  HINT:

  Tape the screwdriver tip before use.
3. Use the same manner described above to the other side.

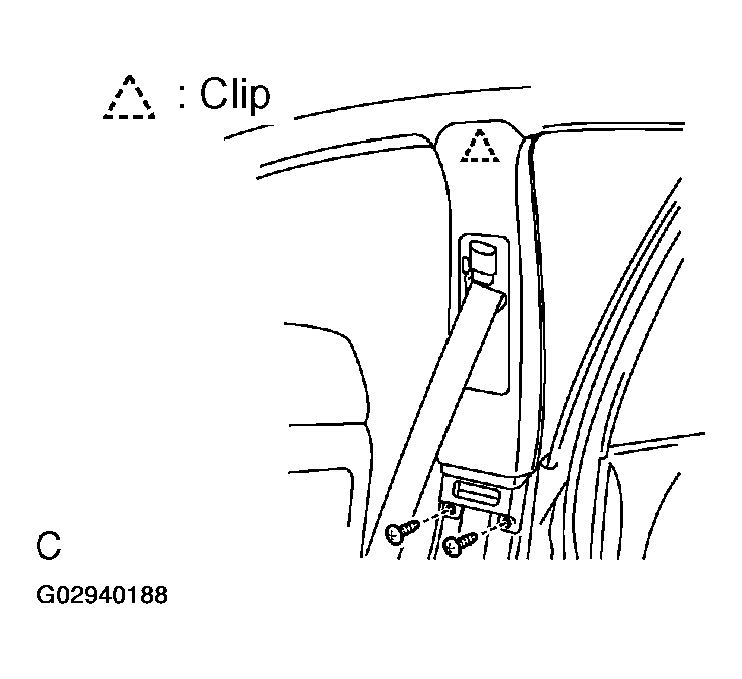

  Fig 4: Removing Center Pillar Upper Garnish
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ROOF SIDE INNER GARNISH
1. Using a screwdriver, remove the roof side inner garnish.
  HINT:

  Tape the screwdriver tip before use.
2. Remove the 3 screws and roof side inner garnish spacer.
3. Use the same manner described above to the other side.
REMOVE HOLDERS
Remove the 2 screws and 2 holders.
REMOVE ROOF HEADLINING
1. w/ Sliding roof: Remove the opening trim.

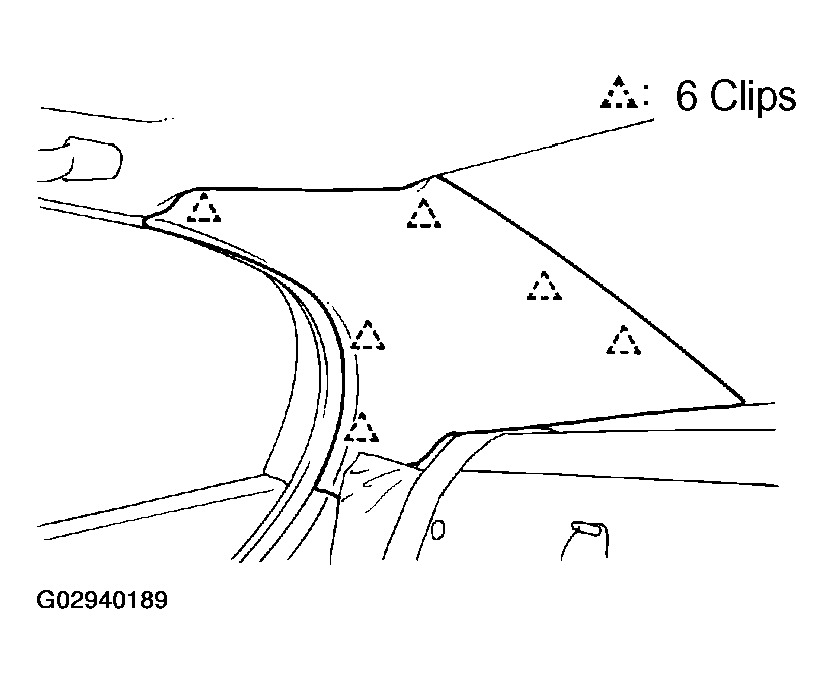

  Fig 5: Removing Roof Side Inner Garnish
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Release the 3 clips and fastener tapes to remove the roof headlining.
3. Remove the 6 screws and 2 side rail spacers.
