Terminals Of ECM

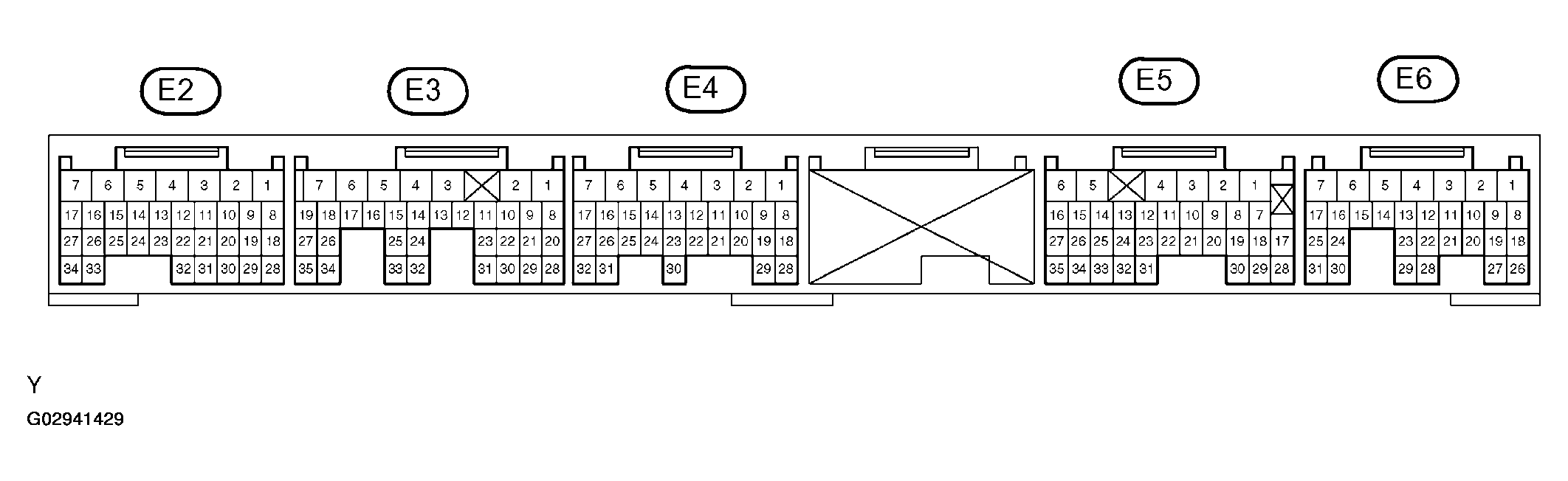

Fig 1: Identifying ECM Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TERMINAL STD VOLTAGE

Symbols (Terminals No.)	Wiring Color	Condition	STD Voltage (V)
CODE - E1 (E6 - 31 ohms E3 - 7)	G-B -> BR	Ignition Switch ON	10 - 14
TXCT - E1 (E5 - 23 ohms E3 - 7)	L-R -> BR	Ignition Switch ON	10 - 14
RXCK - E1 (E5 - 24 ohms E3 - 7)	B-W -> BR	Ignition Switch ON	10 - 14
