Lower Control Arm: Removal

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

For an exploded view see Fig 1.

Remove engine assembly with transaxle. See REMOVAL & INSTALLATION in appropriate ENGINE MECHANICAL article in ENGINES.
Remove the 3 nuts and engine mounting insulator. See Fig 2.
Remove the 2 bolts on the front side of the lower suspension arm. See Fig 3.
Remove the bolt and nut on the rear side of the lower suspension arm. Remove the lower suspension arm. Remove the lower suspension arm bushing stopper from the lower suspension arm shaft. See Fig 4.

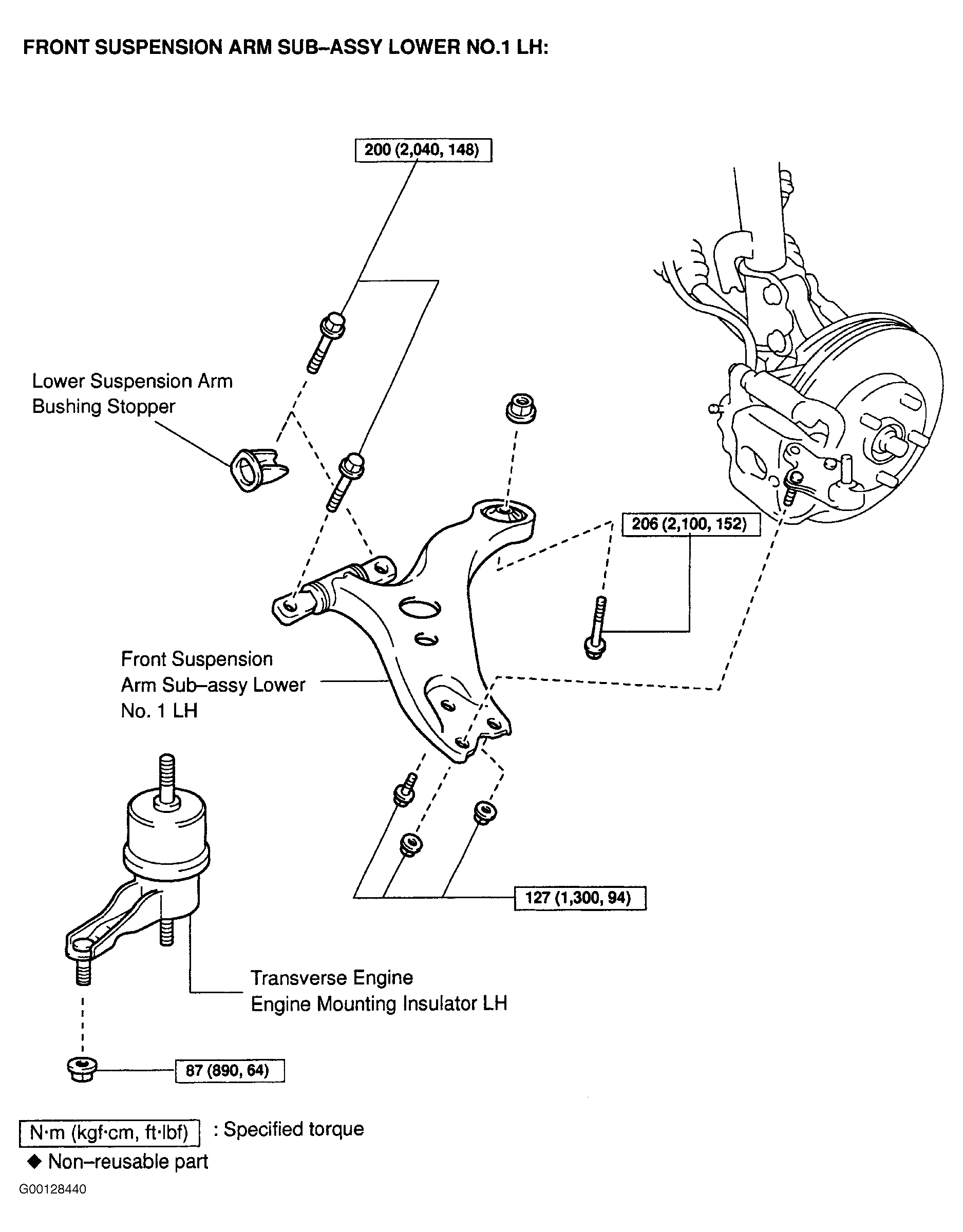

Fig 1: Exploded View Of Front Suspension Lower Arm

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

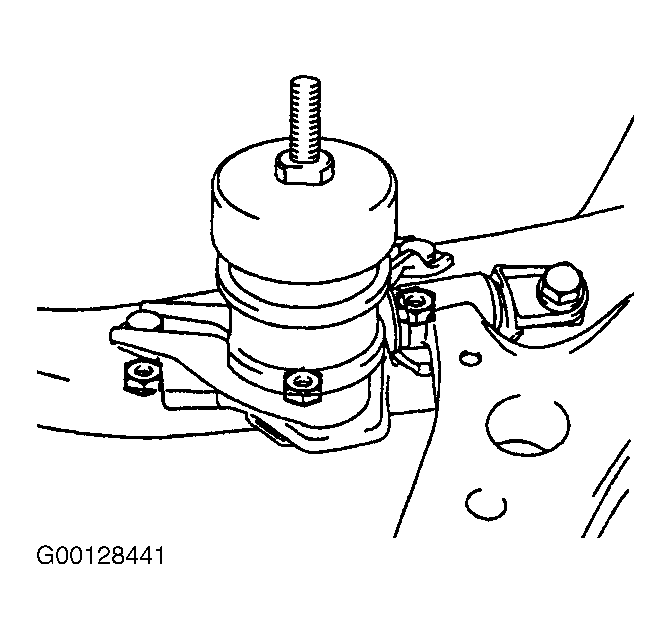

Fig 2: Removing Transverse Engine Mounting Insulator

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

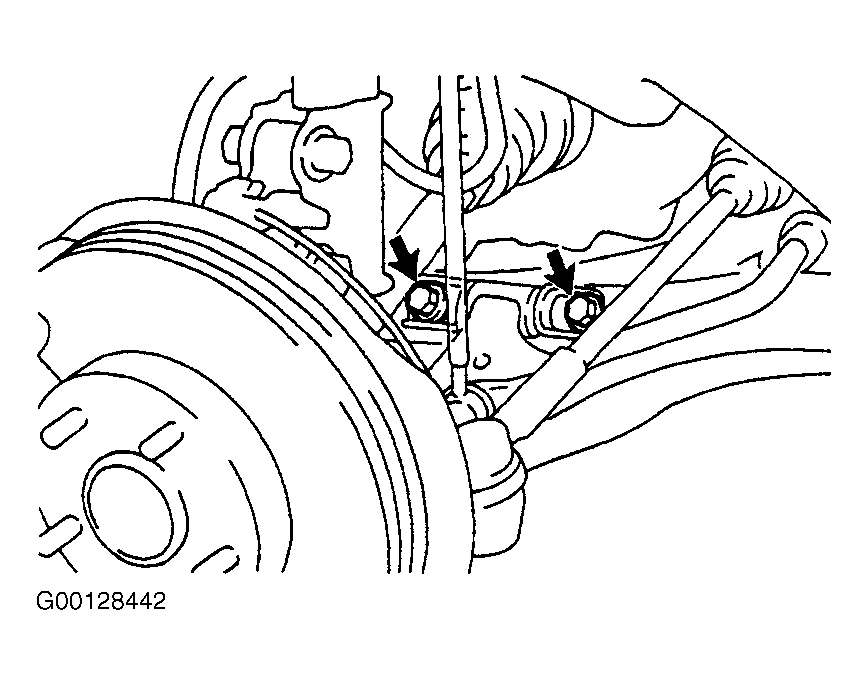

Fig 3: Removing Lower Suspension Arm Bolts (Front Side)

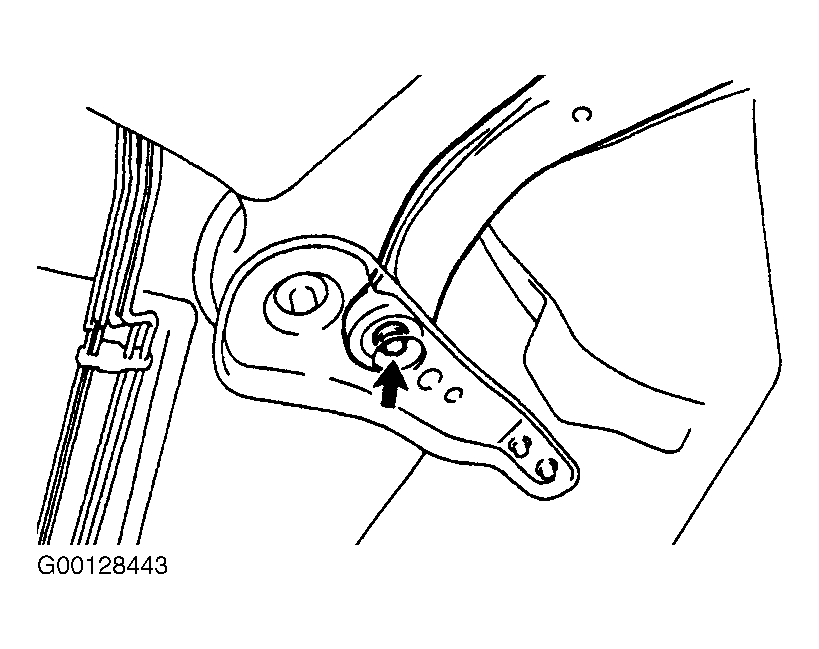

Fig 4: Removing Lower Suspension Arm & Sub-Assembly Bolt & Nut (Rear Side)
