Section 54 (Engine Oil Pump Seal): Replacement

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT WHEEL RH
  2. REMOVE FRONT WIPER ARM HEAD CAP
  3. REMOVE FR WIPER ARM RH, see  REPLACEMENT  .
  4. REMOVE FR WIPER ARM LH, see  REPLACEMENT  .
  5. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY, see  REPLACEMENT  .
  6. REMOVE WIPER LINK ASSEMBLY, see  REPLACEMENT  .
  7. REMOVE COWL TOP TO COWL BRACE INNER NO. 1, see  REPLACEMENT  .
  8. REMOVE COWL TOP PANEL SUB-ASSEMBLY OUTER FRONT, see  REPLACEMENT  .
  9. REMOVE FRONT FENDER APRON SEAL RH
  10. REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO. 1, see  REPLACEMENT  .
  11. REMOVE VANE PUMP V BELT, see  REPLACEMENT  .
  12. REMOVE ENGINE MOVING CONTROL ROD, see  TIMING BELT  .
  13. REMOVE ENGINE MOUNTING STAY NO. 2 RH, see  TIMING BELT  .
  14. REMOVE GENERATOR BRACKET NO. 2, see  TIMING BELT  .
  15. REMOVE CRANKSHAFT PULLEY, see  TIMING BELT  .

    SST 09213-54015 (91651-60855), 09330-00021, 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05031)

  16. REMOVE TIMING BELT NO. 1 COVER
  17. REMOVE TIMING BELT NO. 2 COVER, see  TIMING BELT  .
  18. REMOVE ENGINE MOUNTING BRACKET RH, see  TIMING BELT  .
  19. REMOVE TIMING BELT GUIDE NO. 2
  20. REMOVE TIMING BELT, see  TIMING BELT  .
  21. REMOVE CRANKSHAFT TIMING PULLEY
    1. Remove the bolt and the timing belt plate.
    2. Install the pulley bolt to the crankshaft.
    3. Using SST, remove the crankshaft timing pulley.

      SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05011)

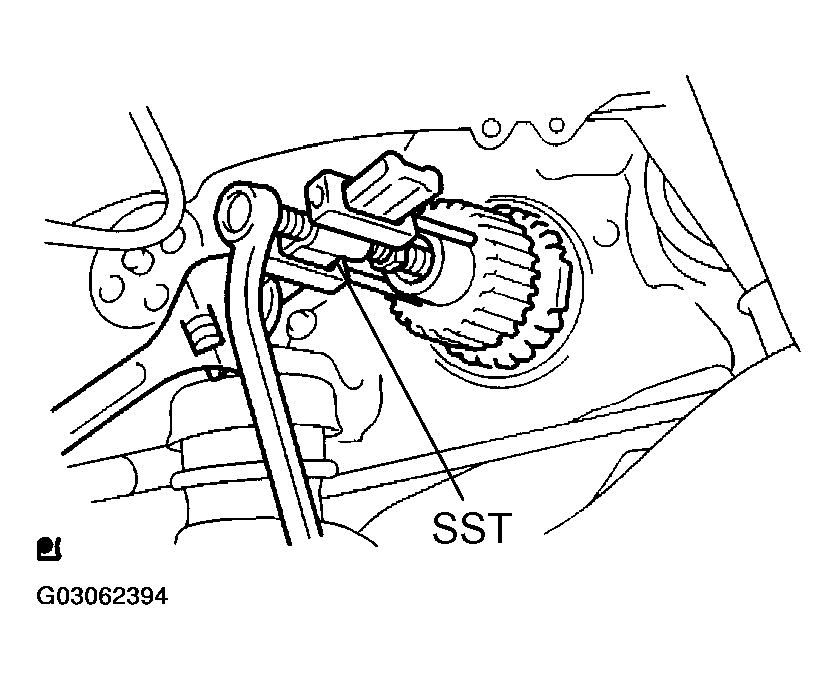

      Fig 1: Removing Crankshaft Timing Pulley
      G03062394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • Do not scratch the sensor part of the crankshaft timing pulley.
    • Before using SST, apply lubricating oil on the threads and tip of the center bolt 150.
  22. REMOVE OIL PUMP SEAL
    1. Using a knife, cut off the oil seal lip.
    2. Using a screwdriver with the tip wrapped in tape, pry out the oil seal.
    NOTE: After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.

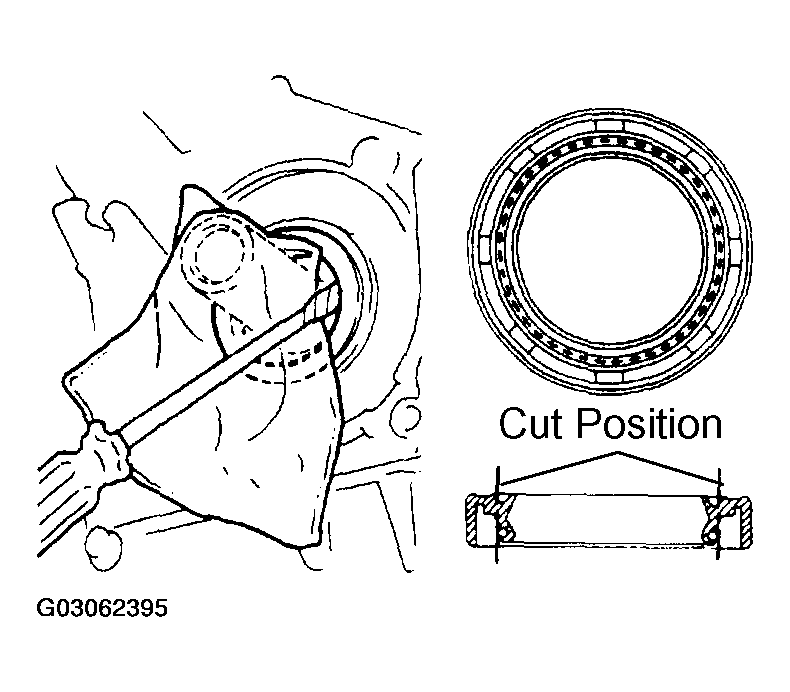

    Fig 2: Removing Oil Pump Seal
    G03062395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL OIL PUMP SEAL
    1. Apply MP grease to a new oil seal lip.
      NOTE: Keep the lip free of foreign objects.
    2. Using SST and a hammer, tap in a new oil seal until its surface is flush with the oil pump edge.

      SST 09223-00010

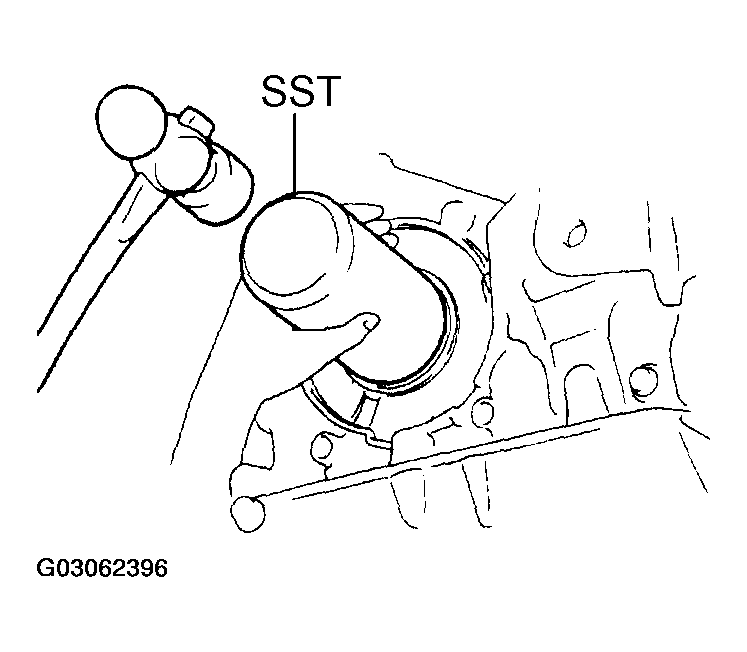

      Fig 3: Installing Oil Pump Seal
      G03062396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • Be careful not to tap the oil seal at an angle.
    • Wipe off extra grease on the crankshaft.
  24. INSTALL CRANKSHAFT TIMING PULLEY
    1. Align the keyway of the pulley with the key located on the crankshaft and slide the pulley into place.
      NOTE: Do not scratch the sensor area of the crankshaft timing pulley.

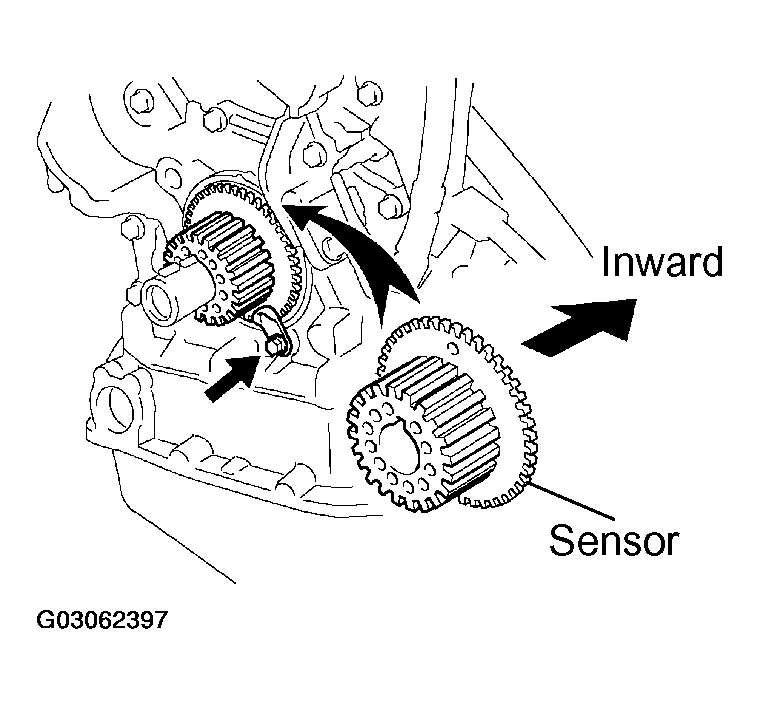

      Fig 4: Installing Crankshaft Timing Pulley
      G03062397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the timing belt plate with the bolt.

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

  25. INSPECT TIMING BELT, see  TIMING BELT  .
  26. INSTALL TIMING BELT, see  TIMING BELT  .

    SST 09960-10010 (09962-01000, 09963-01000)

  27. INSTALL CHAIN TENSIONER ASSEMBLY NO. 1, see  TIMING BELT  .
  28. INSTALL TIMING BELT GUIDE NO. 2, see  TIMING BELT  .
  29. INSTALL ENGINE MOUNTING BRACKET RH, see  TIMING BELT  .
  30. INSTALL TIMING BELT NO. 2 COVER, see  TIMING BELT  .
  31. INSTALL TIMING BELT NO. 1 COVER, see  TIMING BELT  .
  32. INSTALL CRANKSHAFT PULLEY, see  TIMING BELT  .

    SST 09213-54015 (91651-60855), 09330-00021

  33. INSTALL GENERATOR BRACKET NO. 2, see  TIMING BELT  .
  34. INSTALL ENGINE MOUNTING STAY NO. 2 RH, see  TIMING BELT  .
  35. INSTALL ENGINE MOVING CONTROL ROD, see  TIMING BELT  .
  36. INSTALL VANE PUMP V BELT, see  REPLACEMENT  .
  37. INSTALL V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO. 1, see  REPLACEMENT  .
  38. INSPECT DRIVE BELT DEFLECTION AND TENSION (REFERENCE), see  INSPECTION  .
  39. INSTALL COWL TOP PANEL SUB-ASSEMBLY OUTER FRONT, see  REPLACEMENT  .
  40. INSTALL COWL TOP TO COWL BRACE INNER NO. 1, see  REPLACEMENT  .
  41. INSTALL WIPER LINK ASSEMBLY, see  REPLACEMENT  .
  42. INSTALL FR WIPER ARM LH, see  REPLACEMENT  .
  43. INSTALL FR WIPER ARM RH, see  REPLACEMENT  .
  44. INSTALL FRONT WHEEL RH, see  REPLACEMENT  .
  45. CHECK FOR ENGINE OIL LEAKS
