Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISTANCE CONTROL ECU

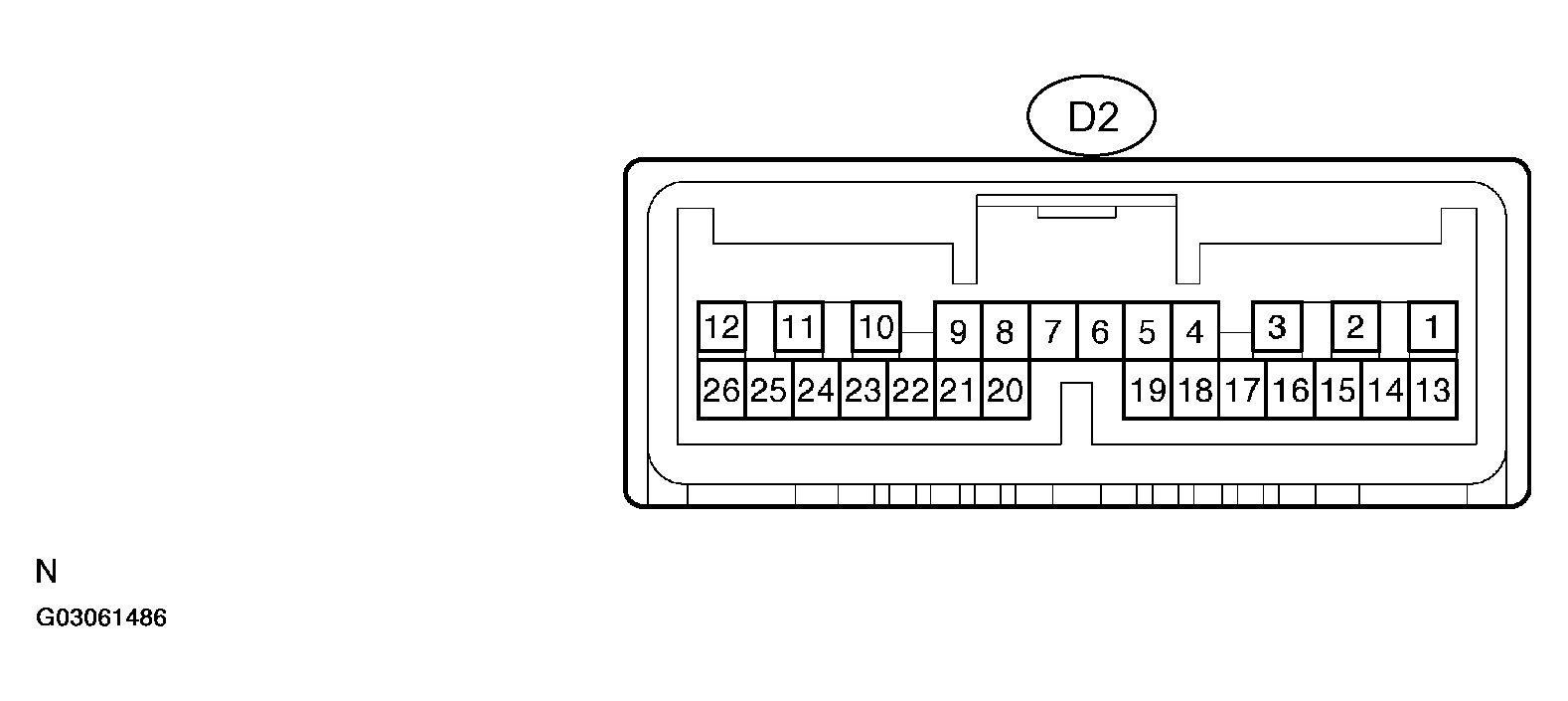

    Fig 1: Identifying Terminals Of Distance Control ECU
    G03061486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    SPECIFIED CONDITION CHART

    Symbols (Terminals No.) Wiring Color Condition Specified Condition
    D2-1 - D2-12 (B - GND) B-R - BR Always 10 to 14 V
    D2-2 - D2-12 (WIP2 - GND) L-O - BR Ignition switch ON Wiper switch OFF --> HI Below 1 V --> 10 to 14 V
    D2-3 - D2-12 (WASH - GND) L-Y - BR Ignition switch ON Washer switch OFF --> ON 10 to 14 V Below 1 V
    D2-10 - Body ground (SGND - Body ground) BR - Body ground Always Below 1 Ω
    D2-12 - Body ground (GND - Body ground) BR - Body ground Always Below 1 Ω
    D2-13 - D2-12 (IGB - GND) W-L - BR Ignition switch ON 10 to 14 V
    D2-16 - D2-12 (MODE - GND) W - BR Ignition switch ON Distance control switch OFF --> ON 10 to 14 V --> Below 1 V
    D2-22 - D2-12 (LRDD - GND) G - BR Ignition switch ON Pulse generation (*1)
    D2-23 - D2-12 (LRRD - GND) Y- BR Ignition switch ON Pulse generation (*2)
    D2-24 - D2-12 (ELC - GND) B-W - BR Ignition switch ON Pulse generation (*3)
    D2-25 - D2-12 (LCS - GND) W-R - BR Ignition switch ON Pulse generation (*4)
    1. Reference: Oscilloscope wave form (*1)

      HINT:

      • Terminal: LRDD - GND
      • Gauge set: 2 V/DIV, 10 ms/DIV
      • Condition: Ignition switch ON

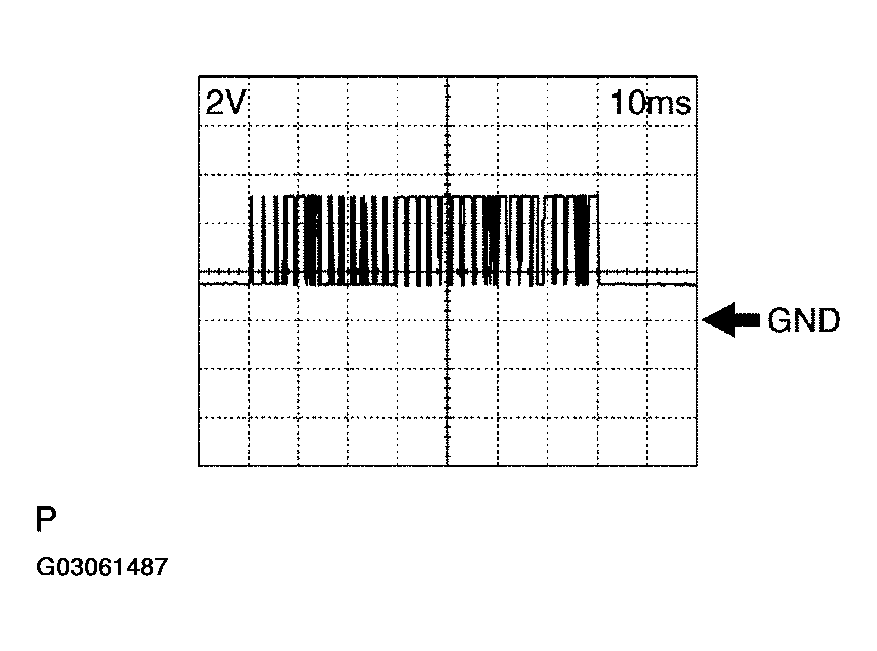

      Fig 2: Identifying Oscilloscope Wave Form (*1)
      G03061487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reference: Oscilloscope wave form (*2)

      HINT:

      • Terminal: LRDD - GND
      • Gauge set: 2 V/DIV, 5 ms/DIV
      • Condition: Ignition switch ON

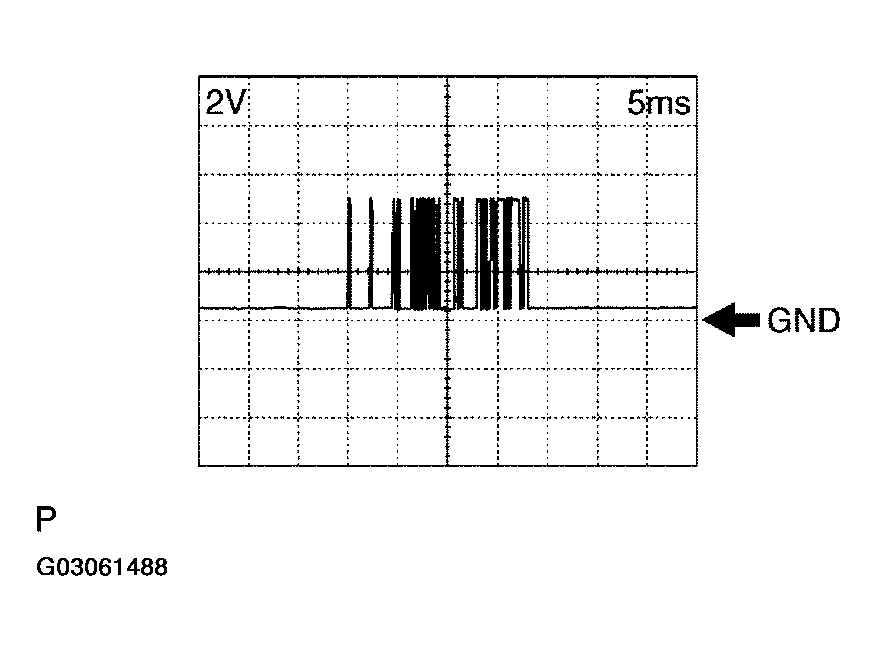

      Fig 3: Identifying Oscilloscope Wave Form (*2)
      G03061488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Reference: Oscilloscope wave form (*3)

      HINT:

      • Terminal: ELC - GND
      • Gauge set: 2 V/DIV, 5 ms/DIV
      • Condition: Ignition switch ON

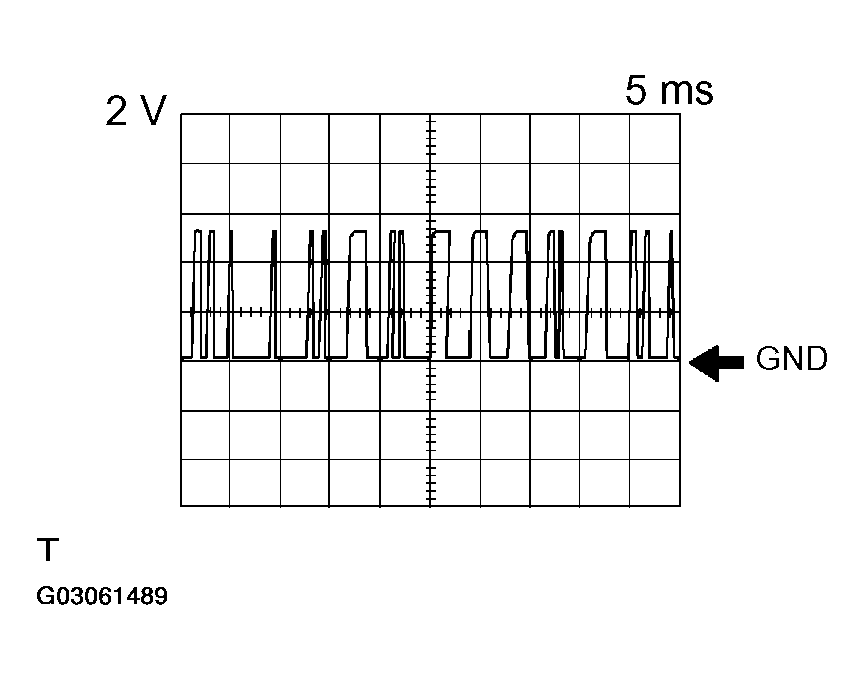

      Fig 4: Identifying Oscilloscope Wave Form (*3)
      G03061489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Reference: Oscilloscope wave form (*4)

      HINT:

      • Terminal: LCS - GND
      • Gauge set: 2 V/DIV, 5 ms/DIV
      • Condition: Ignition switch ON

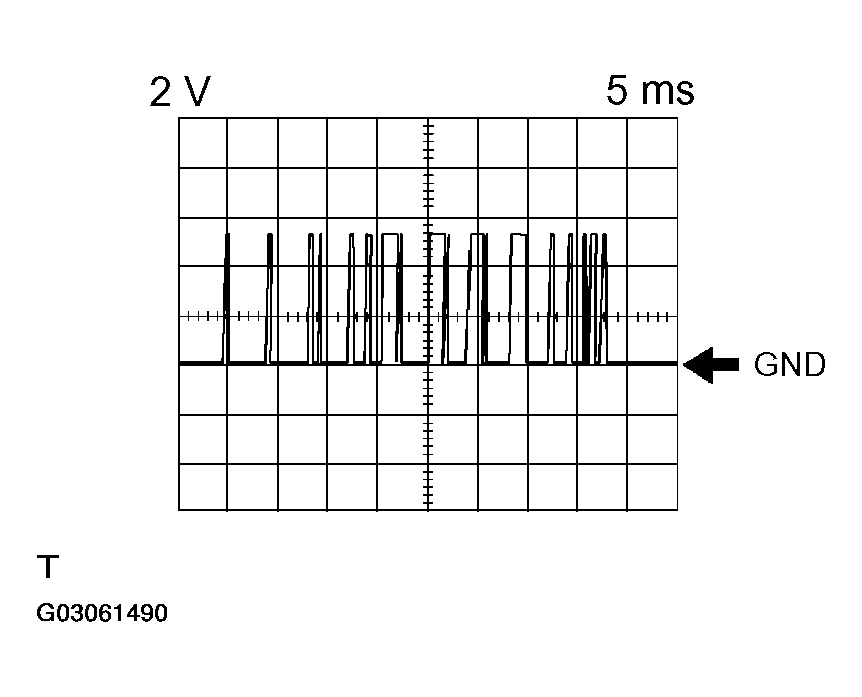

    Fig 5: Identifying Oscilloscope Wave Form (*4)
    G03061490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ECM

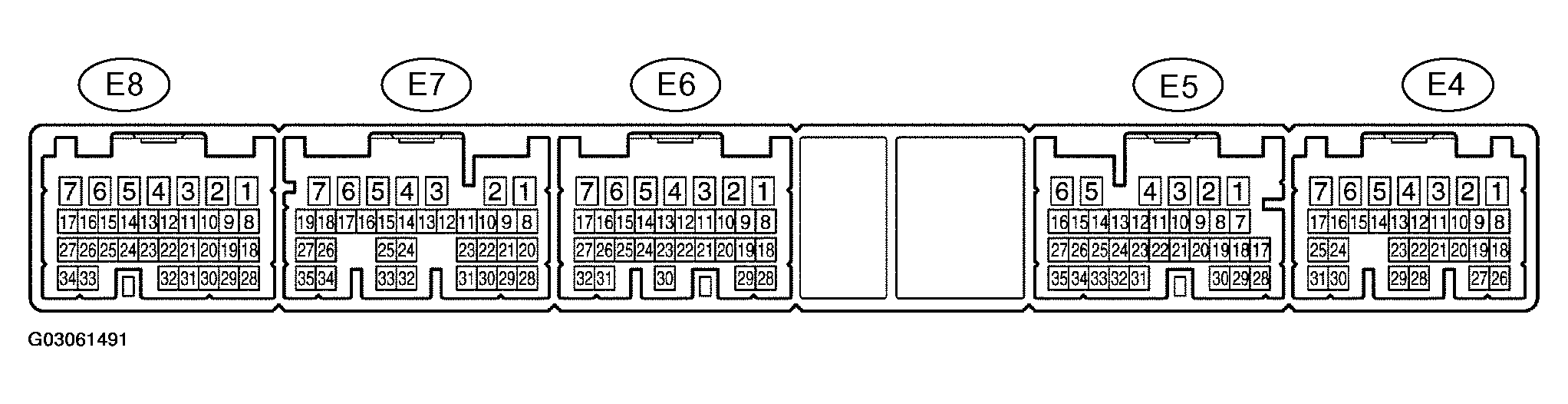

    Fig 6: Identifying Terminals Of ECM (1 Of 2)
    G03061491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

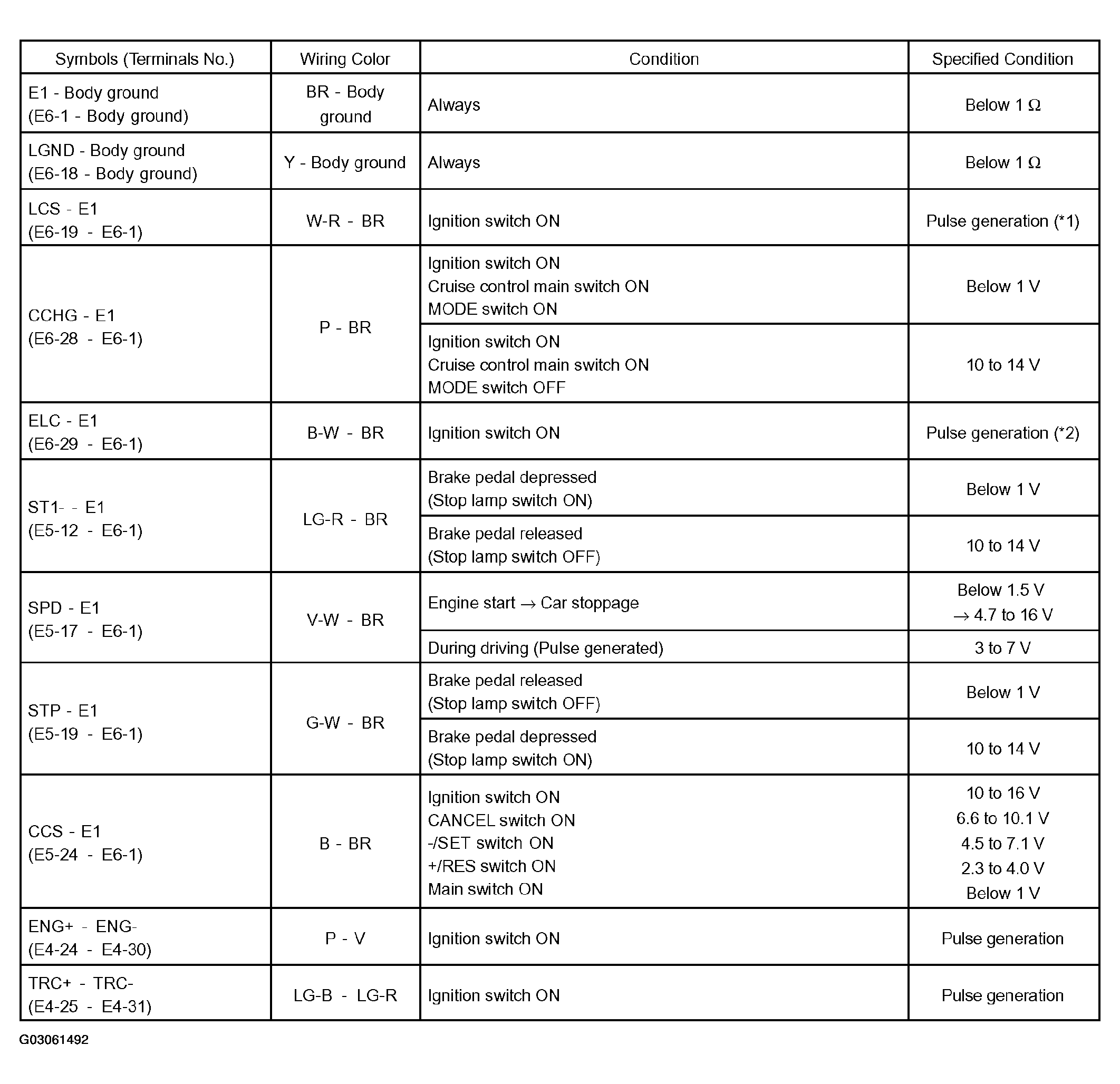

    Fig 7: Identifying Terminals Of ECM (2 Of 2)
    G03061492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Reference: Oscilloscope wave form (*1)

      HINT:

      • Terminal: LCS - E1
      • Gauge set: 1 V/DIV, 20 ms/DIV
      • Condition: Ignition switch ON

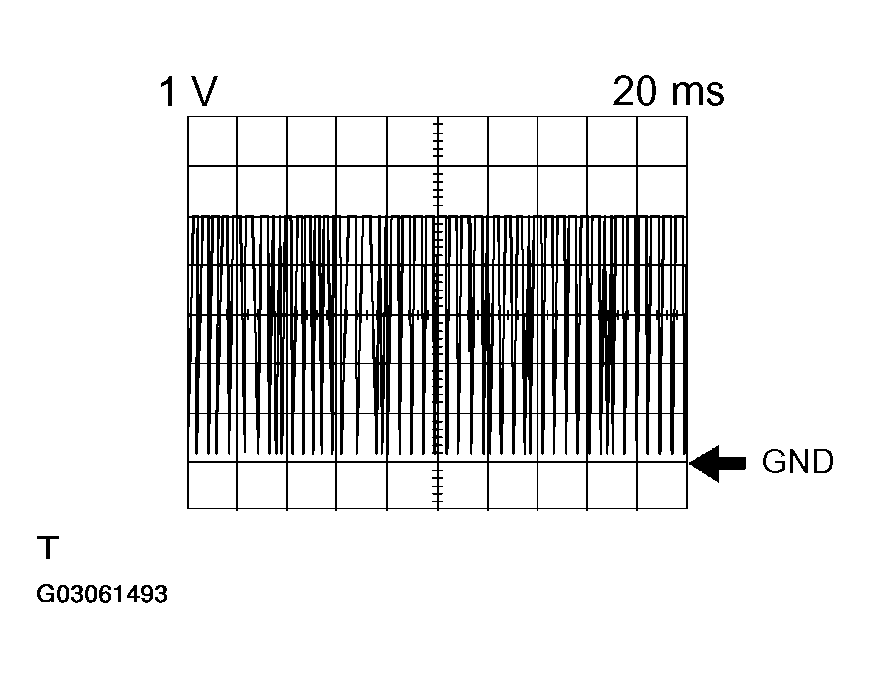

      Fig 8: Identifying Oscilloscope Wave Form (*1)
      G03061493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reference: Oscilloscope wave form (*2)

      HINT:

      • Terminal: ELC - E1
      • Gauge set: 1 V/DIV, 20 ms/DIV
      • Condition: Ignition switch ON
    Fig 9: Identifying Oscilloscope Wave Form (*2)
    G03061494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. LASER RADAR SENSOR

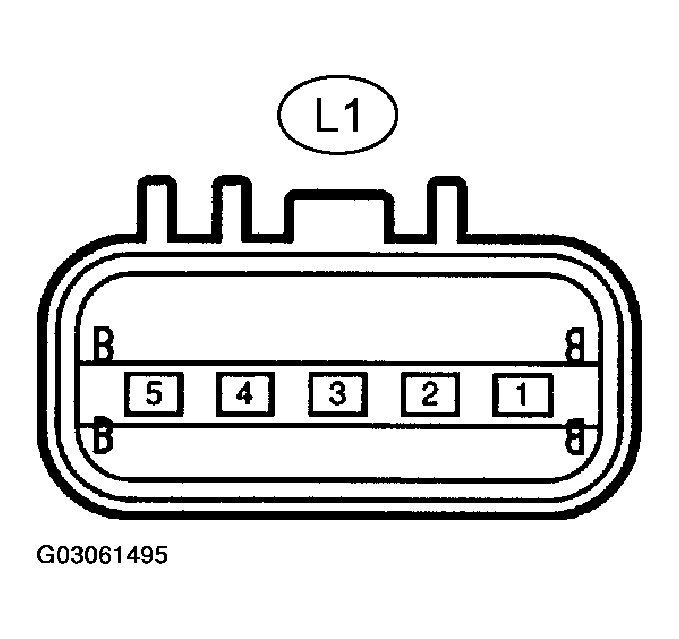

    Fig 10: Identifying Laser Radar Sensor Connector Terminals
    G03061495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    SPECIFIED CONDITION

    Symbols (Terminal No.) Wiring Color Condition Specified Condition
    LGND - Body ground (L1-1 - Body ground) R - Body ground Always Below 1 Ω
    SGND - Body ground (L1-2 - Body ground) BR - Body ground Always Below 1 Ω
    LRDD - SGND (L1-3 - L1-2) G - BR Ignition switch ON Pulse generation (*1)
    LRRD - SGND (L1-4 - L1-2) Y - BR Ignition switch ON Pulse generation (*2)
    IGB - SGND (L1-5 - L1-2) W-L - BR Ignition switch ON 10 to 14 V
    1. Reference: Oscilloscope wave form (*1)

      HINT:

      • Terminal: LRDD - SGND
      • Gauge set: 1 V/DIV, 2 ms/DIV
      • Condition: Ignition switch ON

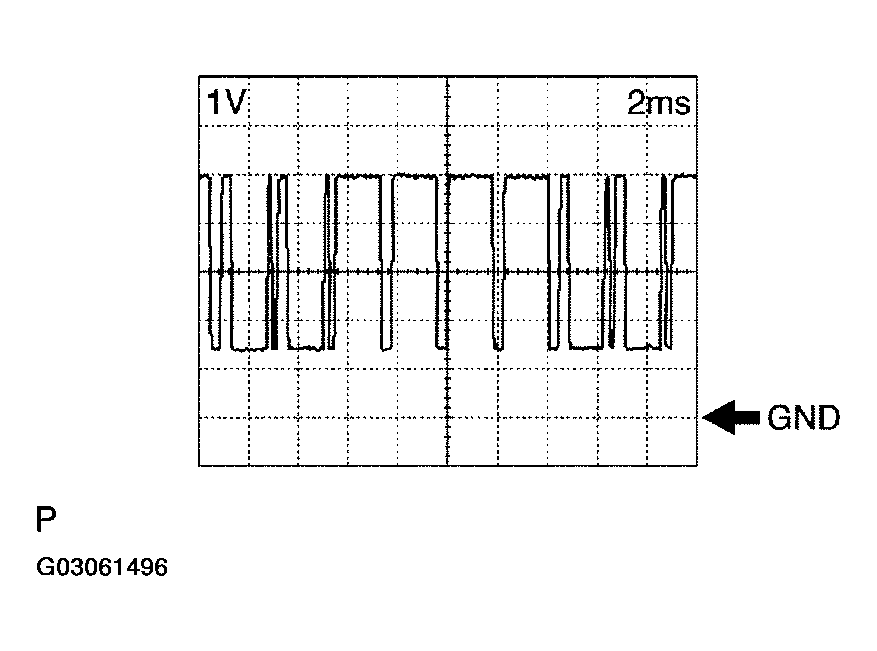

      Fig 11: Identifying Oscilloscope Wave Form (*1)
      G03061496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reference: Oscilloscope wave form (*2)

      HINT:

      • Terminal: LRRD - SGND
      • Gauge set: 1 V/DIV, 2 ms/DIV
      • Condition: Ignition switch ON

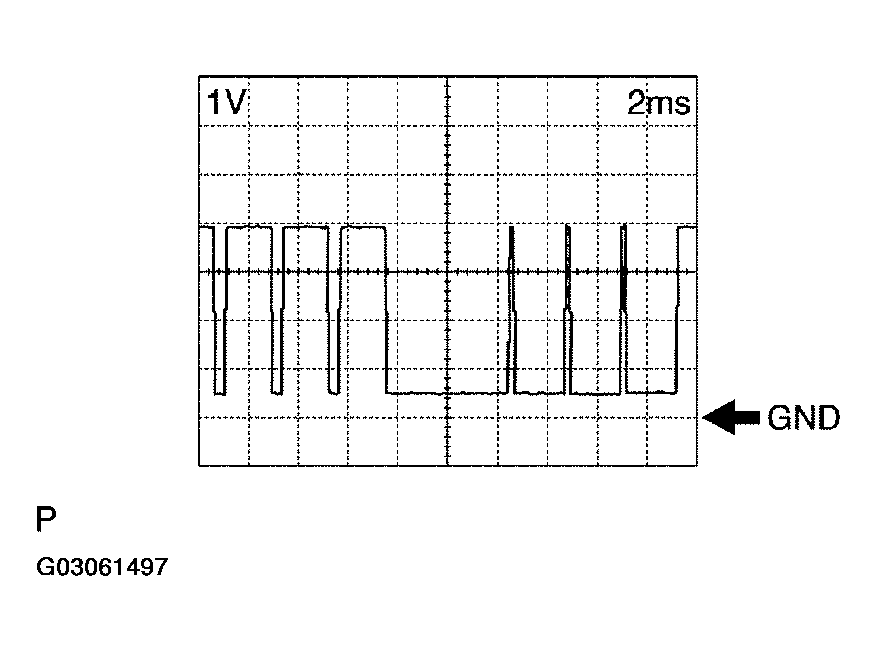

    Fig 12: Identifying Oscilloscope Wave Form (*2)
    G03061497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU)

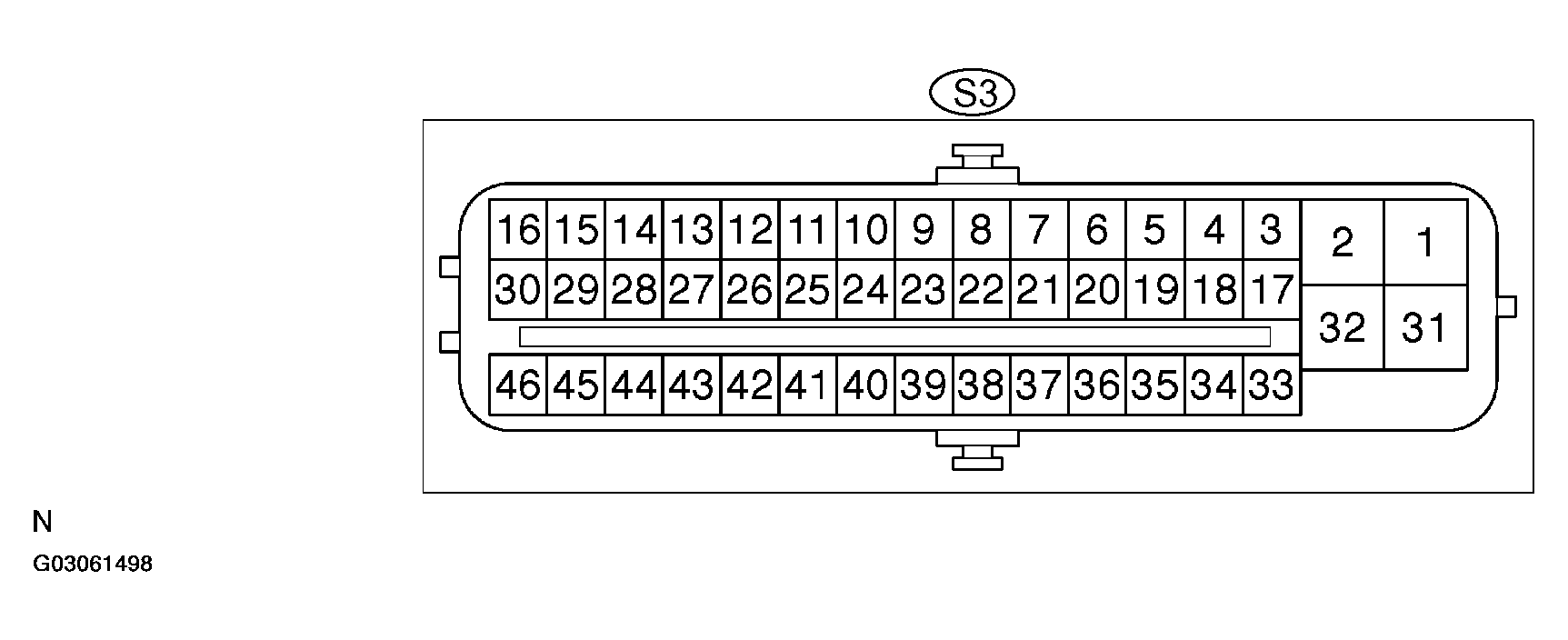

    Fig 13: Identifying Brake Actuator Assembly (Skid Control ECU) Connector Terminals (1 Of 2)
    G03061498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

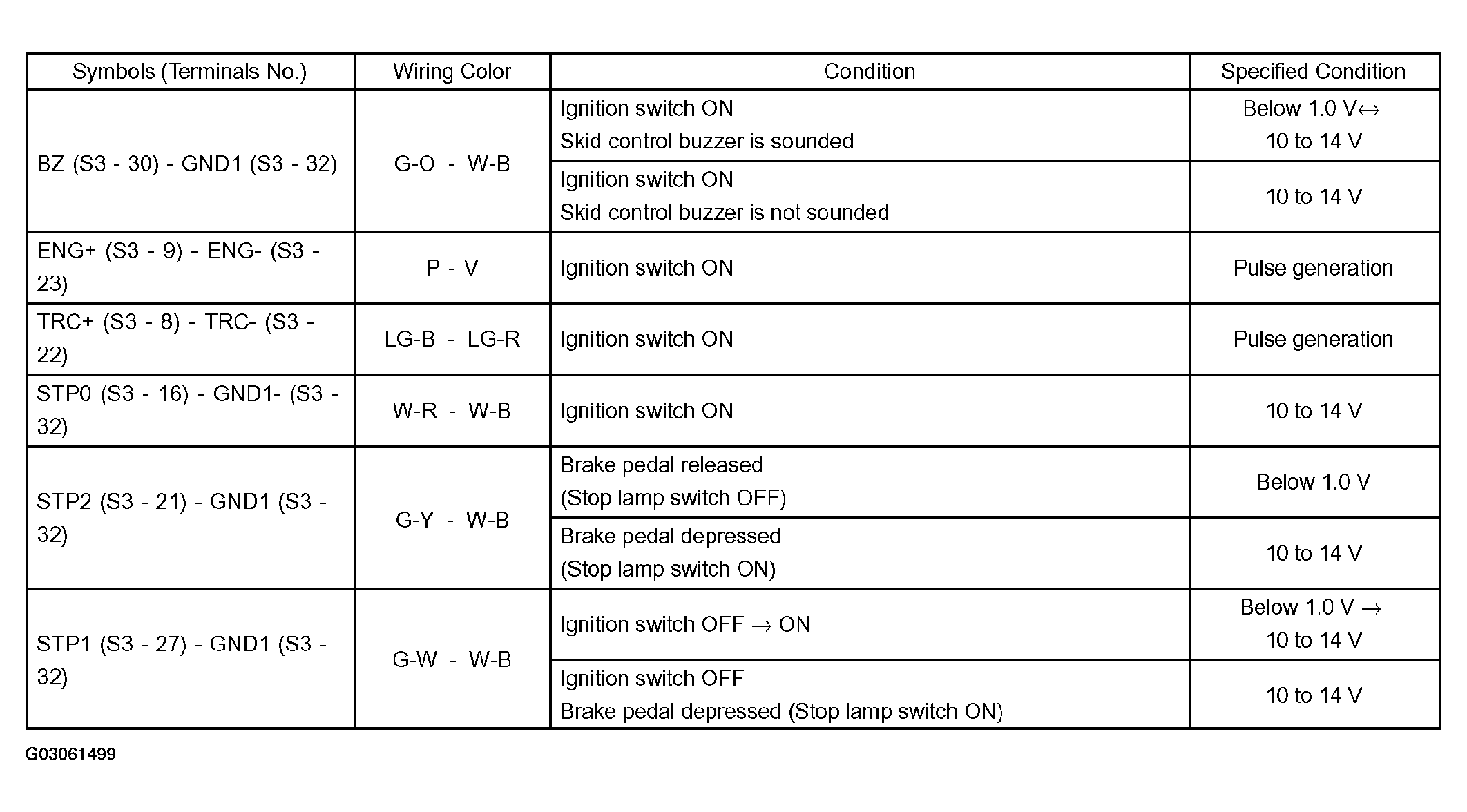

    Fig 14: Identifying Brake Actuator Assembly (Skid Control ECU) Connector Terminals (2 Of 2)
    G03061499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
