Terminals Of Ecu
WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

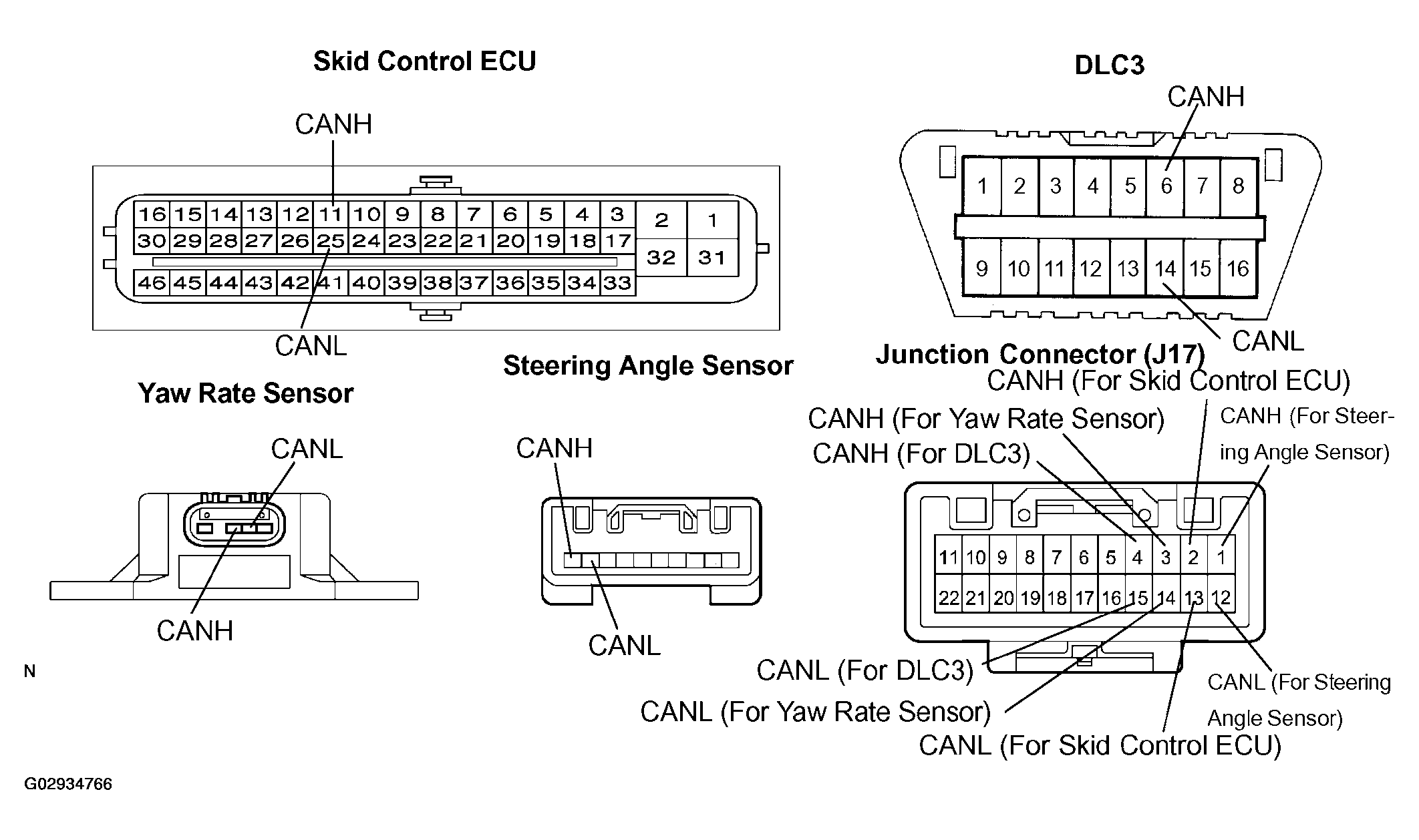

Skid Control ECU, DLC3, Yaw Rate Sensor and Steering Angle Sensor:
TERMINAL WIRING COLOR CONDITION
| Symbols (Terminals No.) | Wiring Color | Condition | STD Resistance |
|---|---|---|---|
| CANH - CANL | B - W | IG switch OFF | 54 to 66 Ω |
| CANL - Body ground | W | IG switch OFF | 3 kΩ or more |
| CANH - Body ground | B | IG switch OFF | 3 kΩ or more |
| CANL - +B | W | IG switch OFF | 1 MΩ or more |
| CANH - +B | B | IG switch OFF | 1 MΩ or more |
Junction Connector (J14):
TERMINAL WIRING COLOR CONDITION
| Symbols (Terminals No.) | Wiring Color | Condition | STD Resistance |
|---|---|---|---|
| CANH (4, 5, 6, 7)-CANL (15, 16, 17, 18) | - | IG switch OFF | 1 MΩ or more |
| CANL (4, 5, 6, 7) Body ground | - | IG switch OFF | 1 MΩ or more |
| CANH (15, 16, 17, 18) - Body ground | - | IG switch OFF | 1 MΩ or more |
| CANL (4, 5, 6, 7)- +B | - | IG switch OFF | 1 MΩ or more |
| CANH (15, 16, 17, 18)- +B | - | IG switch OFF | 1 MΩ or more |
| CANL (4) - CANL (7) | - | IG switch OFF | 1 Ω or less |
| CANH (15) - CANH (18) | - | IG switch OFF | 1 Ω or less |
