Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK INSTRUMENT PANEL JUNCTION BLOCK ASSY (MULTIPLEX NETWORK BODY ECU)

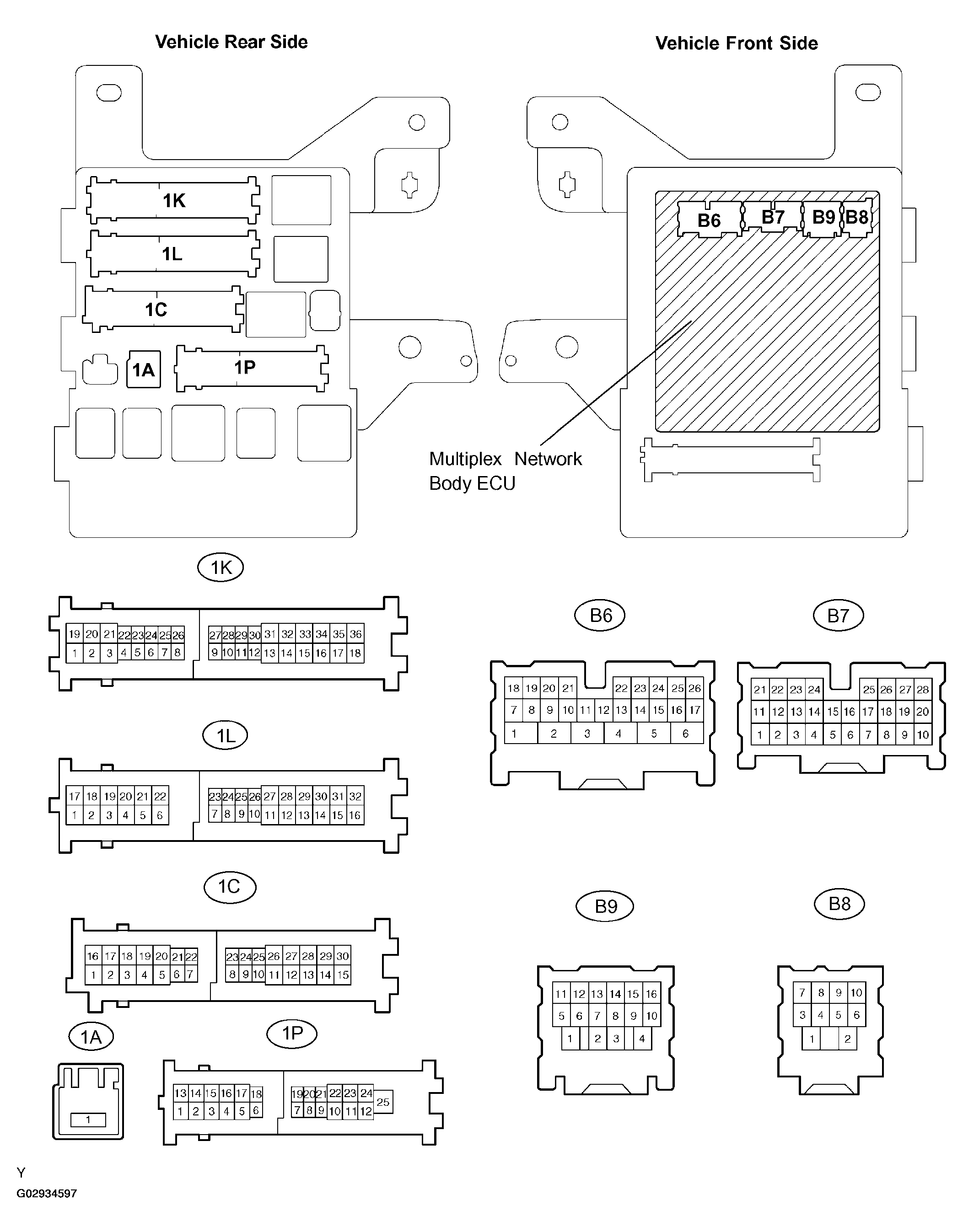

    Fig 1: Identifying Multiplex Network Body ECU Connector Terminals
    G02934597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the B6, B7 and B9 ECU connectors.
    2. Disconnect the 1A, 1C, 1K,1L and 1P J/B connectors.
    3. Check the voltage and resistance between each terminal of the wire harness side connectors and body ground.

      Standard:

      TERMINAL SPECIFIED CONDITION

      Symbols (Terminal No.) Wiring Color Condition Specified Condition
      IG (1A-1) - Body ground W - Body ground Constant 10 to 14 V
      ACC (1A-1) - Body ground W - Body ground Constant 10 to 14 V
      BECU (1C-24) - Body ground W-L - Body ground Constant 10 to 14 V
      ALTB (1C-30) - Body ground B - Body ground Constant 10 to 14 V
      KSW (B6-21) - Body ground L-B - Body ground No key in ignition key cylinder -->Key inserted 10 kΩ or higher --> Below 1 Ω
      DCTY (B9-14) - Body ground R-Y - Body ground Driver side door CLOSED --> OPEN 10 kΩ or higher --> Below 1 Ω
      PCTY (B7-23) - Body ground R-Y - Body ground Passenger side door CLOSED --> OPEN 10 kΩ or higher --> Below 1 Ω
      RCTY (B9-16) - Body ground R-W - Body ground Rear door RH CLOSED --> OPEN 10 kΩ or higher --> Below 1 Ω
      LCTY (1P-19) - Body ground GR - Body ground Rear door LH CLOSED --> OPEN 10 kΩ or higher --> Below 1 Ω
      BCTY (B7-25) - Body ground G-W - Body ground Back door CLOSED -->OPEN 10 kΩ or higher --> Below 1 Ω
      GND1 (1L-16) - Body ground W-B - Body ground Constant Below 1 Ω
      GND2 (1K-17) - Body ground W-B - Body ground Constant Below 1 Ω

      If the result is not as specified, there may be a malfunction on the wire harness side.

    4. Reconnect the B6, B7 and B9 ECU connectors.
    5. Reconnect the 1A, 1C, 1K,1L and 1P J/B connectors.
    6. Check the voltage between each terminal of the connectors and the body ground.

      Standard:

      TERMINAL SPECIFIED CONDITION

      Symbols (Terminal No.) Wiring Color Condition Specified Condition
      HAZ (B6-2) - Body ground G-O - Body ground Answer-back OFF --> Answer-back ON Below 1 V --> Pulse generation
      BZR (B8-2) - Body ground G - Body ground Wireless buzzer OFF --> ON Below 1 V --> Pulse generation
      RDA (B9-12) - Body ground P-L - Body ground No key in ignition key cylinder, all doors closed and transmitter switch OFF --> ON Below 1 V --> Approx. 6 to 7 V --> Below 1 V

      If the result is not as specified, the J/B assy (body ECU) may have a malfunction.
