Section 29 (Wireless Door Lock Control System - Diagnosis): Location

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

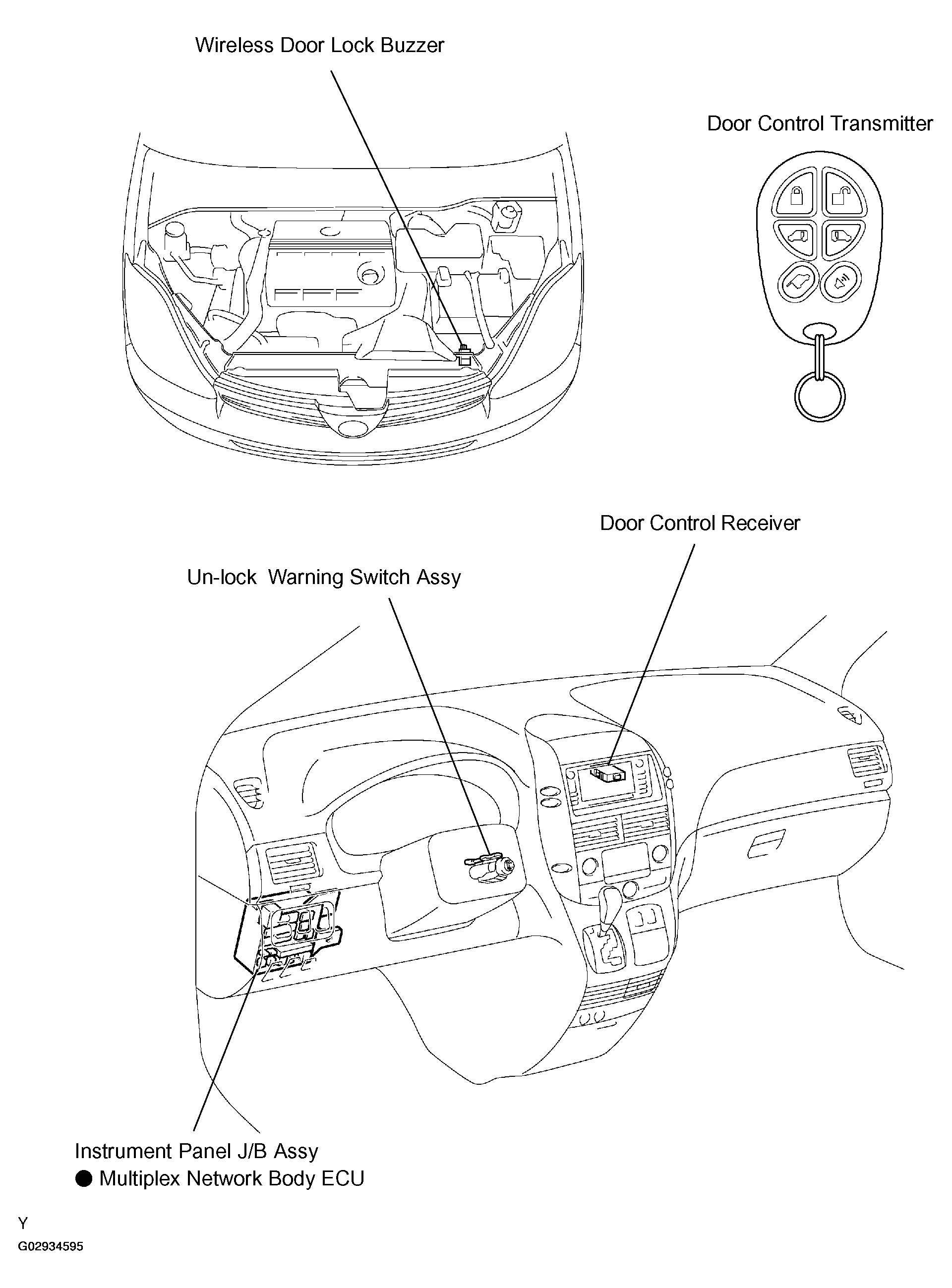

Fig 1: Identifying Wireless Door Lock Control System Components (1 Of 2)
G02934595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

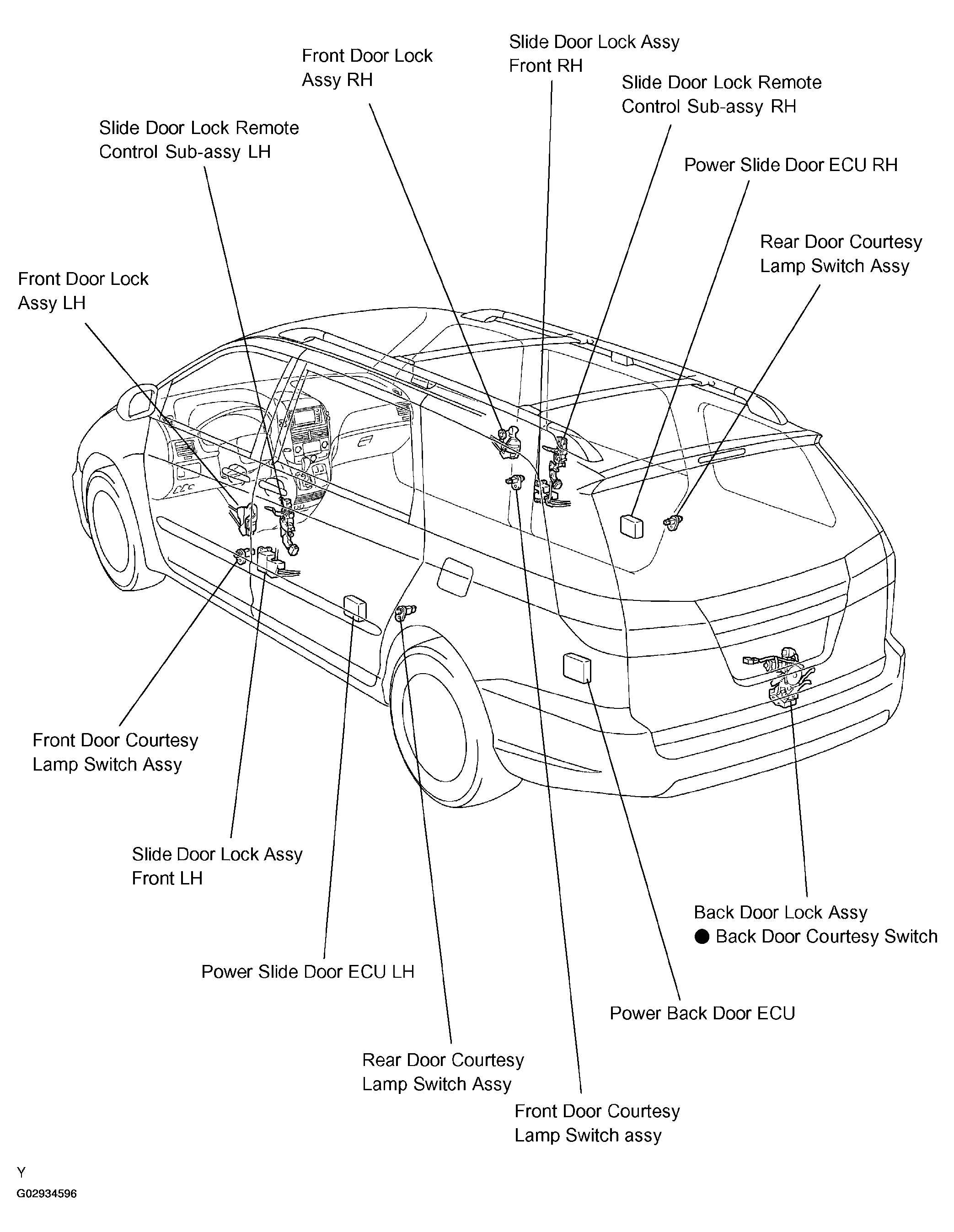

Fig 2: Identifying Wireless Door Lock Control System Components (2 Of 2)
G02934596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
