Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

OPERATION CHECK
1. If the power slide door does not operate when trying to open it, proceed to A.
2. If the power slide door does not operate when trying to close it, proceed to B.
1. B: Go to step 3
2. A: Go to next step.
CHECK SLIDE DOOR CLOSER SYSTEM
1. Check if the slide door closer system operates.
1. NG: GO TO CLOSER SYSTEM (See HOW TO PROCEED WITH TROUBLESHOOTING )
2. OK: Go to next step.

READ VALUE OF HAND-HELD TESTER

Using the hand-held tester, check the DATA LIST for proper functioning of the handle operation detect switch.

Standard (Power slide door ECU LH):

POWER SLIDE DOOR ECU LH STANDARD

Item	Measurement Item/Display (Range)	Normal Condition	Diagnostic Note
HANDLE SW	Handle operation detect switch signal	ON: Slide door inside/outside handle is pulled	-
HANDLE SW	/ON or OFF	OFF: Slide door inside/outside handle is not pulled	-

OK: Go to step 6
NG: Go to next step.

INSPECT SLIDE DOOR LOCK REMOTE CONTROL SUB-ASSY LH (HANDLE OPERATION DETECT SWITCH)

Inspect the resistance of the switch.

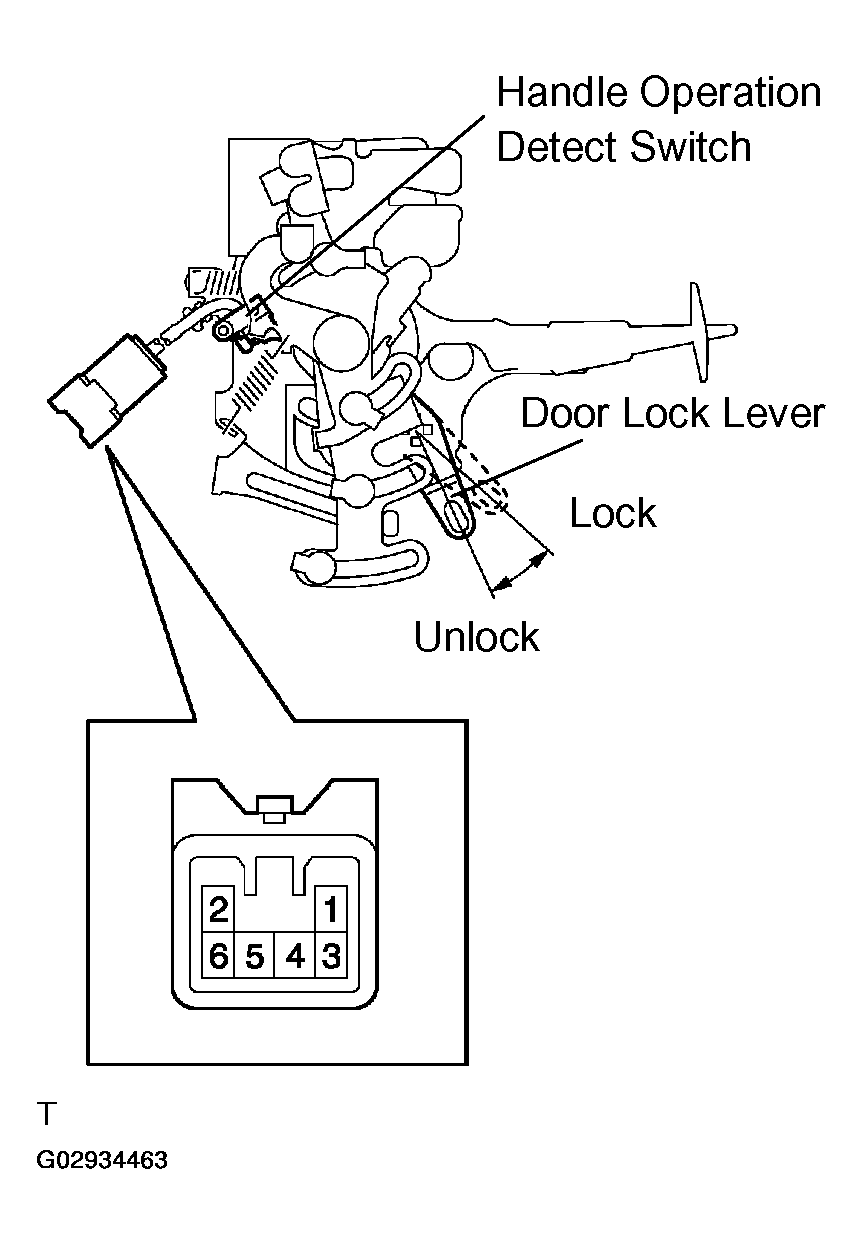

Fig 1: Inspecting Detect Switch Resistance

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

SWITCH RESISTANCE STANDARD

Terminal No.	Lever Position	Specified Condition
1 - 3	Unlock	10 kΩ or higher
1 - 3	Lock	Below 1 Ω

NG: REPLACE SLIDE DOOR LOCK REMOTE CONTROL SUB-ASSY LH
OK: Go to next step.

CHECK WIRE HARNESS (SLIDE DOOR LOCK REMOTE CONTROL ASSY (HANDLE OPERATION DETECT SWITCH) - POWER SLIDE DOOR ECU LH)

Disconnect the S20 remote control and P25 ECU connectors.

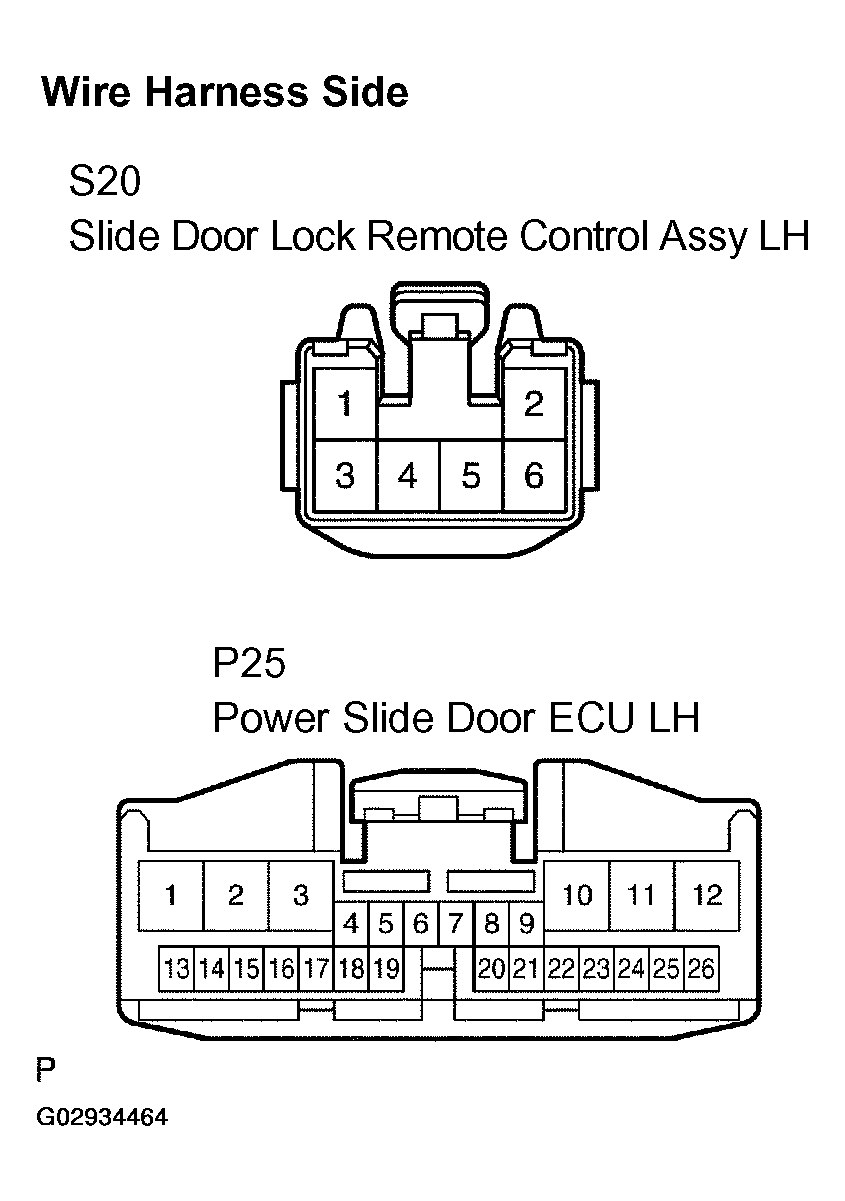

Fig 2: Disconnecting (S20) Remote Control & (P25) ECU Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the resistance between the wire harness side connectors.

Standard (Check for open circuit):

TERMINAL S-20-1 OPEN CIRCUIT

Terminal No.	Specified Condition
S20-1 - P25-3 (HSW)	Below 1 Ω

Check the resistance between the S20 remote control connector and body ground.

Standard (Check for open circuit):

TERMINAL S20-3 OPEN CIRCUIT

Terminal No.	Specified Condition
S20-3 - Body ground	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: REPLACE POWER SLIDE DOOR ECU LH

READ VALUE OF HAND-HELD TESTER

Using the hand-held tester, check the DATA LIST for proper functioning of the child protection detect switch.

Standard (Power slide door ECU LH):

ECU LH STANDARD

Item	Measurement Item/Display (Range)	Normal Condition	Diagnostic Note
CHILD LOCK SW	Child protection detect switch signal	ON: Child lock lever is LOCK	-
CHILD LOCK SW	/ON or OFF	OFF: Child lock lever is UNLOCK	-

OK: REPLACE POWER SLIDE DOOR ECU LH
NG: Go to next step.

INSPECT SLIDE DOOR LOCK REMOTE CONTROL SUB-ASSY LH (CHILD PROTECTION DETECT SWITCH)

Inspect the resistance of the switch.

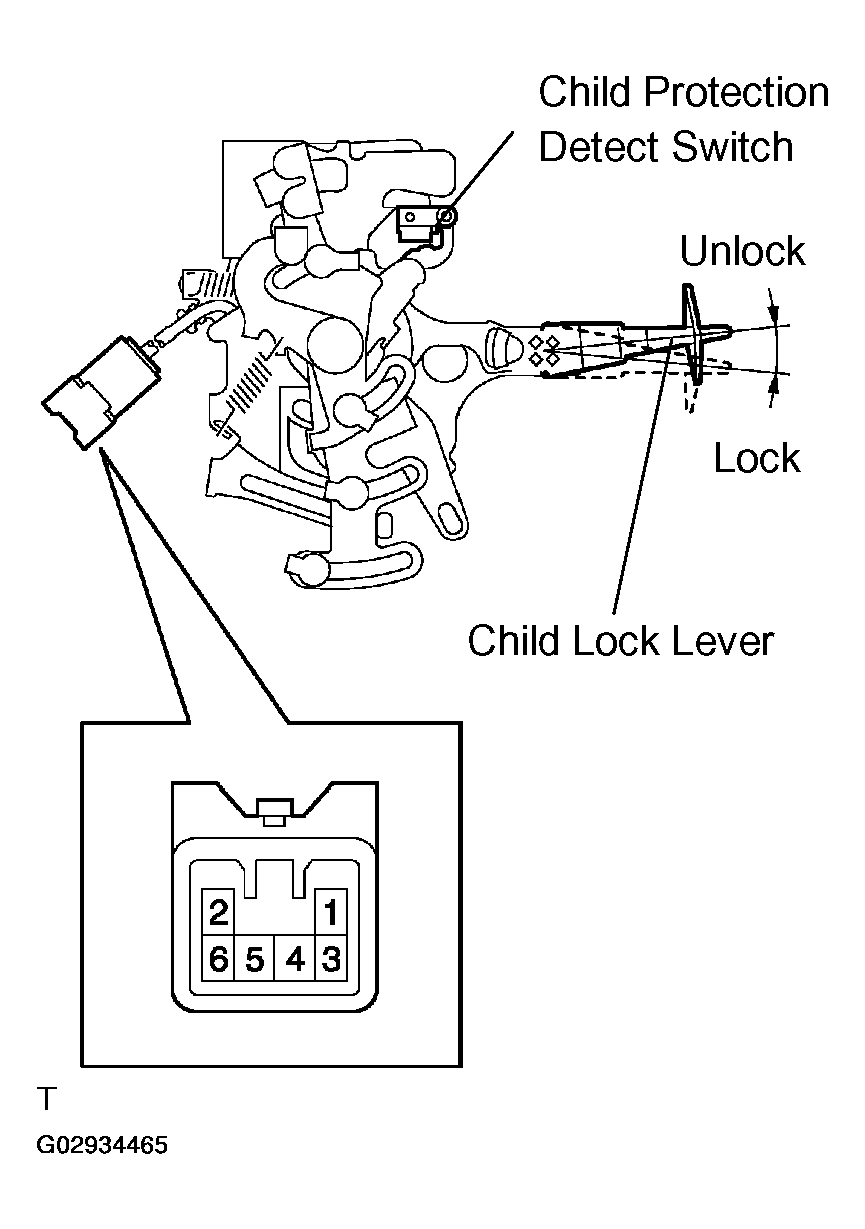

Fig 3: Inspecting Child Protection Detect Switch

Standard:

TERMINAL 4-5 CONDITION

Terminal No.	Lever Position	Specified Condition
4 - 5	Unlock	10 kΩ or higher
4 - 5	Lock	Below 1 Ω

NG: REPLACE SLIDE DOOR LOCK REMOTE CONTROL SUB-ASSY LH
OK: Go to next step.

CHECK WIRE HARNESS (SLIDE DOOR LOCK REMOTE CONTROL ASSY LH (CHILD PROTECTION DETECT SWITCH) - POWER SLIDE DOOR ECU LH)

Disconnect the S20 switch and P25 ECU connectors.

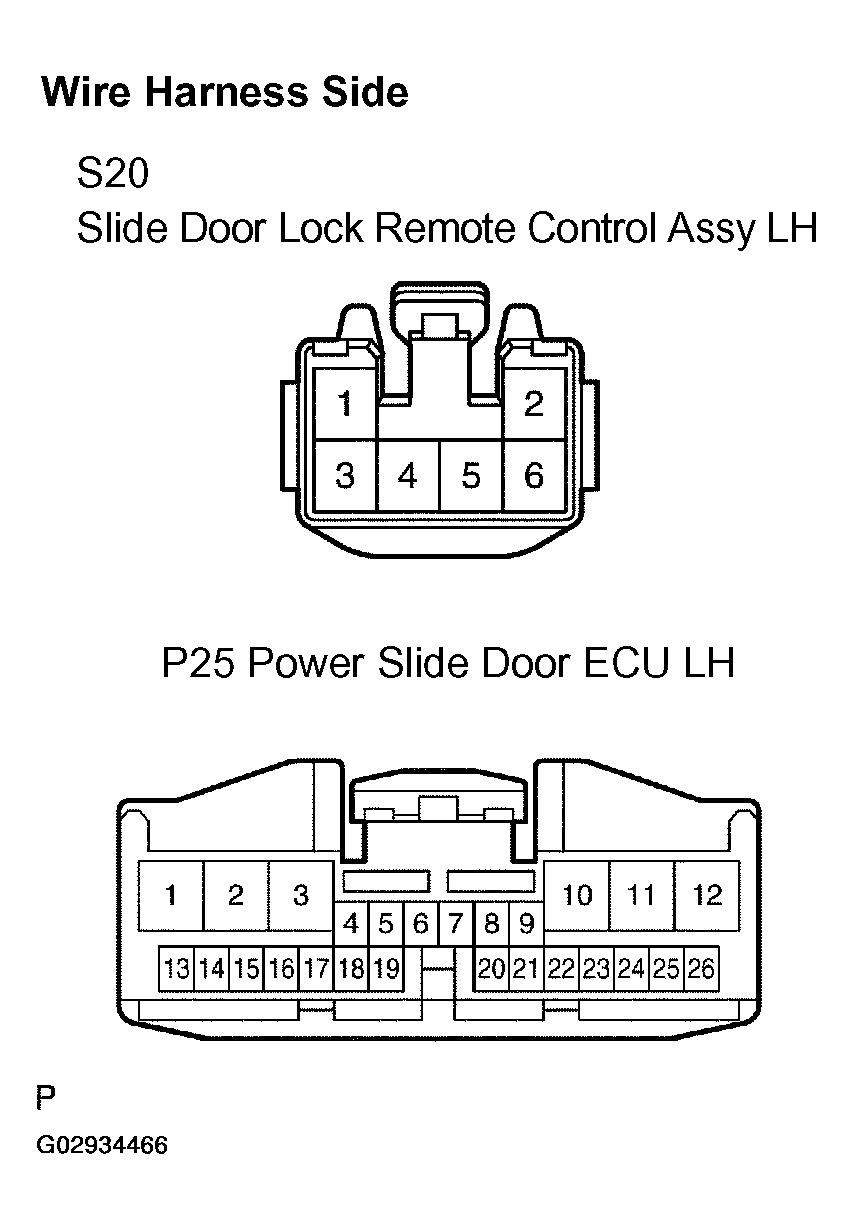

Fig 4: Disconnecting (S20) Switch & P25 ECU Connector

Check the resistance between the wire harness side connectors.

Standard (Check for open circuit):

TERMINAL S20-5 OPEN CIRCUIT

Terminal No.	Specified Condition
S20-5 - P25-18 (CPSW)	Below 1 Ω

Check the resistance between the S20 switch connector and body ground.

Standard (Check for open circuit):

TERMINAL S20-4 OPEN CIRCUIT

Terminal No.	Specified Condition
S20-4 - Body ground	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: REPLACE POWER SLIDE DOOR ECU LH
