Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT TELEVISION DISPLAY ASSY
    1. It checks whether the DVD display is expressed as television display assy.

      Standard: The DVD image is displayed.

    1. NG: REPLACE TELEVISION DISPLAY ASSY (See  REPLACEMENT  )
    2. OK: Go to next step.
  2. CHECK HARNESS AND CONNECTOR (TELEVISION DISPLAY ASSY - MULTI-DISPLAY CONTROLLER SUB-ASSY)

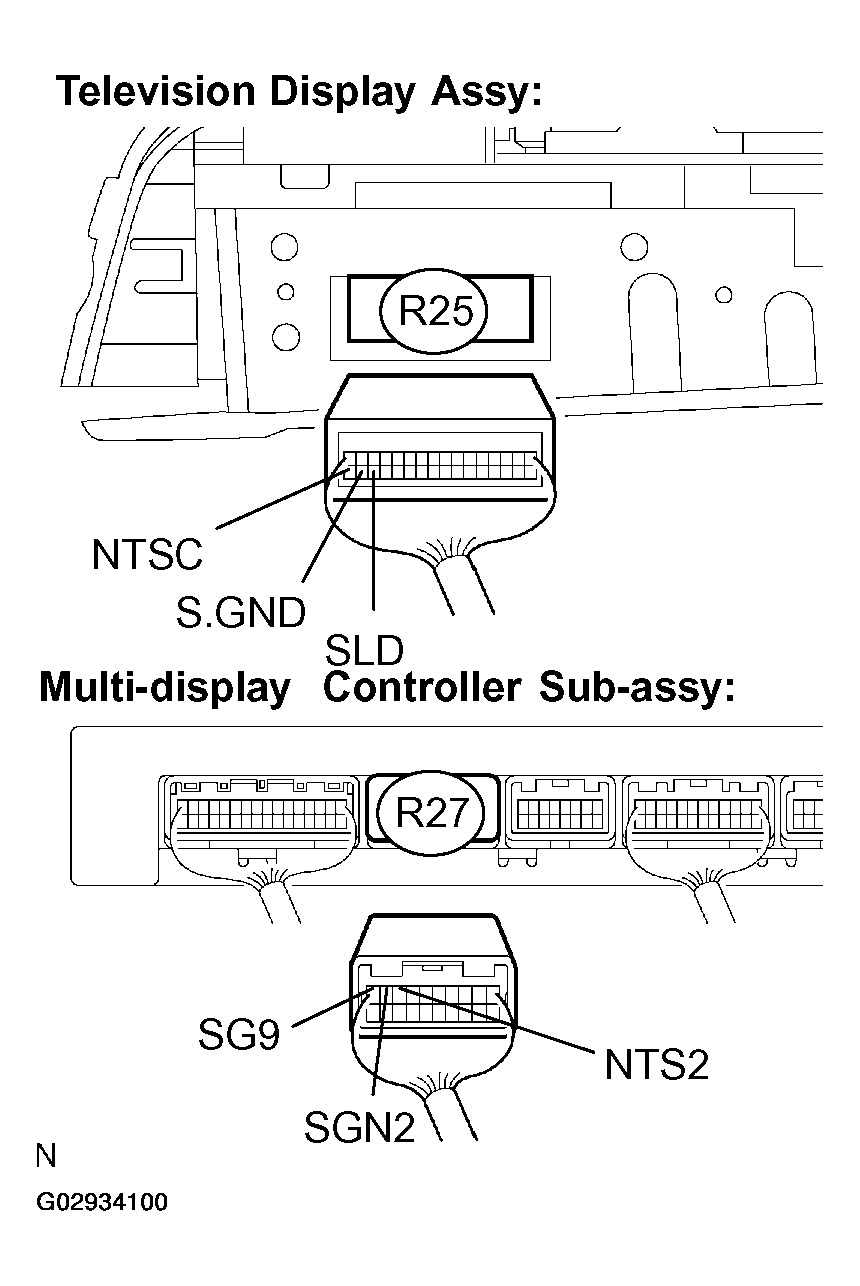

    Fig 1: Identifying Television Display R25 & Multi Display Controller Sub Assy R27
    G02934100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector from the television display assy and multi-display controller sub-assy.
      1. Check continuity between the terminals at each condition, as sown in the chart.

        Standard:

        TESTER CONNECTION & SPECIFIC CONDITION

        Tester connection Specified condition
        NTSC - NTS2 Continuity
        S.GND - SGN2 Continuity
        SLD - SG9 Continuity
      2. Check for a short between the terminals at each condition, as shown in the chart.

        Standard:

        TESTER CONNECTION & SPECIFIC CONDITION

        Tester connection Specified condition
        NTSC - Body ground No continuity
        S.GND - Body ground No continuity
        SLD - Body ground No continuity
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: Go to next step.
  3. CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY CONTROLLER SUB-ASSY - RADIO RECEIVER ASSY)
    1. Disconnect the connector from the multi-display controller sub-assy and radio receiver assy.
      1. Check continuity between the terminals at each condition, as shown in the chart.

        Standard:

        TESTER CONNECTION & SPECIFIC CONDITION

        Tester connection Specified condition
        NTS1 - VAL+ Continuity
        SGN1 - ADPG Continuity
        SG3 - VA- Continuity
      2. Check for a short between the terminals at each condition, as shown in the chart.

        Standard:

        TESTER CONNECTION & SPECIFIC CONDITION

        Tester connection Specified condition
        NTS1 - Body ground No continuity
        SGN1 - Body ground No continuity
        SG3 - Body ground No continuity

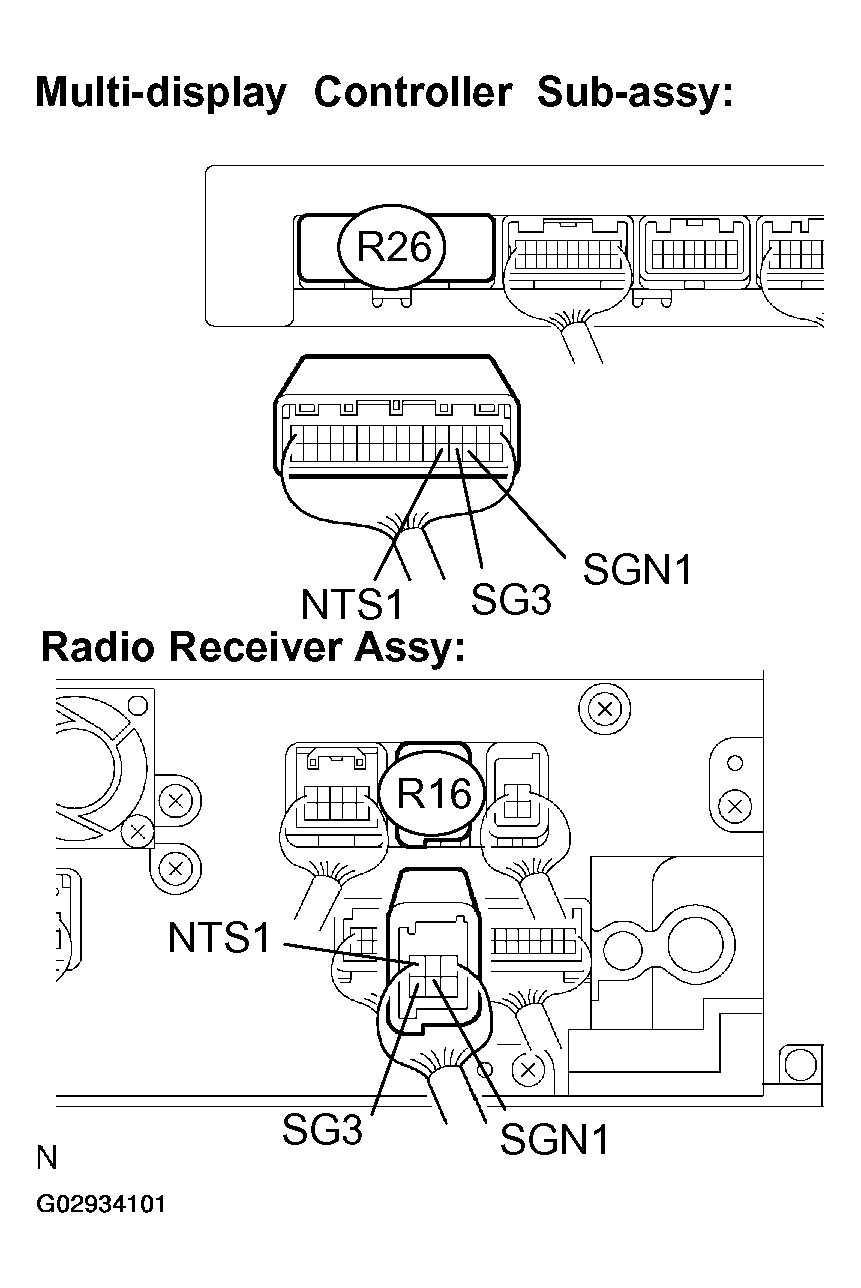

        Fig 2: Identifying Multi Display Control Sub Assy R26 & Radio Receiver Assy R16
        G02934101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: Go to next step.
  4. REPLACE RADIO RECEIVER ASSY (See  REPLACEMENT  )
    1. OK: SYSTEM OK
    2. NG: REPLACE MULTI-DISPLA Y CONTROLLER SUB-ASSY (See  REPLACEMENT  )
