Front Door: Components

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

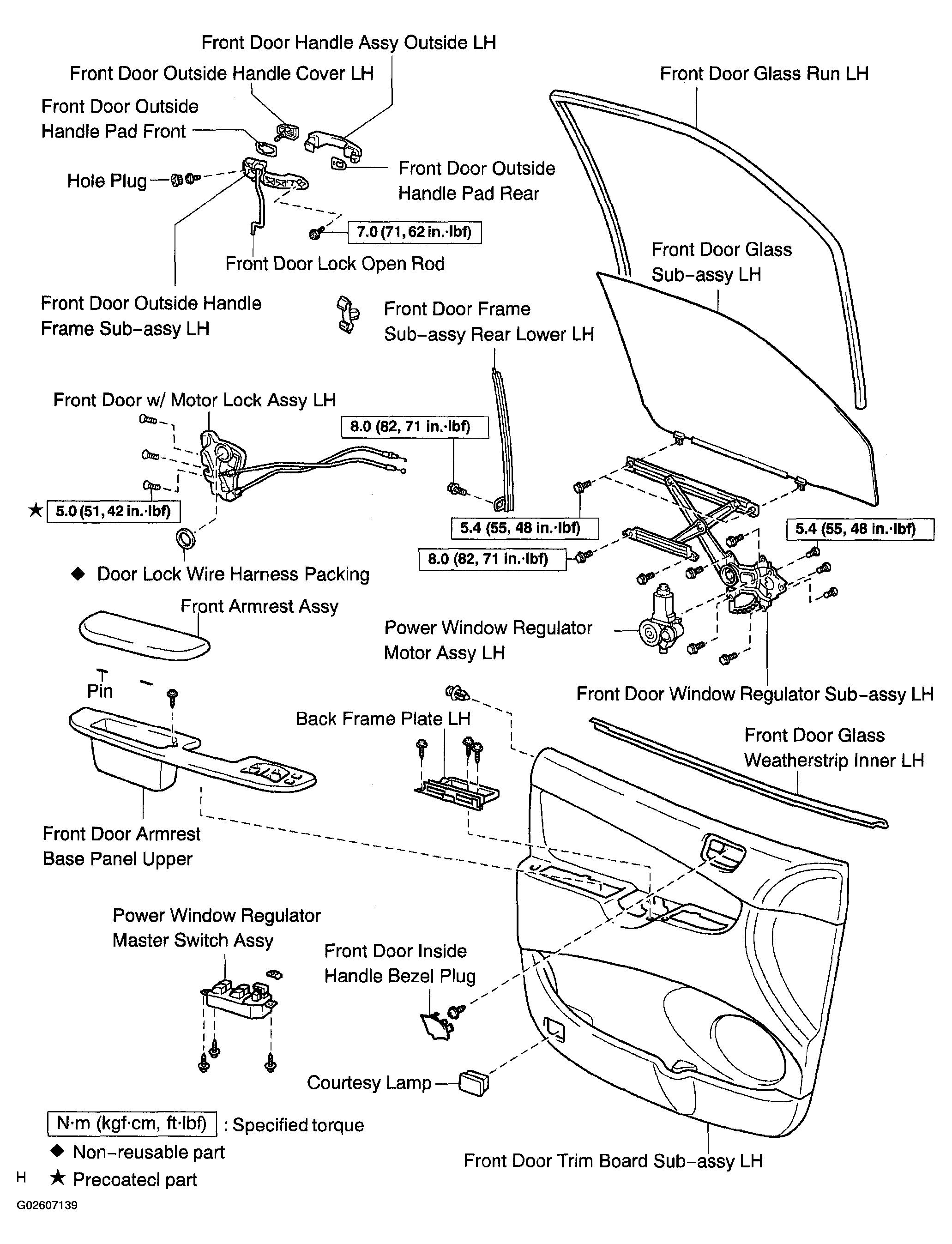

Fig 1: Identifying Front Door Replacement Components With Torque Specifications (1 Of 2)
G02607139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

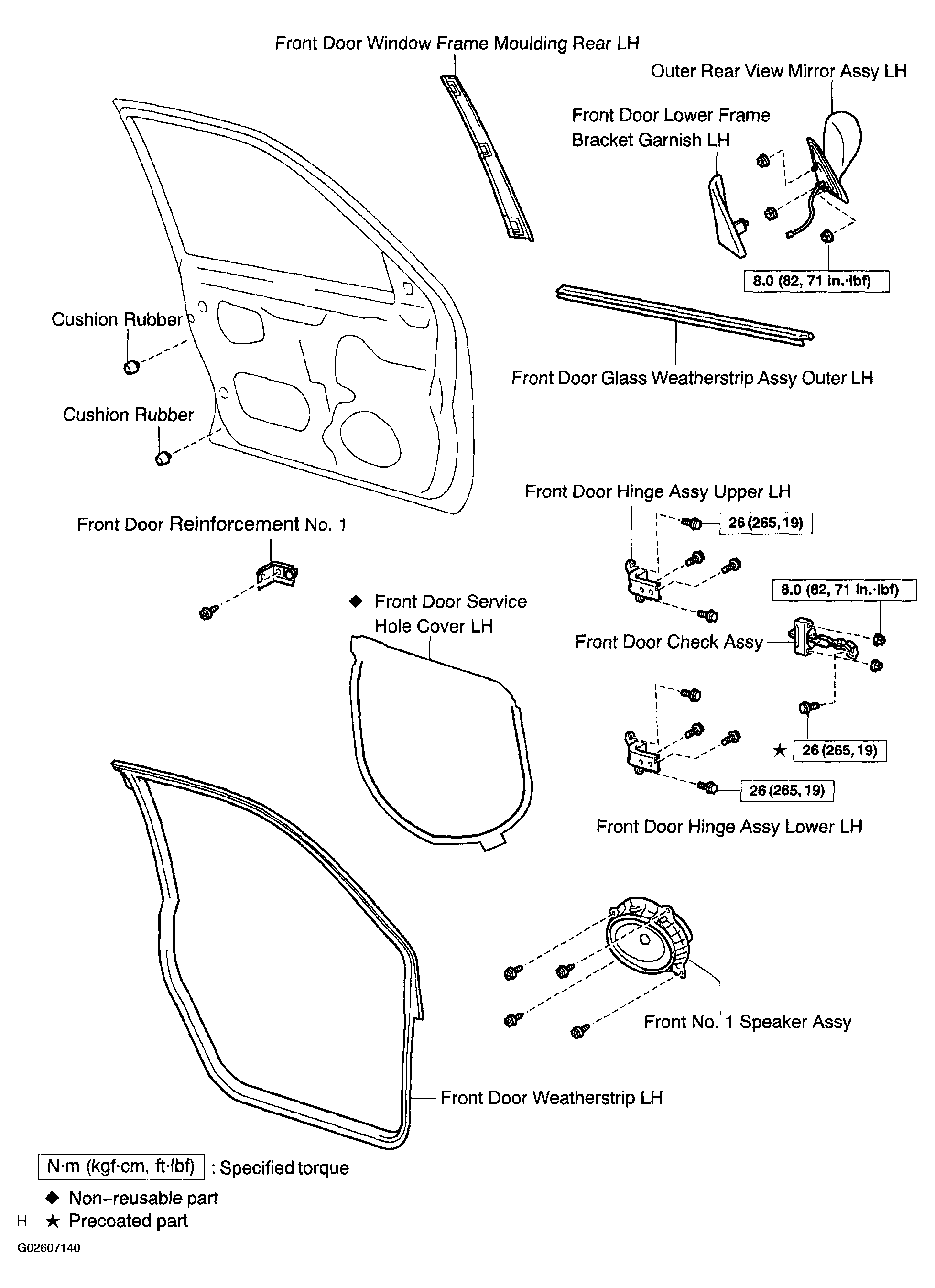

Fig 2: Identifying Front Door Replacement Components With Torque Specifications (2 Of 2)
G02607140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
