Combination Meter ASSY: Overhaul

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY
    1. Remove the 2 clips.
    2. Pull the instrument cluster finish panel sub-assy rearward to remove it.

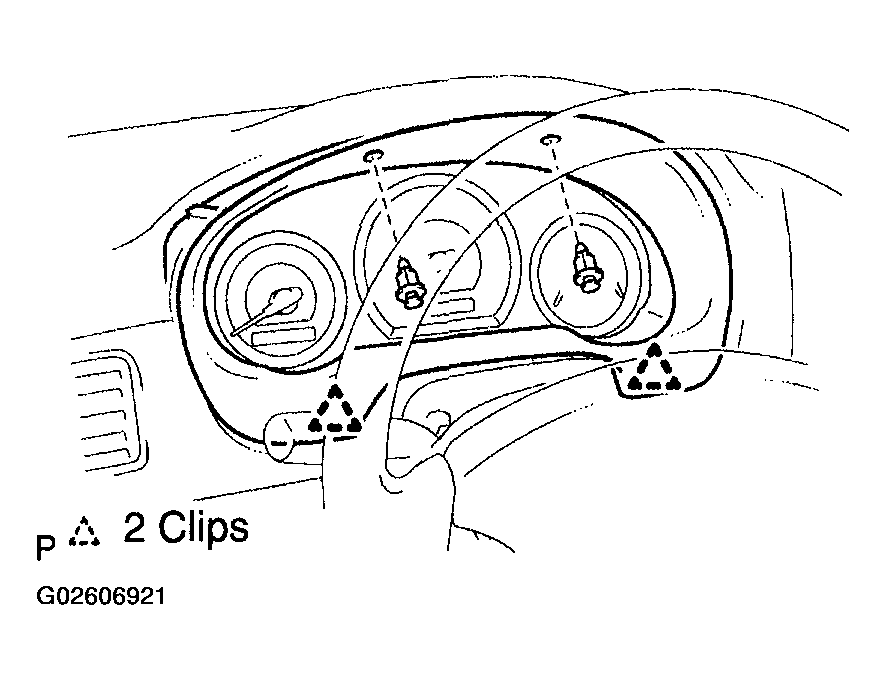

    Fig 1: Removing Clips
    G02606921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE COMBINATION METER ASSY
    1. Remove the 4 screws.
    2. Pull out the combination meter assy, then disconnect the connectors.

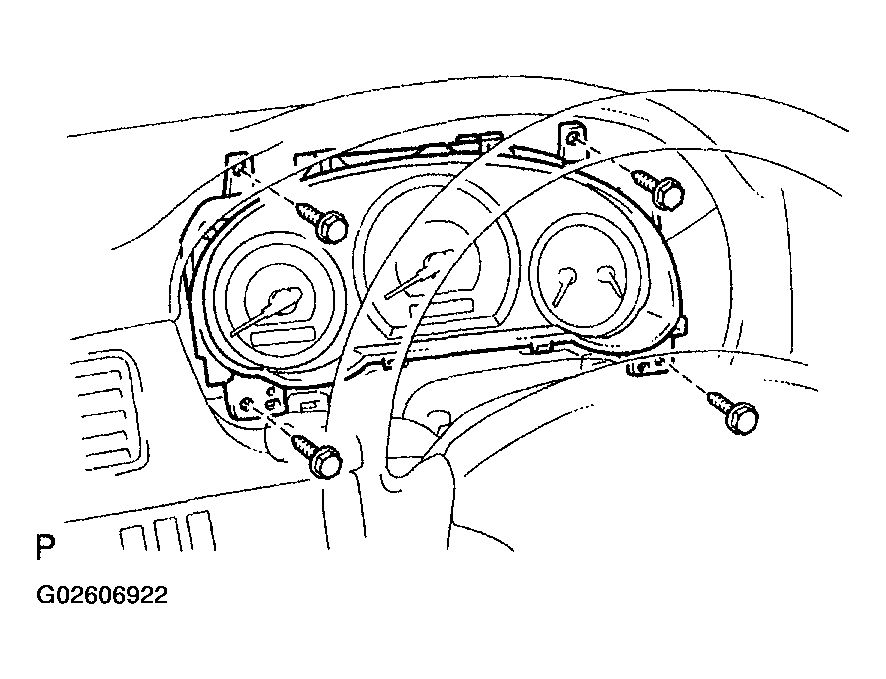

    Fig 2: Removing Screws & Combination Meter
    G02606922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE COMBINATION METER GLASS
    1. Remove the 2 screws.
    2. Disengage the 6 claws and remove the combination meter glass.

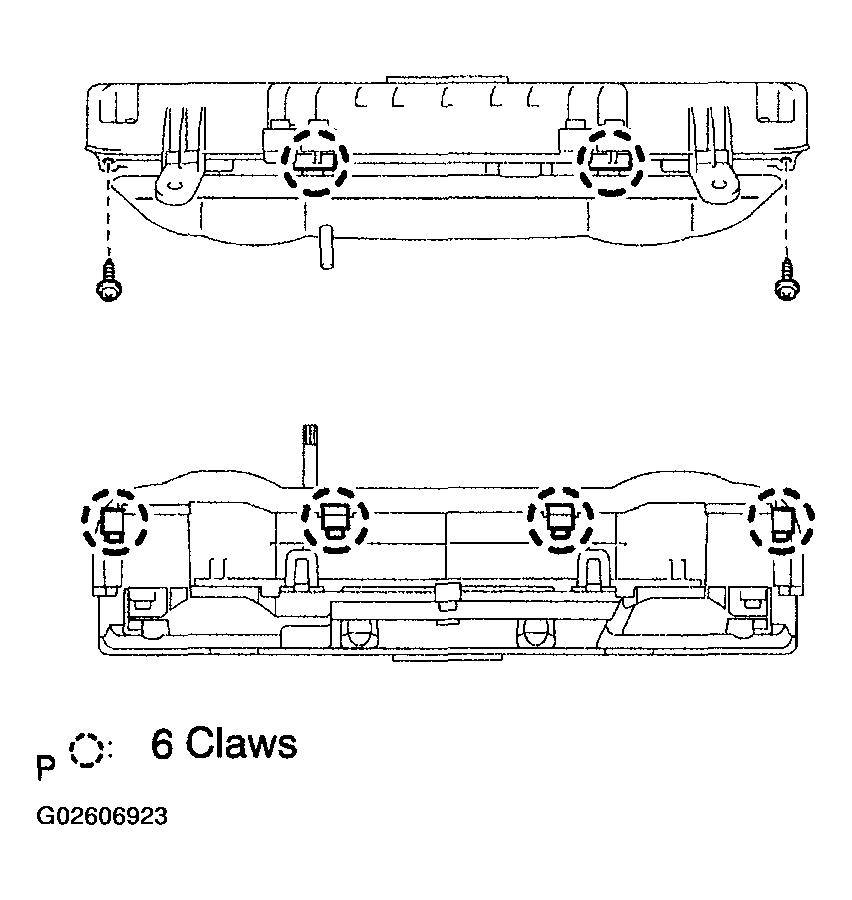

    Fig 3: Removing Screws
    G02606923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
