Accessory Meter ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ROOF CONSOLE BOX ASSY (See  REPLACEMENT  )
  2. REMOVE ACCESSORY METER ASSY
    1. Using a torx® socket wrench (T10), remove the 5 screws and accessory meter assy.

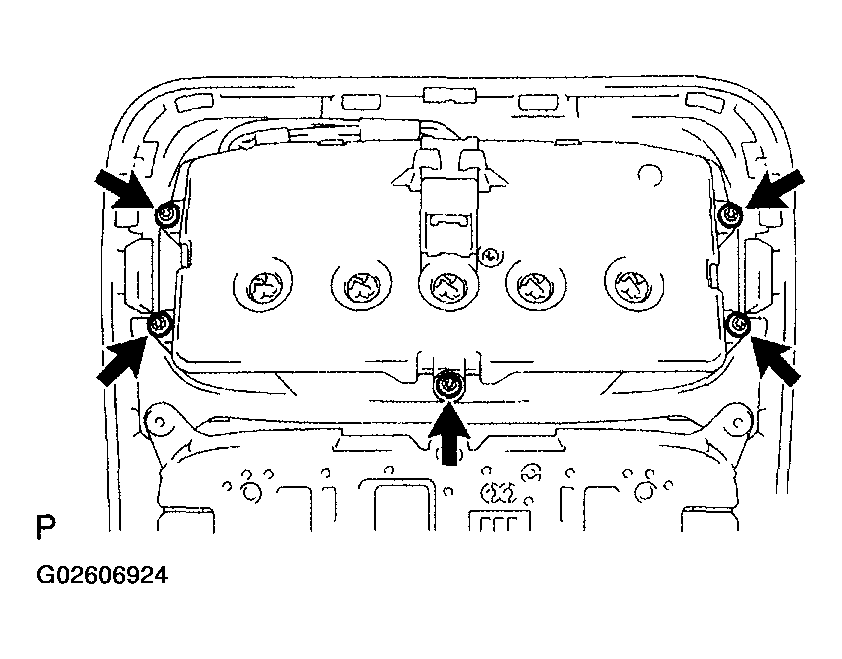

    Fig 1: Removing Screws And Accessory Meter Assy
    G02606924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
