Stereo Component Speaker ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

See COMPONENTS

REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH (See REPLACEMENT )
REMOVE STEREO COMPONENT SPEAKER ASSY
1. Disconnect the connector and remove the 2 screws and the stereo component speaker assy.

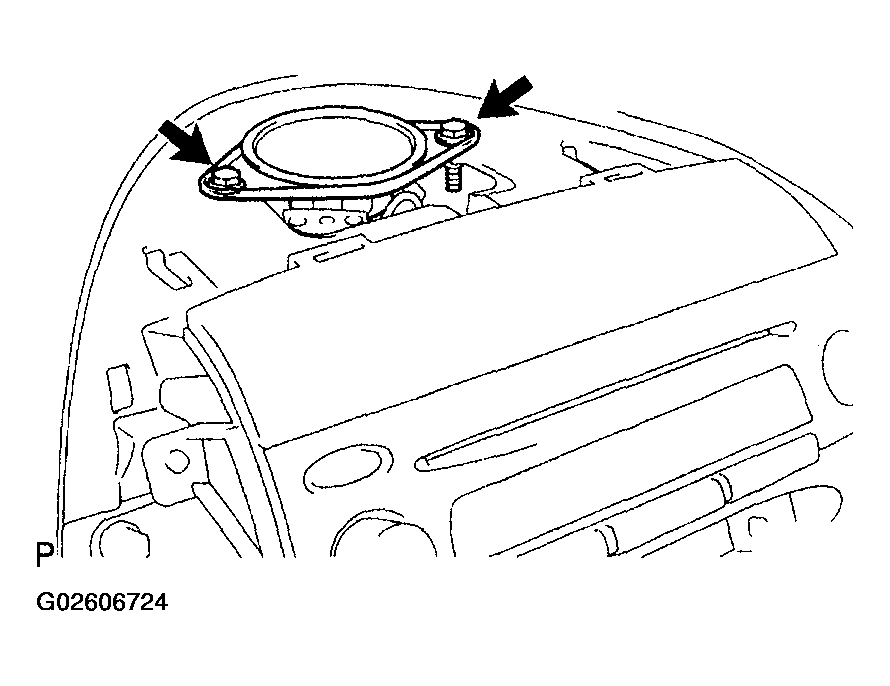

Fig 1: Removing Stereo Component Speaker Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEREO COMPONENT SPEAKER ASSY
1. Connect the connector.
2. Install the stereo component speaker assy with the 2 screws.
NOTE: Tighten the screws in order shown in Fig 2 to install the stereo component speaker assy.

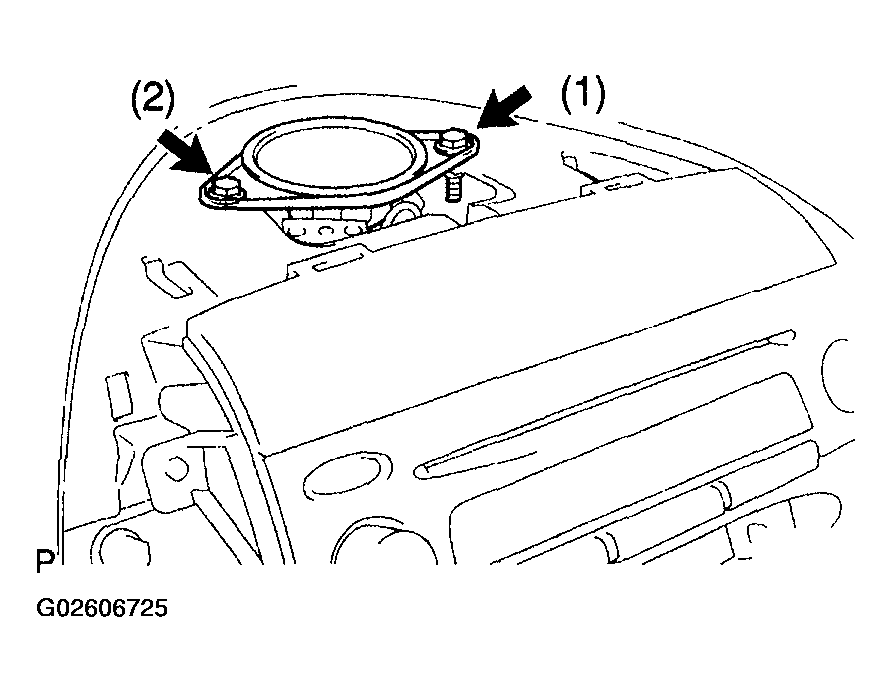

Fig 2: Installing Stereo Component Speaker Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
