Stereo Component Amplifier ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

See COMPONENTS

REMOVE GLOVE COMPARTMENT DOOR ASSY (See REPLACEMENT )
REMOVE STEREO COMPONENT AMPLIFIER ASSY
1. Disconnect the connectors.
2. Remove the 2 nuts and the stereo component amplifier assy.

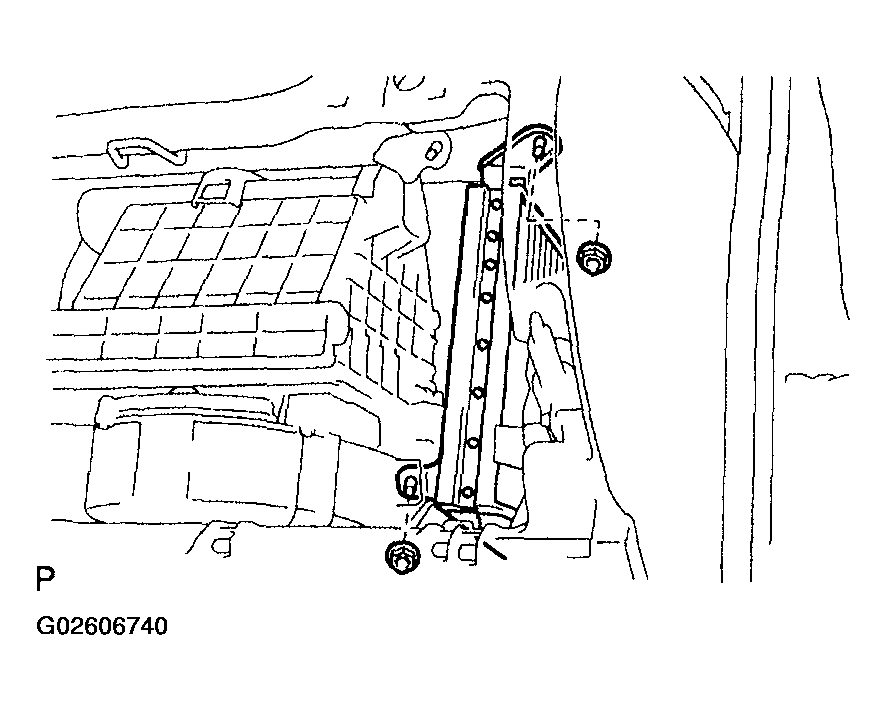

Fig 1: Removing Stereo Component Amplifier Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
