Navigation Antenna ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

See COMPONENTS

REMOVE INSTRUMENT PANEL SUB-ASSY W/ PASSENGER AIRBAG ASSY (See REPLACEMENT )
HINT:

Refer to the instructions for removal of the instrument panel sub-assy w/ passenger airbag assy.
REMOVE NAVIGATION ANTENNA ASSY
1. Release the 3 clamps and remove the 2 screws and the navigation antenna assy.

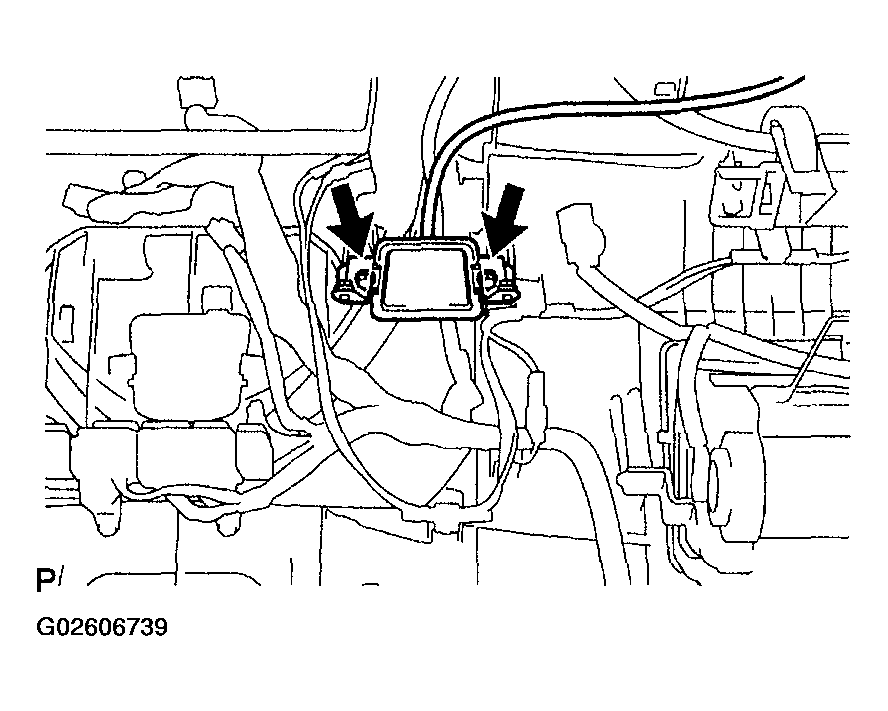

Fig 1: Removing Navigation Antenna Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL SUB-ASSY W/ PASSENGER AIRBAG ASSY (See REPLACEMENT )
