Wiper And Washer System: Inspection

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. WINDSHIELD WIPER SWITCH ASSY
    1. Continuity Check
      1. Check the continuity between each of the terminals of the connector.

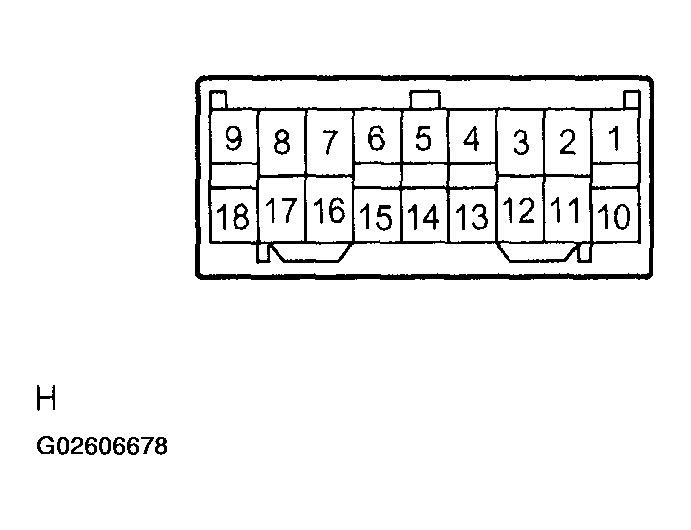

      Fig 1: Identifying Windshield Wiper Switch Connector Terminals
      G02606678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      Front Wiper Switch

      CONTINUITY CHECK

      Switch position Tester connection Specified condition
      MIST 7 (+1) - 17 (+B) Continuity
      OFF 7 (+1) - 16 (+S), 7 (+1) - 17 (+B) No continuity
      INT 7 (+1) - 16 (+S) Continuity
      LO 7 (+1) - 17 (+B) Continuity
      HI 8 (+2) - 17 (+B) Continuity

      Front Washer Switch

      CONTINUITY CHECK

      Switch position Tester connection Specified condition
      OFF 2 (EW) - 11 (WF) No continuity
      ON 2 (EW) - 11 (WF) Continuity

      Rear Wiper Switch

      CONTINUITY CHECK

      Switch position Tester connection Specified condition
      OFF 2 (EW) - 13 (C1R), 2 (EW) - 10 (+1R) No continuity
      INT 2 (EW) - 13 (C1R) Continuity
      ON 2 (EW) - 10 (+1R) Continuity

      Rear Washer Switch

      CONTINUITY CHECK

      Switch position Tester connection Specified condition
      OFF 2 (EW) - 12 (WR) No continuity
      ON (Rear wiper switch OFF side) 2 (EW) - 12 (WR) Continuity
      ON (Rear wiper switch ON side) 2 (EW) - 12 (WR), 2 (EW) - 10 (+1R) Continuity
    2. Intermittent Operation Check
      1. Connect the voltmeter (+) terminal to the terminal 7 (+1) of the connector, the voltmeter (-) terminal to the terminal 2 (EW) of the connector.
      2. Connect the battery (+) to the terminal 7 (+B) of the connector, the battery (-) to the terminal 2 (EW) and the terminal 6 (+S) of the connector.
      3. Turn the wiper switch into the INT position.
      4. Connect the battery (+) to the terminal 16 (+S) of the connector for 5 seconds.
      5. Connect the battery (-) to the terminal 16 (+S) of the connector. Operate the intermittent wiper relay and check voltage between the terminal 7 (+1) and the terminal 2 (EW).

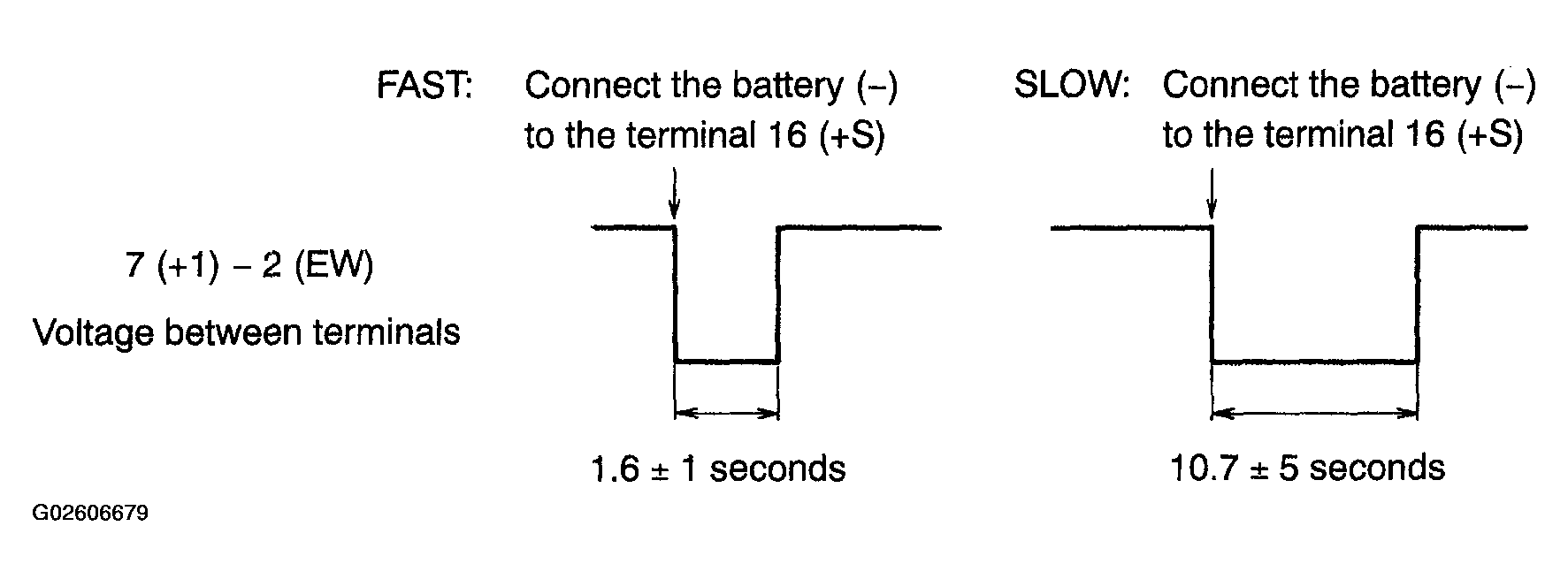

      Fig 2: Checking Intermittent Operation Pattern
      G02606679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Operation Check (Front Wiper)
      1. Turn the wiper switch into the OFF position.
      2. Connect the battery (+) to the terminal 17 (+B) of the connector, the battery (-) to the terminal 16 (+S) and 2 (EW) of the connector.
      3. Connect the voltmeter (+) terminal to the terminal 7 (+1) of the connector, the voltmeter (-) terminal to the terminal 2 (EW) of the connector. Turn the washer switch ON and OFF and check voltage between the terminal 7 (+1) and the terminal 2 (EW).

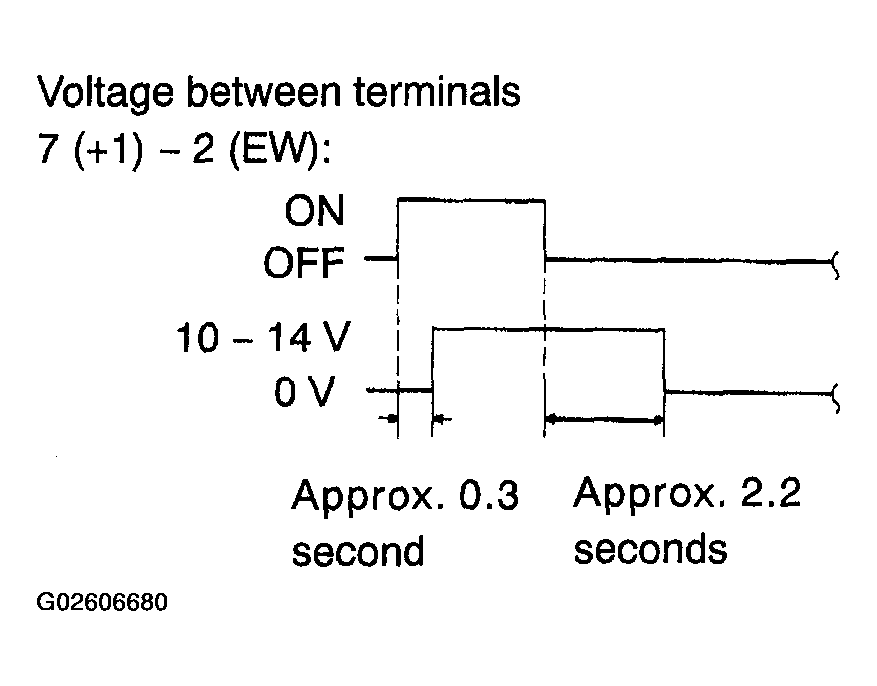

    Fig 3: Checking Operation (Front Wiper) Pattern
    G02606680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. WINDSHIELD WIPER MOTOR ASSY
    1. LO Operation Check
      1. Connect the battery (+) to the terminal 1 (+1) of the connector, the battery (-) to the terminal 5 (E) of the connector, and check that the motor operates at low speed (LO).
    2. HI Operation Check
      1. Connect the battery (+) to the terminal 4 (+2) of the connector, the battery (-) to the terminal 5 (E) of the connector, and check that the motor operates at high speed (HI).

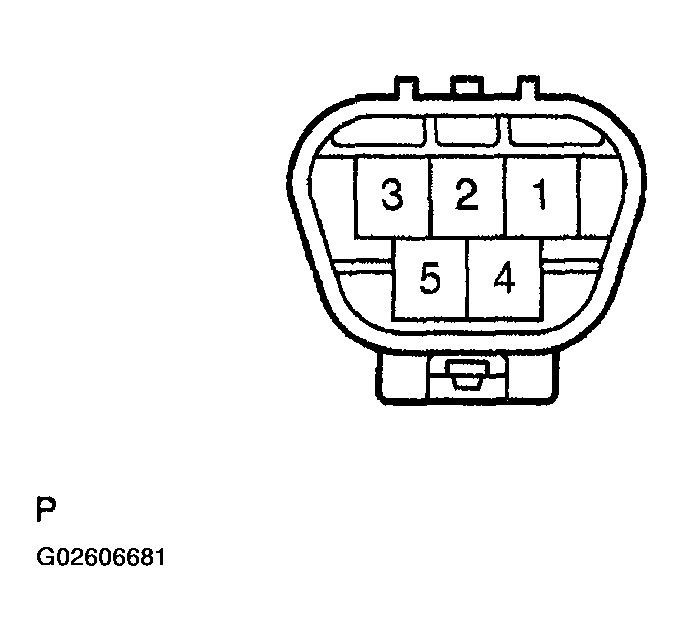

      Fig 4: Identifying Windshield Wiper Motor Connector Terminals
      G02606681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Automatic Stop Operation Check
      1. Connect the battery (+) to the terminal 1 (+1) of the connector, the battery (-) to the terminal 5 (E) of the connector. With the motor being rotated at low speed (LO), disconnect terminal 1 (+1) to stop the wiper motor operation at any position except the automatic stop position.
      2. Using SST, connect the terminal 1 (+1) and 3 (S), and the battery (+) to the terminal 2 (B) to restart the motor operation at low speed (LO).

        SST 09843-18040

      3. Check the automatic stop position.

      Standard: See  Fig 5  .

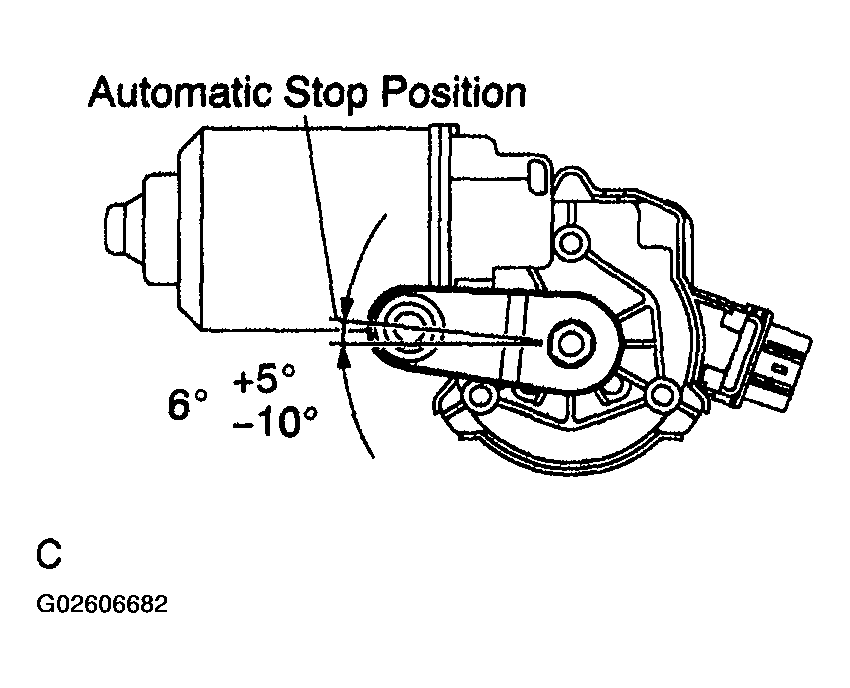

    Fig 5: Checking Automatic Stop Position
    G02606682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REAR WIPER MOTOR AND BRACKET ASSY
    1. Operation check
      1. Connect the battery (+) to the terminal 1 (+B) of the connector, the battery (-) to the terminal 3 (LS) of the connector and wire harness terminal of the rear wiper motor and bracket assy, then check that the rear wiper motor and bracket operate.

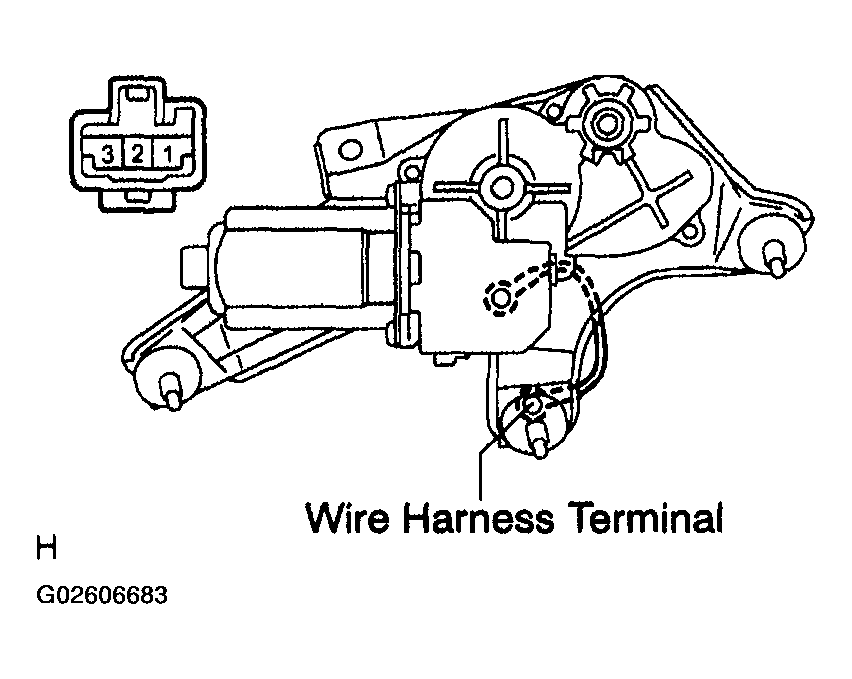

      Fig 6: Identifying Rear Wiper Motor Connector Terminals
      G02606683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Automatic Stop Position Operation Check
      1. Connect the battery (+) to the terminal 1 (+B) of the connector, the battery (-) to the terminal 3 (LS) of the connector and wire harness terminal of the rear wiper motor and bracket assy. With the motor being rotated disconnect the terminal 3 (LS) from the battery (-), then check that the wiper motor stops automatically to the automatic stop position.

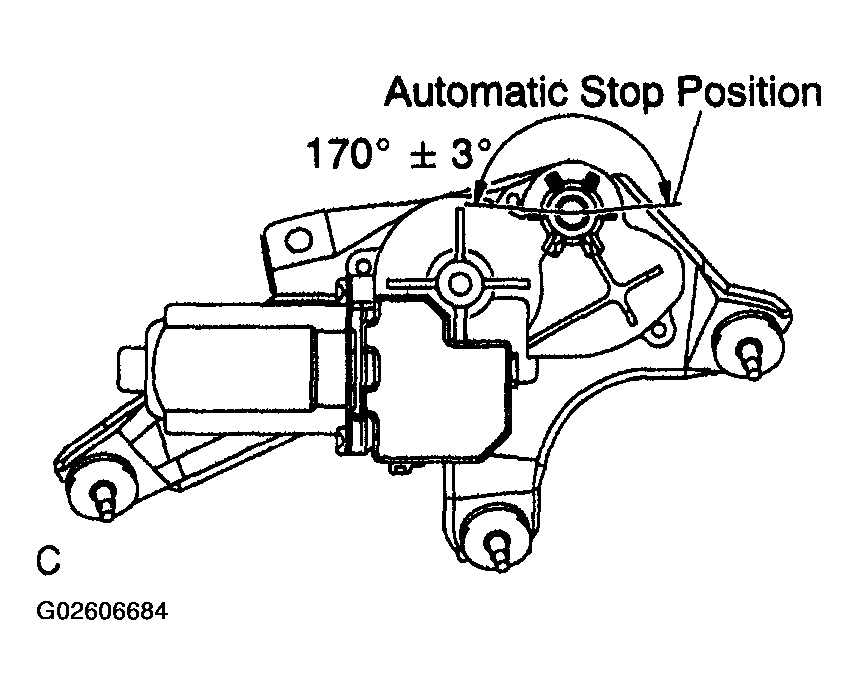

    Fig 7: Checking Automatic Stop Position Operation
    G02606684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
