Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

Instrument Panel Junction Block Assy

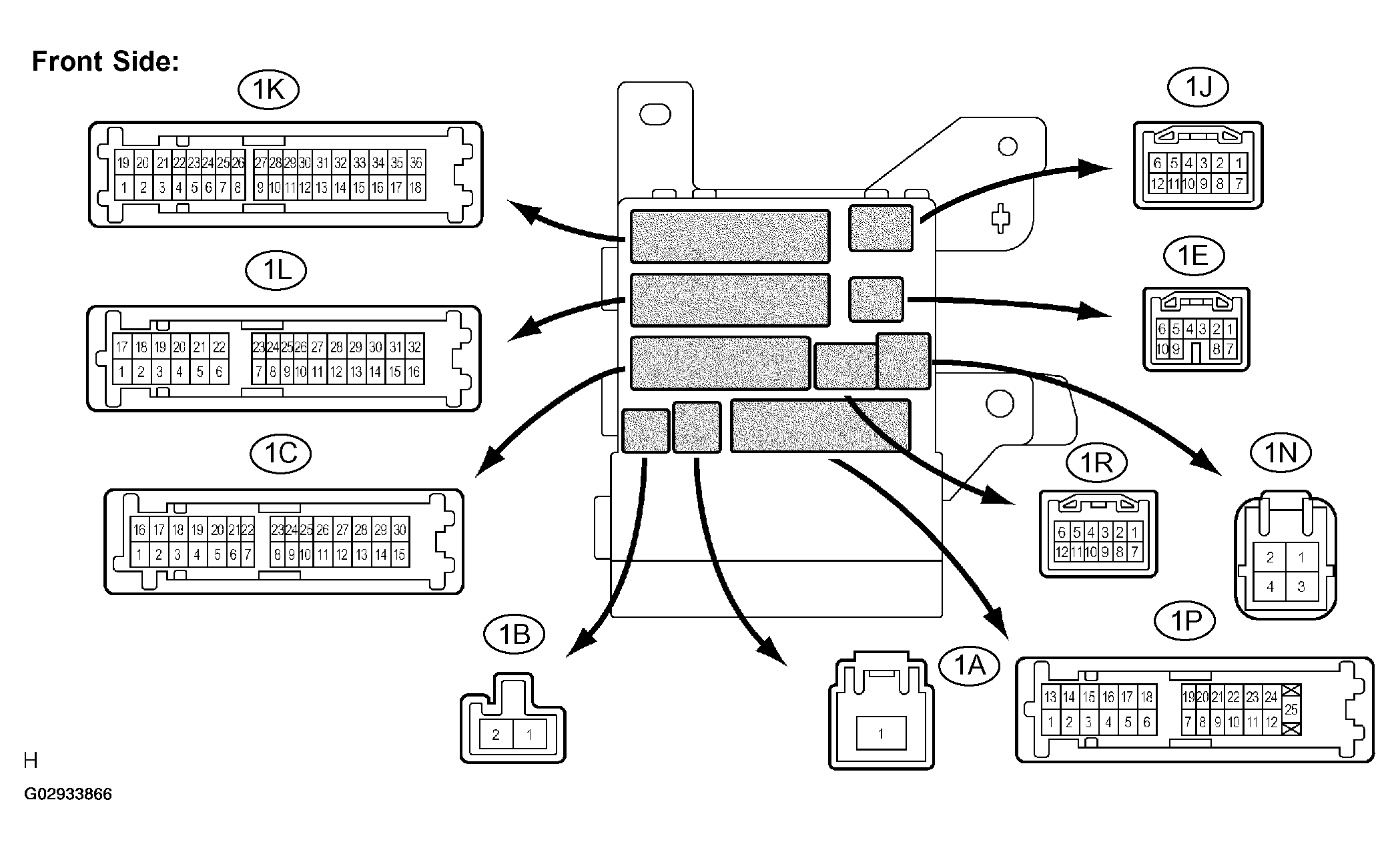

Fig 1: Identifying Front Side ECU Connectors of Instrument Panel Junction Block Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

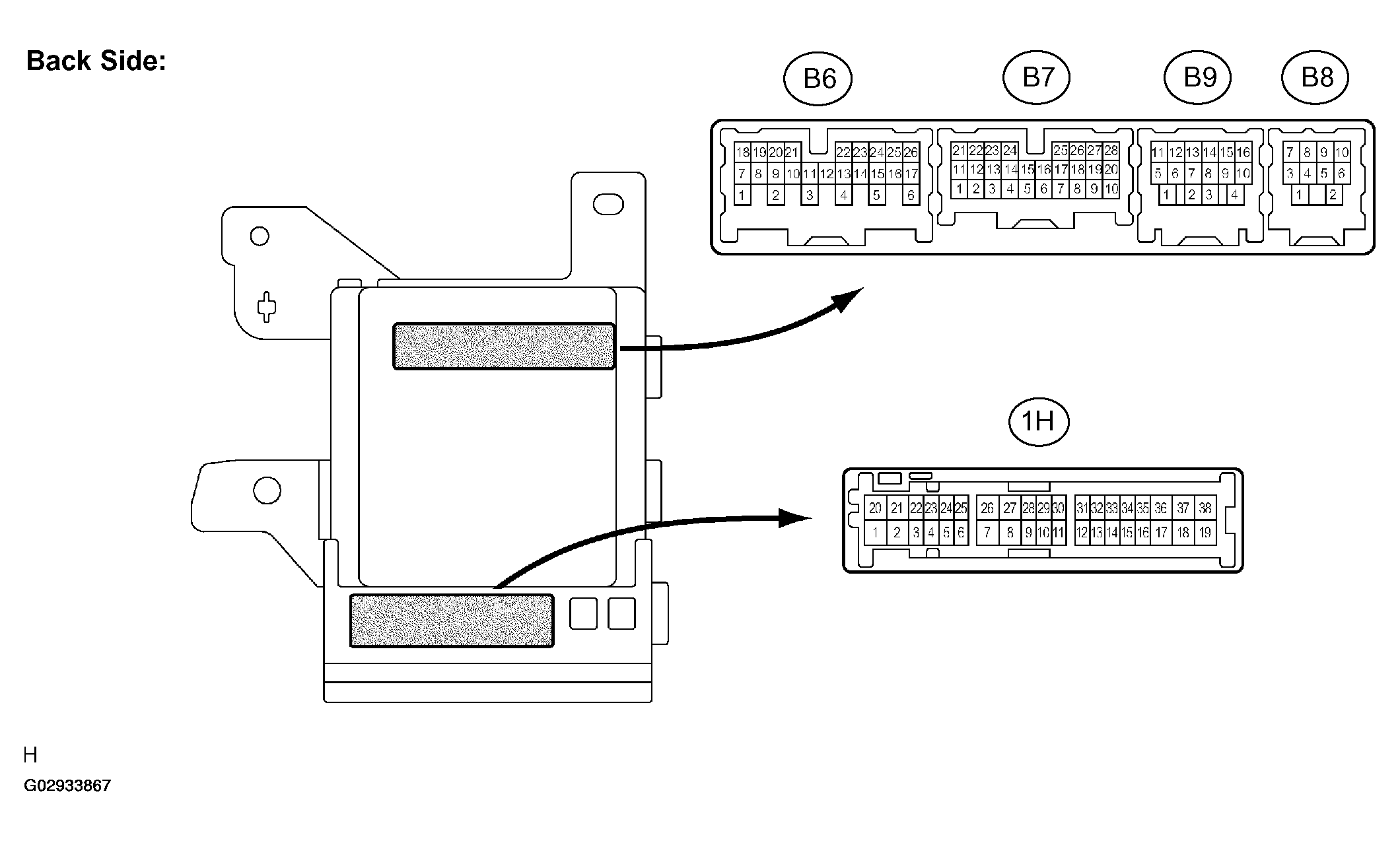

Fig 2: Identifying Back Side ECU Connectors of Instrument Panel Junction Block Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

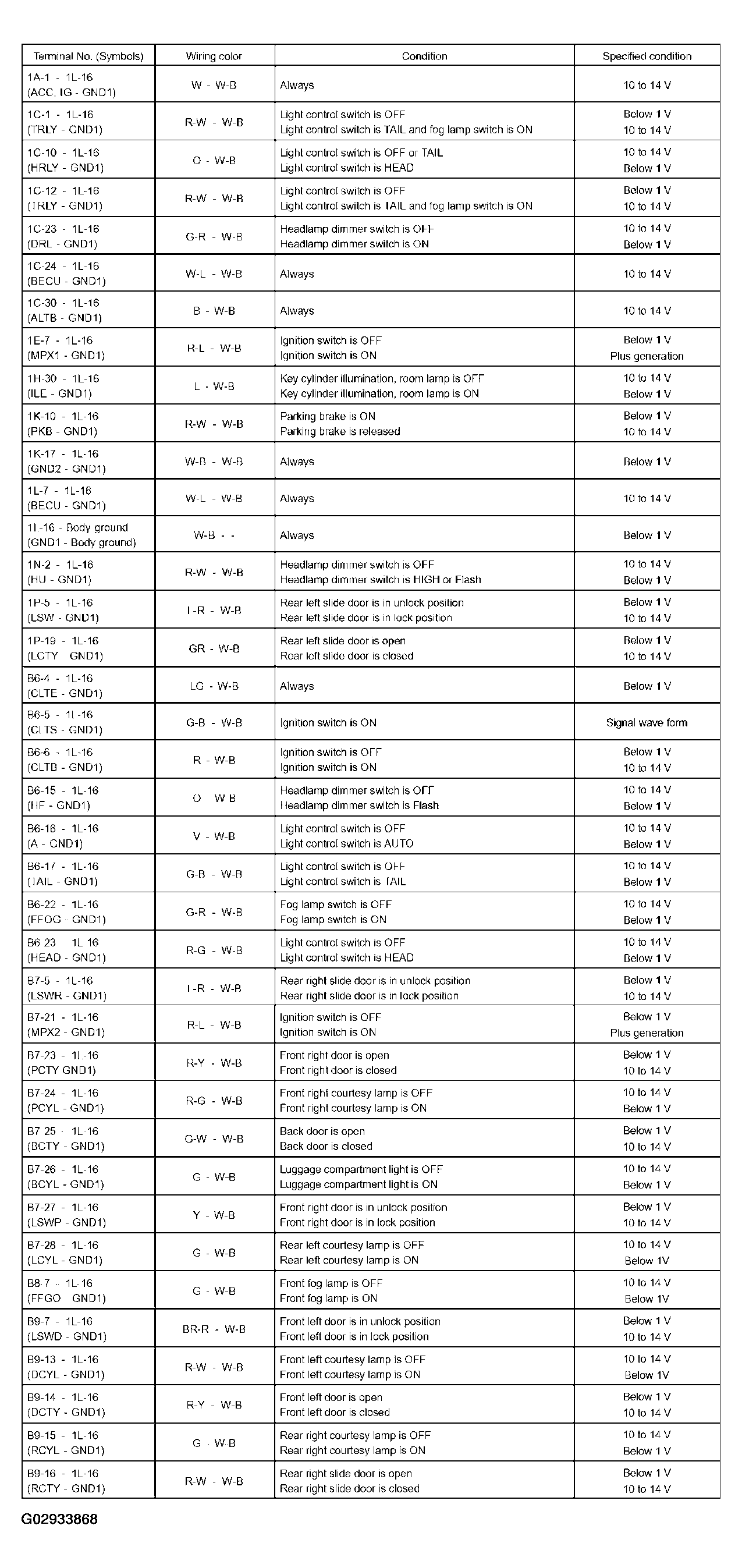

Fig 3: Terminal Description Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
