Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Start the inspection from step 1 in the case of using the hand-held tester, and start from step  2 in the case of not using the hand-held tester.
  1. PERFORM ACTIVE TEST USING HAND-HELD TESTER
    1. Connect the hand-held tester to DLC3.
    2. Turn the ignition switch ON and push the hand-held tester main switch ON.
    3. Select the item below in the ACTIVE TEST and then check that the relay operates.

    BODY NO.1:

    HEADLIGHT TEST DETAILS

    Item Test Details Diagnostic Note
    HEAD LIGHT Turn Headlight relay ON/OFF -
    1. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE  )
    2. NG: Go to next step.
  2. INSPECT HEADLAMP RELAY

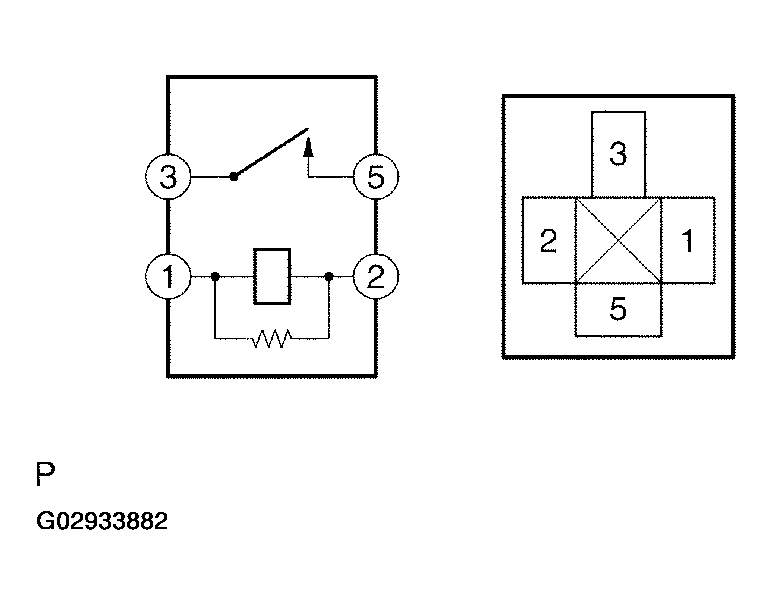

    Fig 1: Inspecting Headlamp Relay Continuity
    G02933882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Inspect headlamp relay continuity.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Condition Tester connection Specified condition
      Always 1 - 2 Continuity
      Always 3 - 5 No continuity
      Apply B+ between the terminal 1 and 2 3 - 5 Continuity
    1. NG: REPLACE HEADLAMP RELAY
    2. OK: Go to next step.
  3. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSY

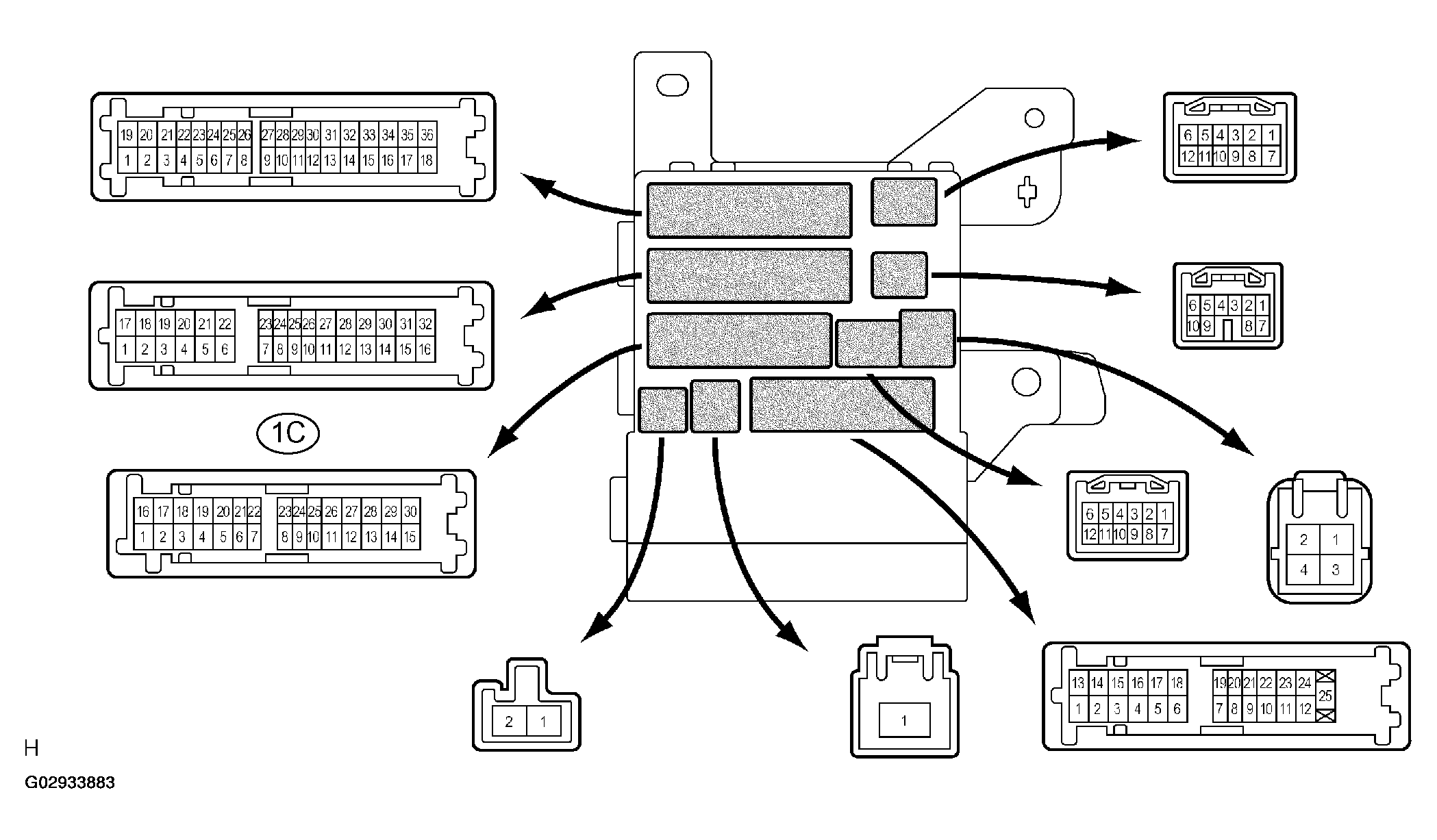

    Fig 2: Identifying Instrument Panel Junction Block Assy Connectors
    G02933883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure voltage between the terminal as shown in the chart below.

      Standard:

      TESTER CONNECTION SPECIFIED VOLTAGE

      Tester connection Condition Specified voltage (V)
      1C-10 - Body ground Light control switch OFF --> ON Below 1 V --> 10 to 14 V
    1. NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE  )
    2. OK: REPAIR OR REPLACE HARNESS OR CONNECTOR
