On-Vehicle Inspection

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK STEERING WHEEL FREEPLAY
    1. Stop the vehicle and face the tires straight ahead.
    2. Rock the steering wheel gently up and down with your hand, check the steering wheel freeplay.

      Maximum freeplay: 30 mm (1.18 in.)

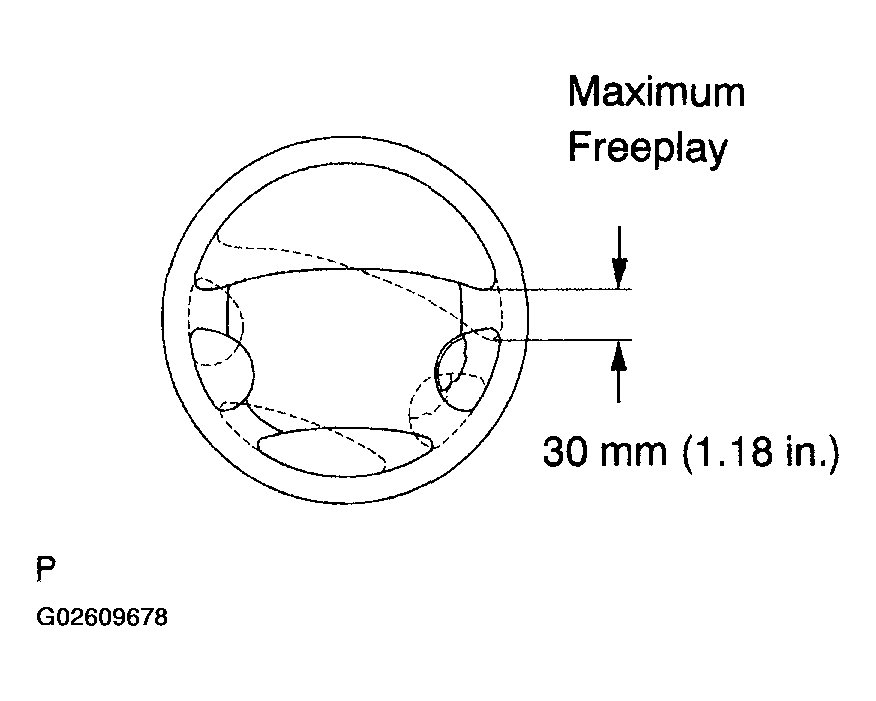

    Fig 1: Checking Steering Wheel Freeplay
    G02609678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
