Section 16 (Front Bumper): Components

WARNING: This page is about a different car, the 2004 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

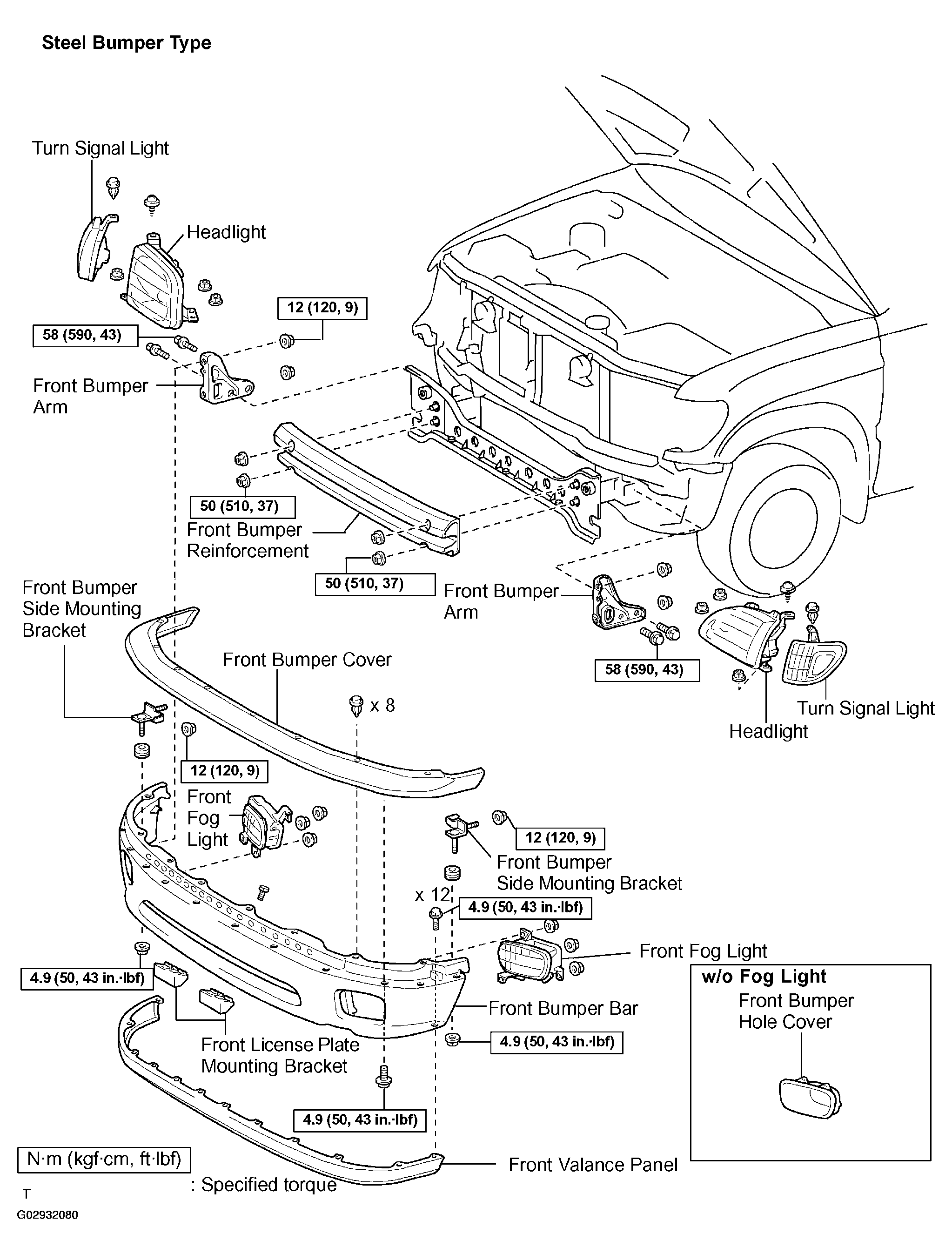

Fig 1: Disassembling Front Bumper Components (1 of 2)
G02932080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

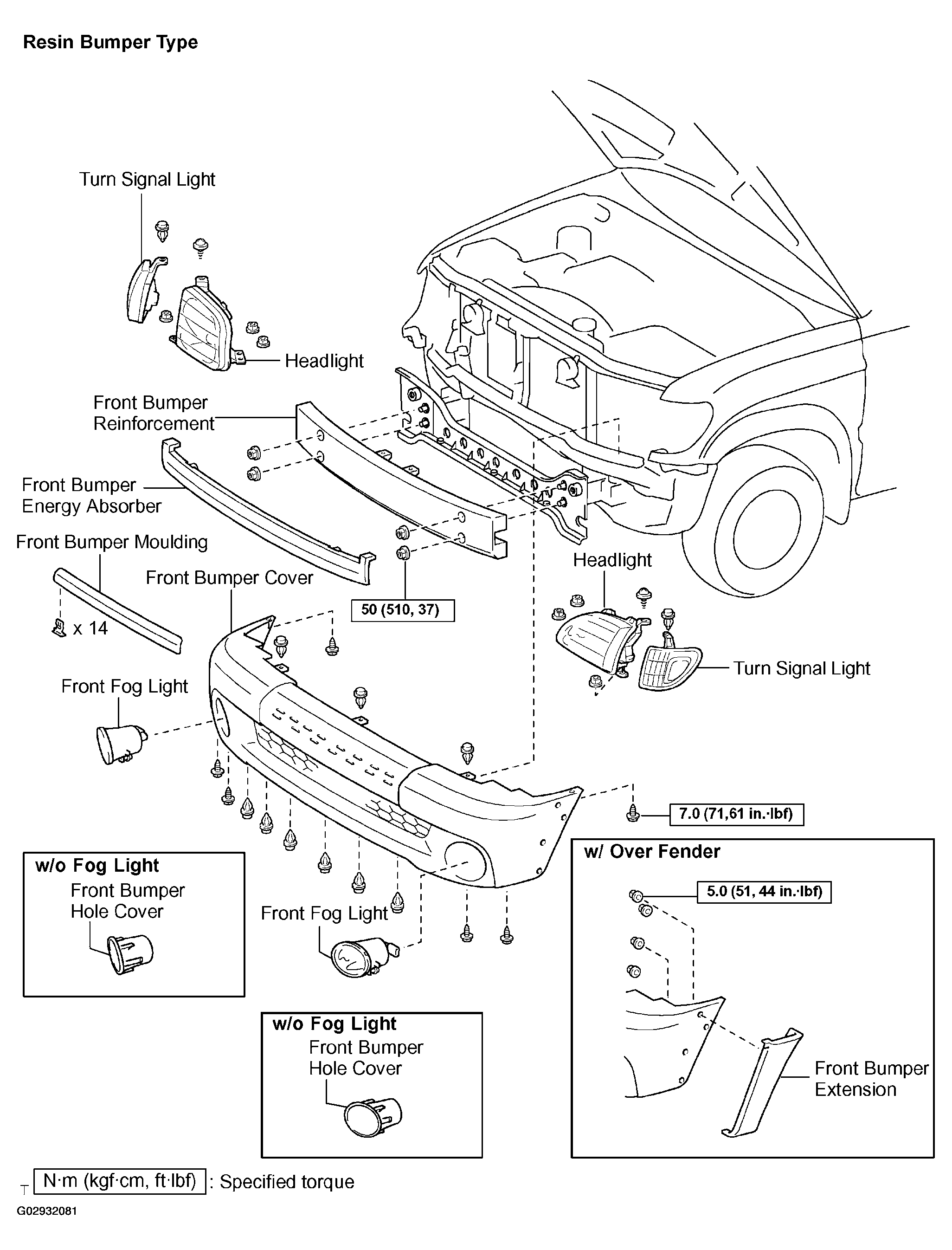

Fig 2: Disassembling Front Bumper Components (2 of 2)
G02932081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
