Rear Wheel Alignment: Inspection
WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT TIRE (See INSPECTION )
- MEASURE VEHICLE HEIGHT (See FRONT WHEEL ALIGNMENT
) NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specified valve.
- INSPECT TOE-IN

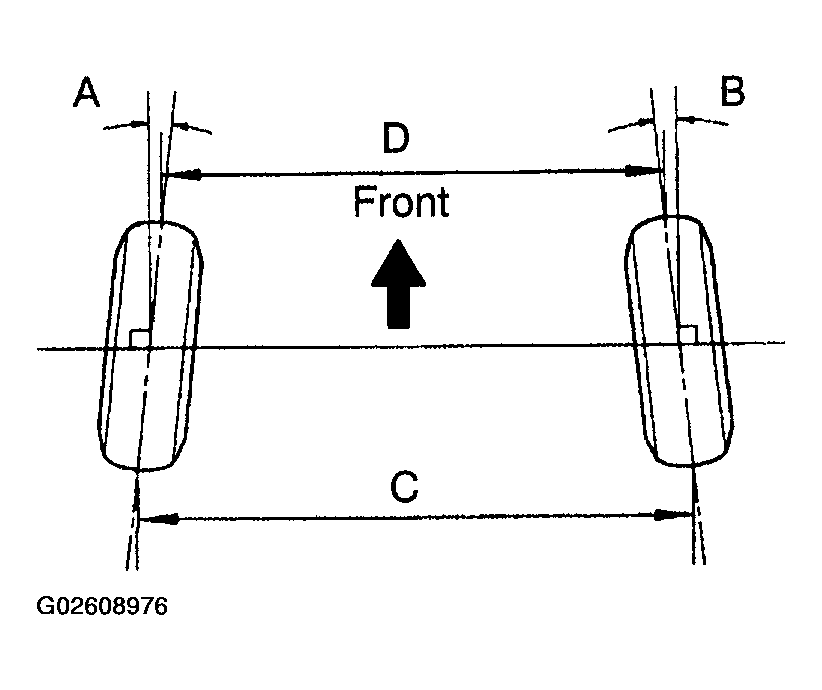

Toe-in:
TOE-IN SPECIFICATIONS2WD DRIVE TYPE Tire size Toe-in (total) 215/65R 16 A + B: 0°15' +/- 17' (0.25° +/- 0.28°) C - D: 2.7 +/- 3.0 mm (0.11 +/- 0.12 in.) 225/60R 17 A + B: 0°15' +/- 17' (0.25° +/- 0.28°) C - D: 2.8 +/- 3.0 mm (0.11 +/- 0.12 in.) 4WD DRIVE TYPE TIRE SIZE SPECIFICATIONS4WD DRIVE TYPE Tire size Toe-in (total) 225/60R 17 A + B: 0°07' +/- 17' (0.12° +/- 0.28°) C - D: 1.3 +/- 3.0 mm (0.05 +/- 0.12 in.) If the toe-in is not within the specified value, inspect the suspension parts and replace them if necessary.
- INSPECT CAMBER
- Install the camber-caster-kingpin gauge or position the vehicle on the wheel alignment tester.
- Inspect the camber.
Camber:
CAMBER SPECIFICATIONS2WD DRIVE TYPE: Camber Right-left error -1°22' +/- 30' (-1.37° +/- 0.5°) 30' (0.5°) or less 4WD DRIVE TYPE: Camber Right-left error -1°25' +/- 30' (-1.42° +/- 0.5°) 30' (0.5°) or less If the measured valve is not within the specified value, inspect the suspension parts for damage and/or wear and replace them if necessary because camber is not adjustable.
