No. 2 Radiator ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN COOLANT (See  ENGINE COOLANT   )
  2. DISCONNECT RADIATOR HOSE INLET
  3. DISCONNECT RADIATOR HOSE OUTLET
  4. DISCONNECT OIL COOLER INLET HOSE NO. 1
  5. DISCONNECT OIL COOLER OUTLET HOSE NO. 1
  6. REMOVE FRONT BUMPER COVER (See  REPLACEMENT  )
  7. REMOVE AIR CLEANER CAP SUB-ASSY (See  REPLACEMENT  )
  8. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSY
  9. REMOVE AIR CLEANER INLET NO. 2 (See  REPLACEMENT  )
  10. REMOVE AIR CLEANER CASE (See  REPLACEMENT  )
  11. REMOVE AIR CLEANER BRACKET (See  REPLACEMENT  )
  12. REMOVE AIR CLEANER INLET NO. 1 (See  REPLACEMENT  )
  13. REMOVE HOOD LOCK RELEASE LEVER PROTECTOR
    1. Release the 4 claws and remove the hood lock release lever protector.

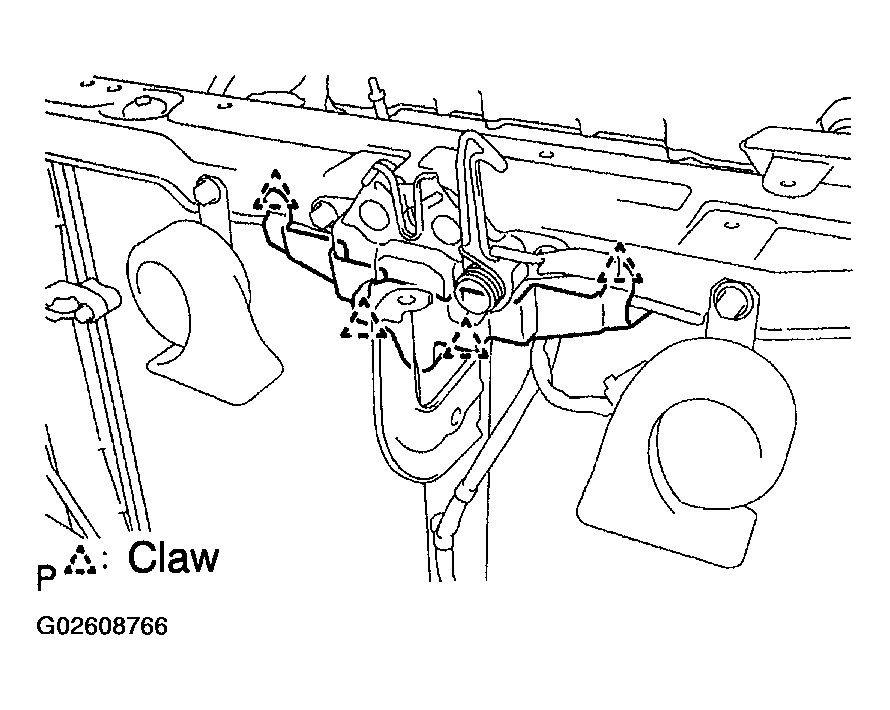

    Fig 1: Removing Hood Lock Release Lever Protector
    G02608766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE HOOD LOCK ASSY
    1. Remove the 3 bolts and separate hood lock.

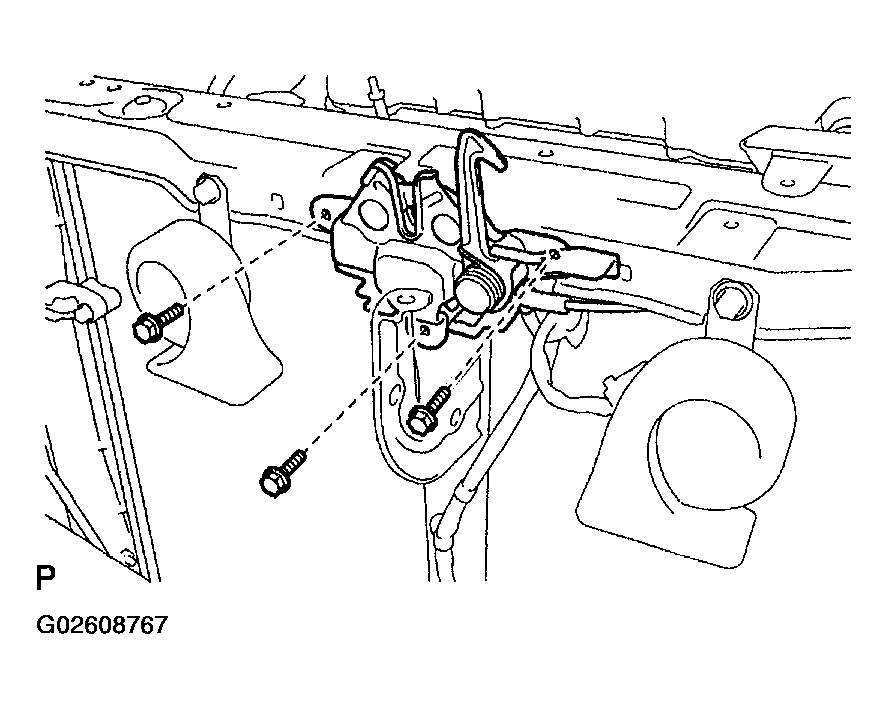

    Fig 2: Separating Hood Lock
    G02608767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE RADIATOR SUPPORT SUB-ASSY UPPER
    1. Disconnect the horn connectors.
    2. Remove the 5 bolts and the radiator upper support.
  16. REMOVE FAN SHROUD
    1. Disconnect the engine coolant reservoir hose.
    2. Disconnect the fan motor connector.

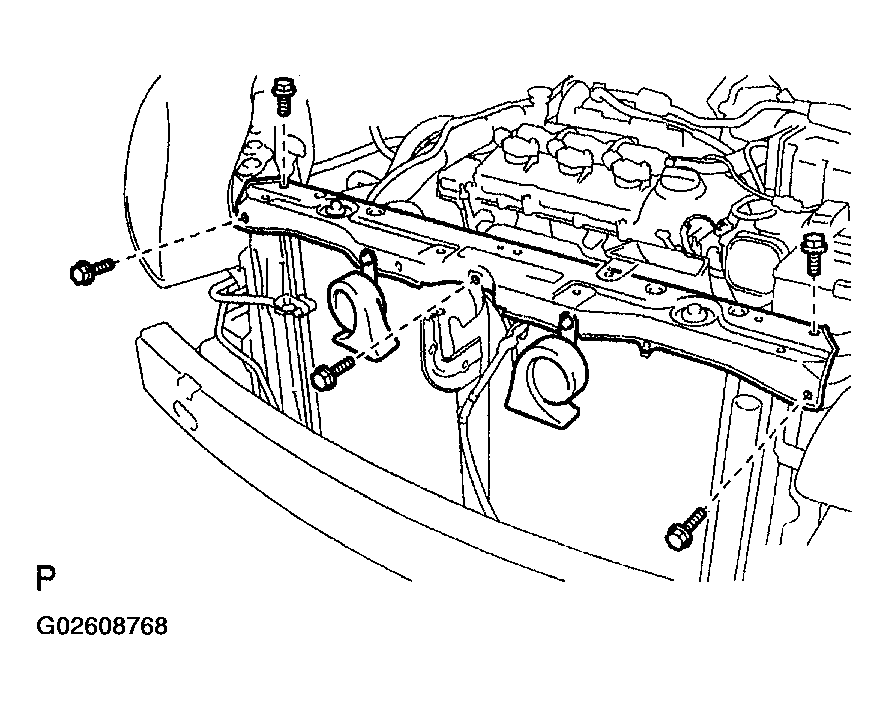

      Fig 3: Removing Radiator Upper Support Bolt
      G02608768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 bolts and the fan shroud.

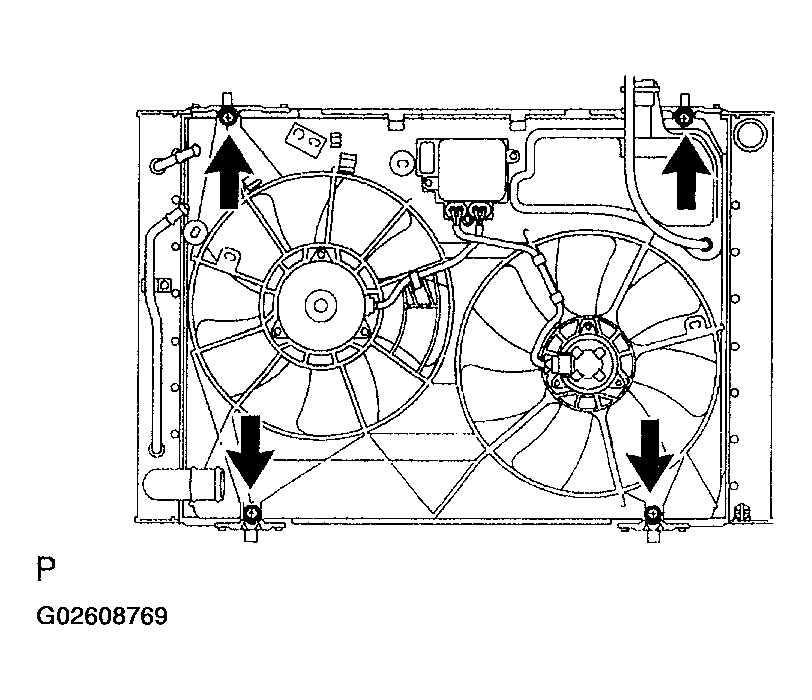

    Fig 4: Removing Fan Shroud Bolts
    G02608769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE RADIATOR SUPPORT SUB-ASSY UPPER LH
    1. Remove the 3 bolts and the radiator support upper LH.

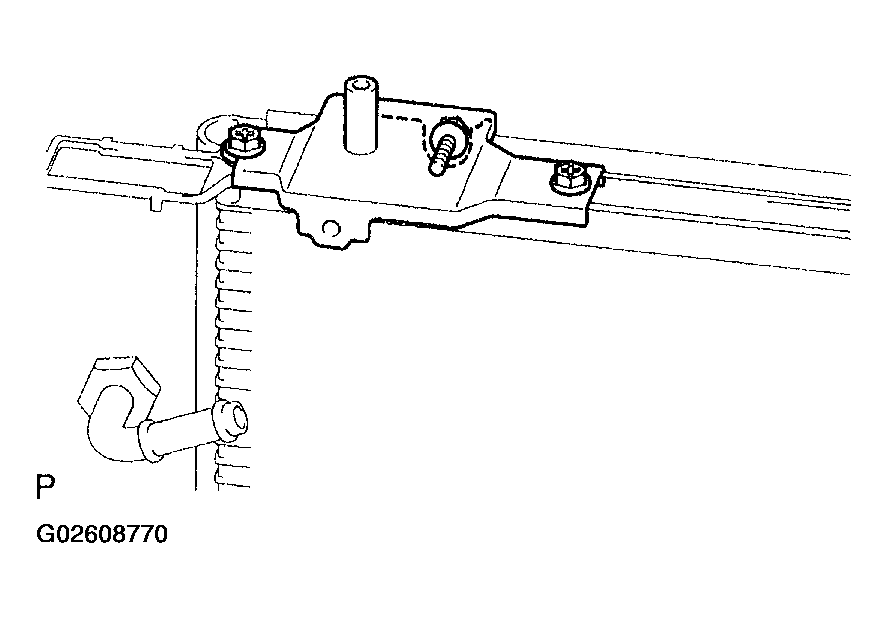

    Fig 5: Removing Radiator Support Upper LH Bolt
    G02608770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE RADIATOR SUPPORT SUB-ASSY UPPER RH
    1. Remove the 3 bolts and the radiator support upper RH.

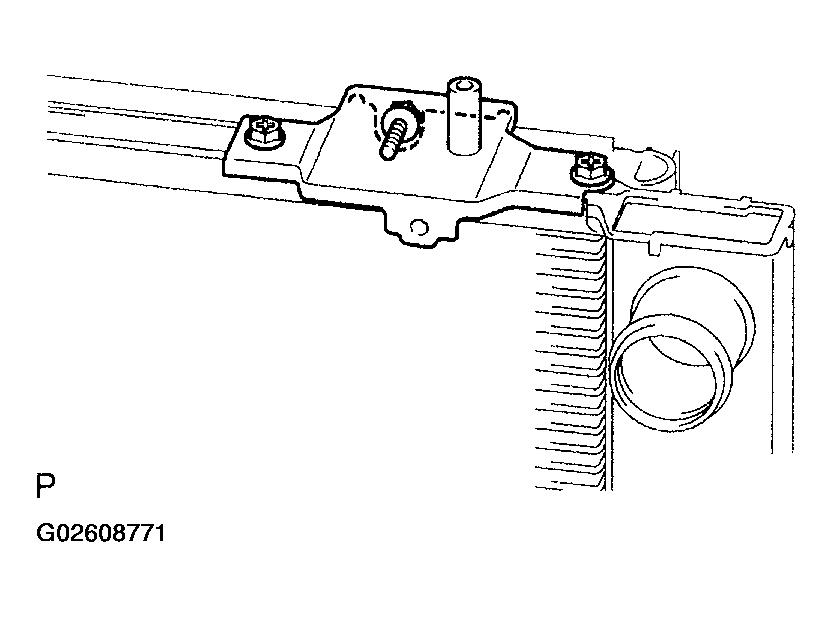

    Fig 6: Removing Radiator Support Upper RH Bolt
    G02608771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE RADIATOR SUPPORT SUB-ASSY LOWER LH
    1. Remove the 3 bolts and the radiator support lower LH.
    Fig 7: Removing Radiator Support Lower LH Bolt
    G02608772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE RADIATOR SUPPORT SUB-ASSY LOWER RH
    1. Remove the 3 bolts and the radiator support lower RH.

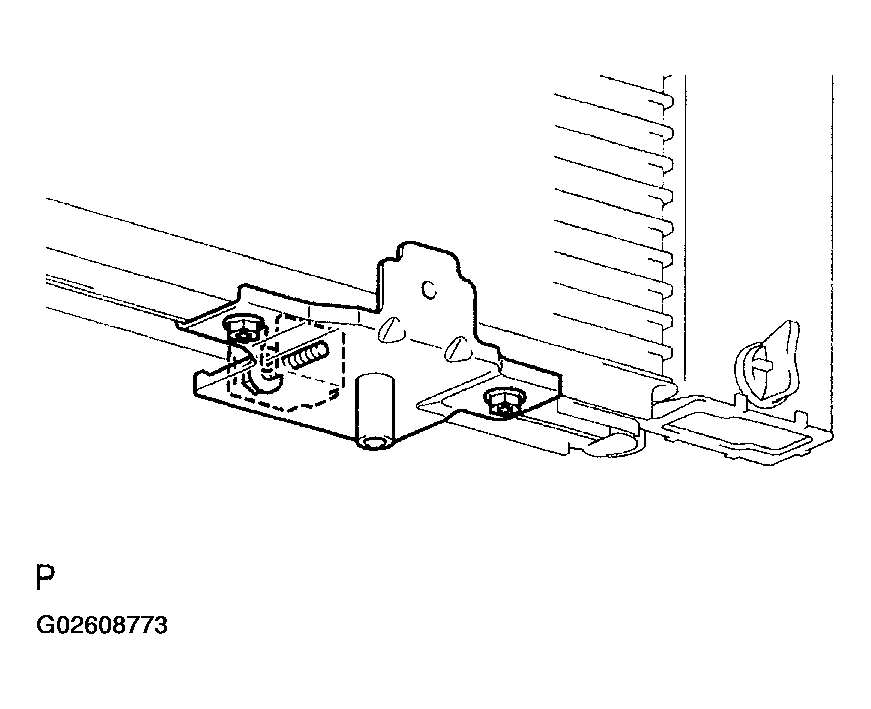

    Fig 8: Removing Radiator Support Lower RH Bolt
    G02608773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE NO. 2 RADIATOR ASSY
  22. INSTALL NO. 2 RADIATOR ASSY
  23. INSTALL RADIATOR SUPPORT SUB-ASSY LOWER LH
    1. Install the radiator support lower LH with the 3 bolts.

      Torque:

      Bolt A 5.0 N.m (51 kgf.cm, 44 in.lbf)

      Bolt B 3.9 N.m (40 kgf.cm, 35 in.lbf)

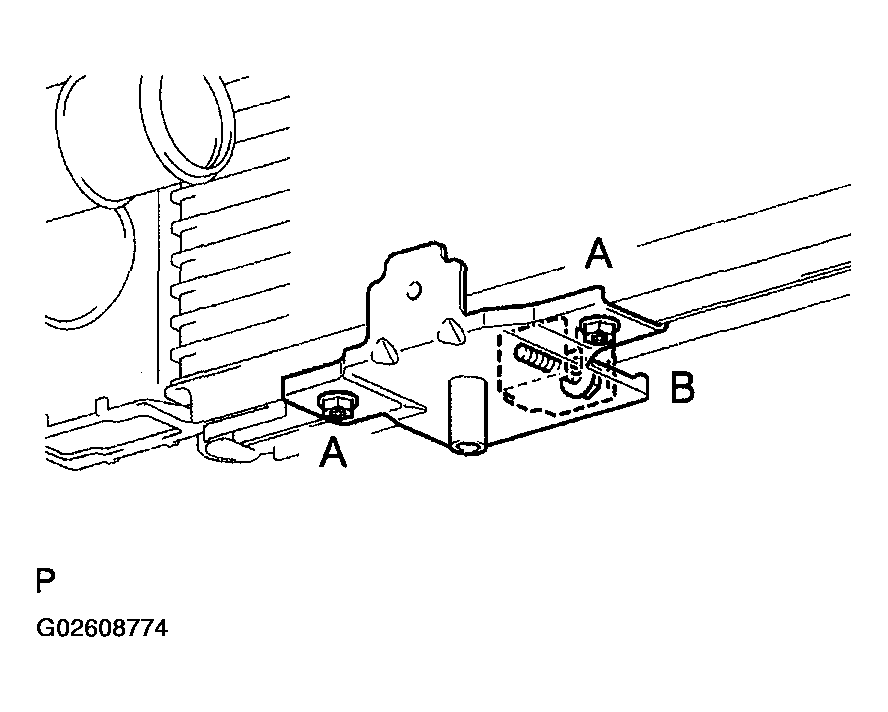

    Fig 9: Installing Radiator Support Lower LH With Bolts
    G02608774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL RADIATOR SUPPORT SUB-ASSY LOWER RH
    1. Install the radiator support lower RH with the 3 bolts.

      Torque:

      Bolt A 5.0 N.m (51 kgf.cm, 44 in.lbf)

      Bolt B 3.9 N.m (40 kgf.cm, 35 in.lbf)

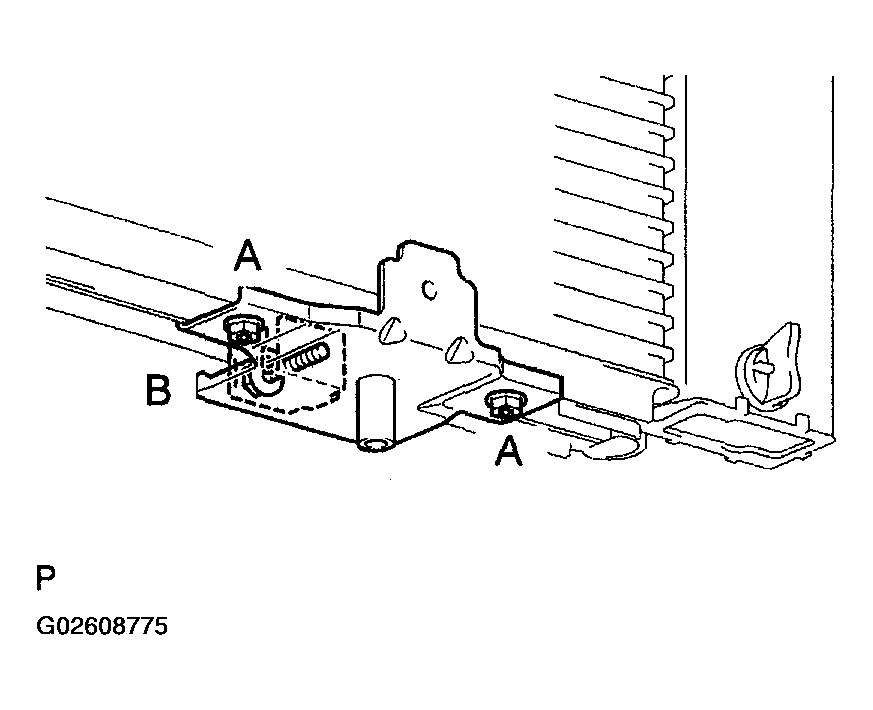

    Fig 10: Installing Radiator Support Lower RH With Bolts
    G02608775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL RADIATOR SUPPORT SUB-ASSY UPPER LH
    1. Install the radiator support upper LH with the 3 bolts.

      Torque:

      Bolt A 5.0 N.m (51 kgf.cm, 44 in.lbf)

      Bolt B 3.9 N.m (40 kgf.cm, 35 in.lbf)

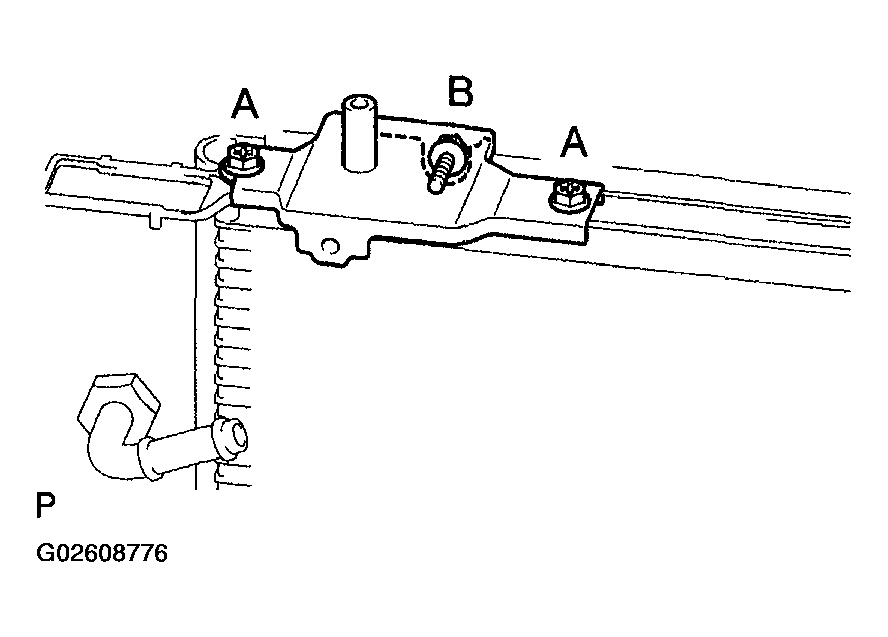

    Fig 11: Installing Radiator Support Upper LH With Bolts
    G02608776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL RADIATOR SUPPORT SUB-ASSY UPPER RH
    1. Install the radiator support upper RH with the 3 bolts.

      Torque:

      Bolt A 5.0 N.m (51 kgf.cm, 44 in.lbf)

      Bolt B 3.9 N.m (40 kgf.cm, 35 in.lbf)

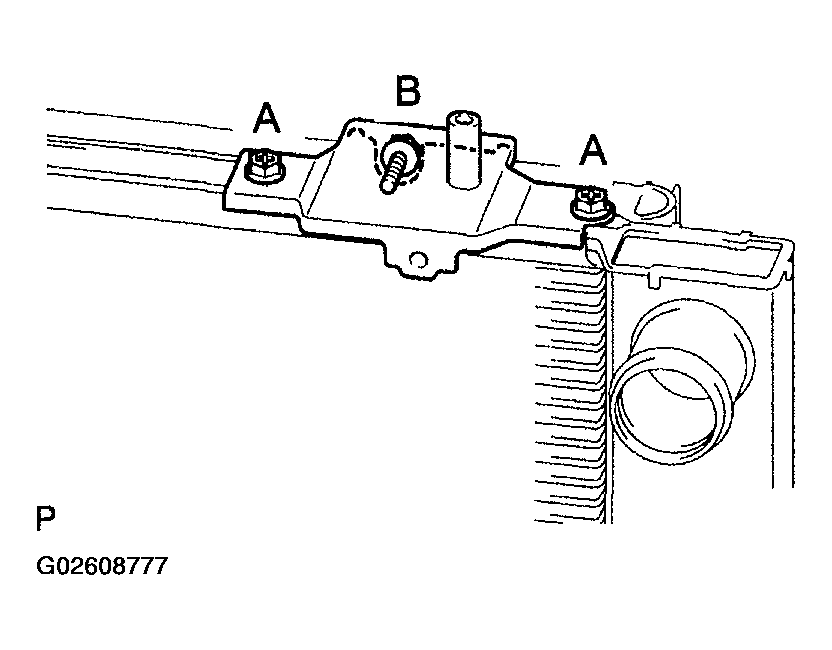

    Fig 12: Installing Radiator Support Upper RH With Bolts
    G02608777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL FAN SHROUD

    Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

  28. INSTALL RADIATOR SUPPORT SUB-ASSY UPPER

    Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

  29. INSTALL HOOD LOCK ASSY

    Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

  30. INSTALL AIR CLEANER INLET NO. 1 (See  REPLACEMENT  )
  31. INSTALL AIR CLEANER BRACKET (See  REPLACEMENT  )
  32. INSTALL AIR CLEANER CASE (See  REPLACEMENT  )
  33. INSTALL AIR CLEANER INLET NO. 2 (See  REPLACEMENT  )
  34. INSTALL AIR CLEANER CAP SUB-ASSY (See  REPLACEMENT  )
  35. ADJUST HOOD SUB-ASSY (See  ADJUSTMENT  )
  36. ADD COOLANT (See  ENGINE COOLANT   )
  37. CHECK FOR ENGINE COOLANT LEAKS (See  COOLING SYSTEM   )
