Charcoal Canister ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE CHARCOAL CANISTER PROTECTOR
1. Remove the 6 bolts and the charcoal canister protector.

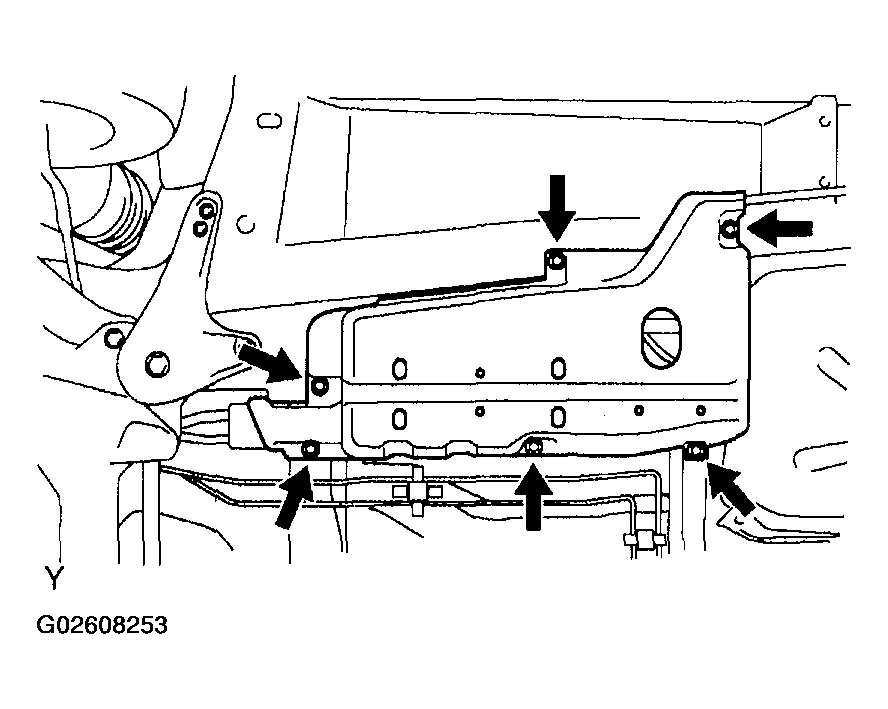

Fig 1: Removing Charcoal Canister Protector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CHARCOAL CANISTER ASSY
1. Disconnect the fuel tank vent hose.
  1. Deeply push the connector to release the locking tab.
  2. Pinch portion A.
  3. Pull out the connector.

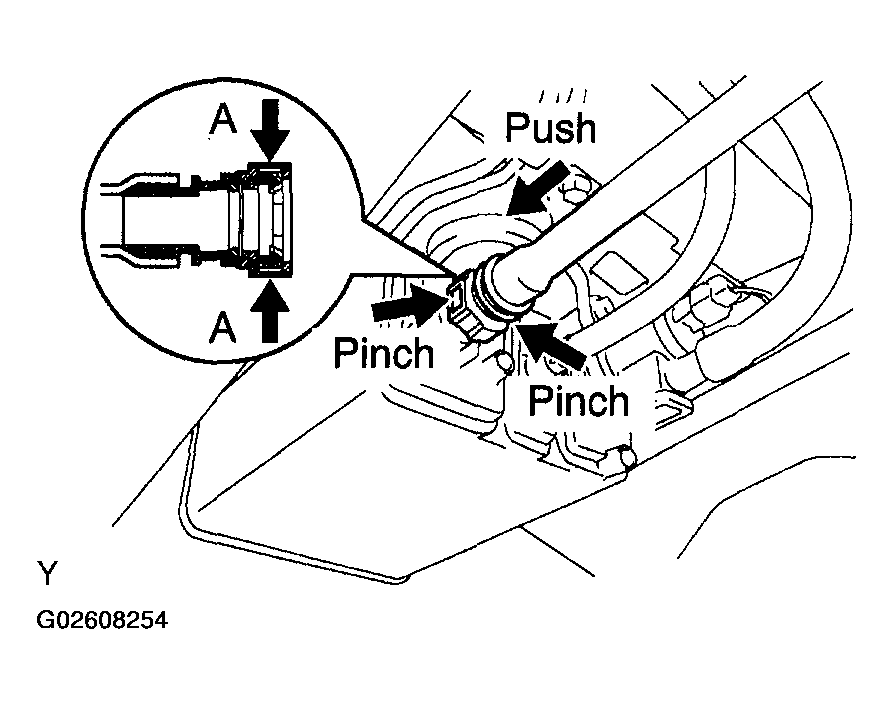

  Fig 2: Disconnecting Fuel Tank Vent Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the VSV (for CCV) connector.
3. Disconnect the charcoal canister outlet hose No. 1.
4. Disconnect the main tube No. 1 fuel hose.

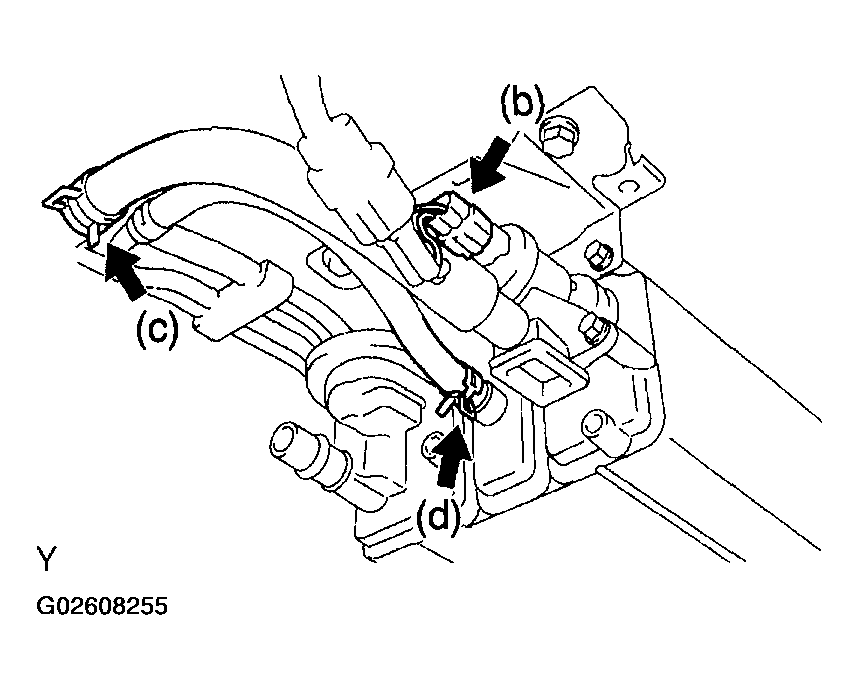

  Fig 3: Disconnecting Charcoal Canister Outlet Hose No. 1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 3 bolts and the charcoal canister.

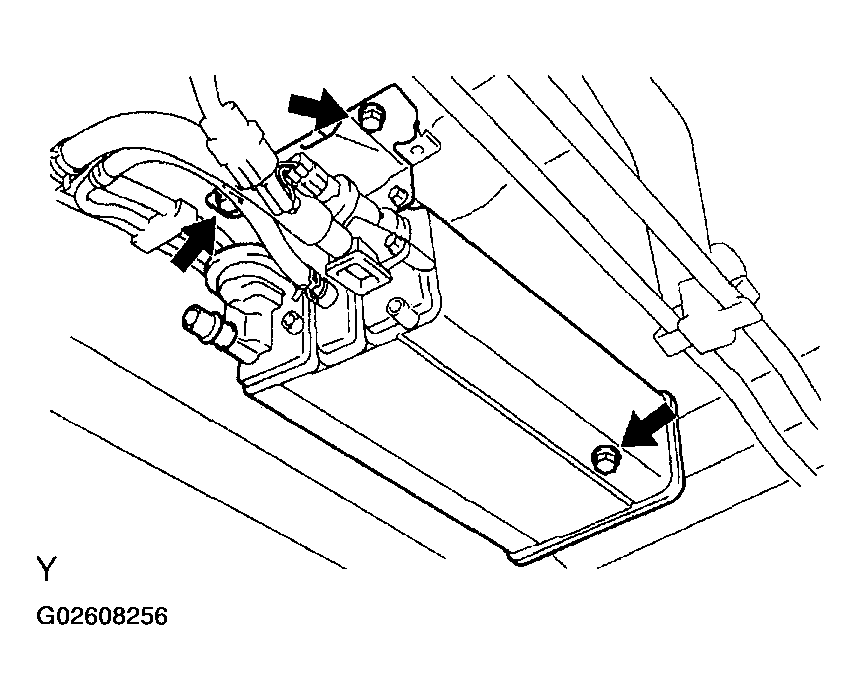

Fig 4: Removing 3 Bolts & Charcoal Canister
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CHARCOAL CANISTER ASSY
Torque: 29 N.m (296 kgf.cm, 21 ft.lbf)
INSTALL CHARCOAL CANISTER PROTECTOR
Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)
