Dynamic Laser Cruise Control System: Location

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

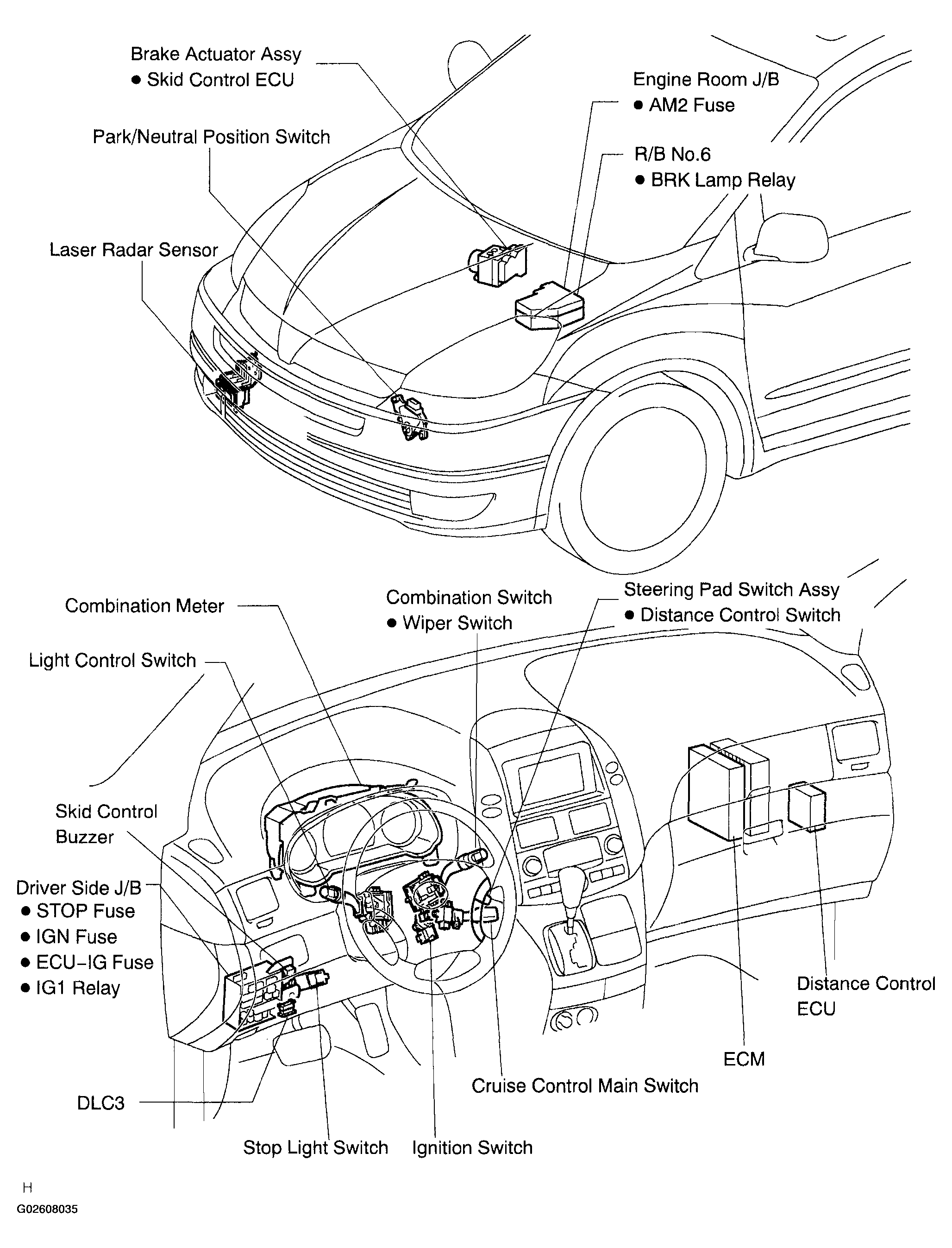

Fig 1: Locating Dynamic Laser Cruise Control
G02608035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

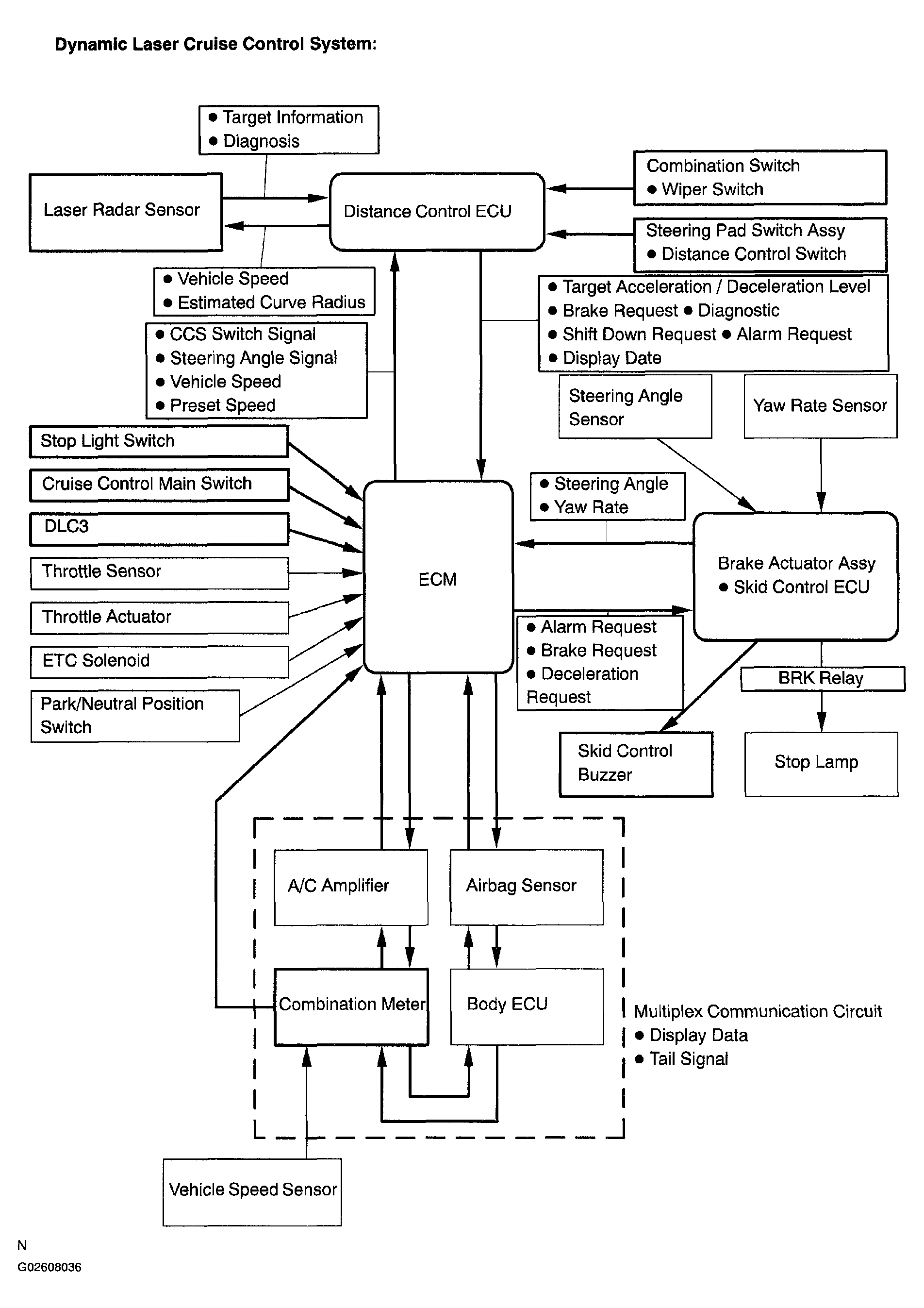

Fig 2: Dynamic Laser Cruise Control System Flow Diagram
G02608036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
