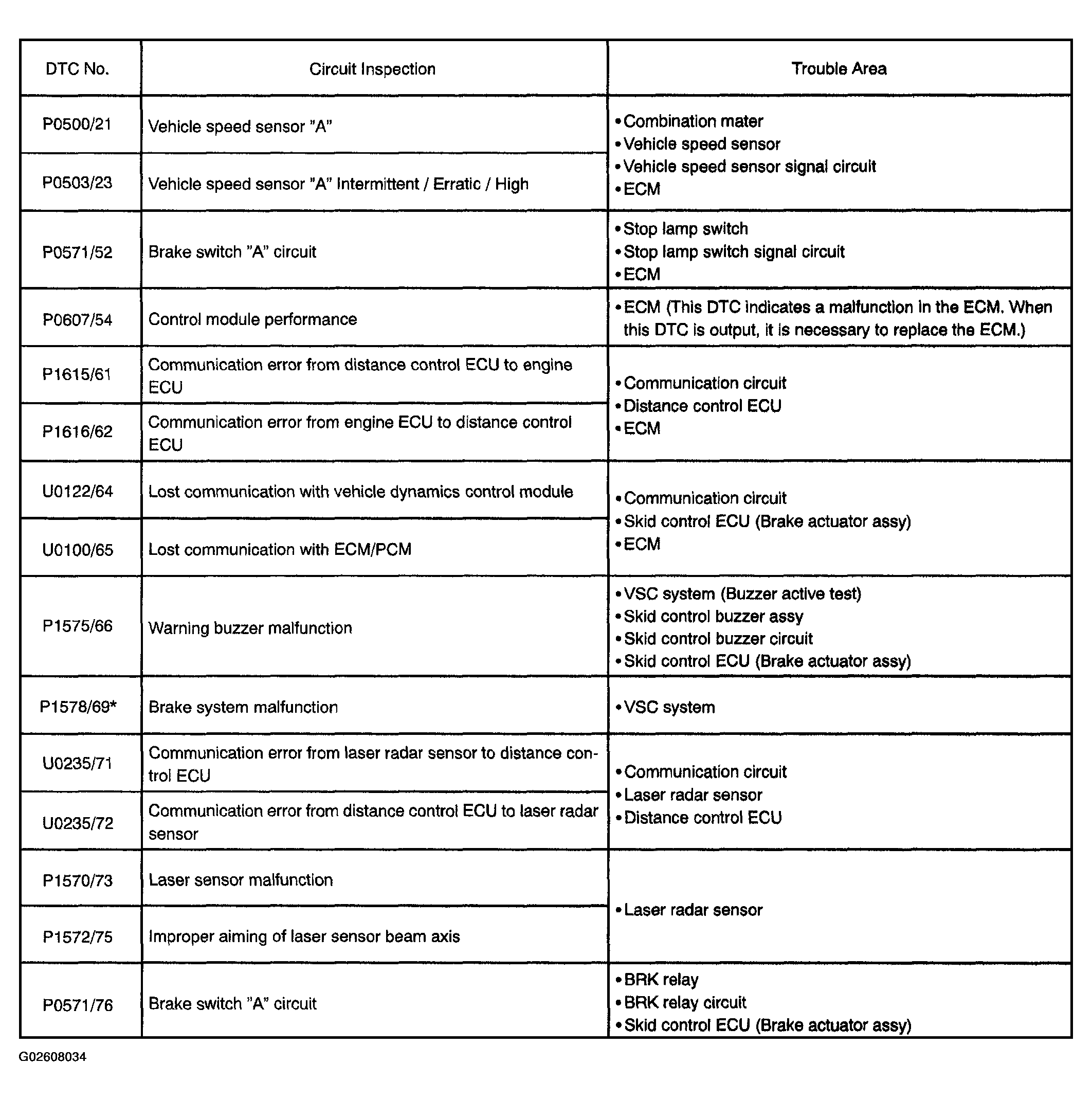

Diagnostic Trouble Code Table
WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
HINT:
- Using SST 09843-18040, connect terminal TC and CG of DLC3.
- If a malfunction code is displayed during the DTC check, check the circuit listed for that code. For details of each code, refer to the "DTC No." in the DTC table.
HINT:
*: When DTC P1578 (69) is output, check the DTCs on the skid control ECU in the diagnosis mode. Only when any code is output, inspect the trouble area based on following the DTC.
