Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

CHECK WIRE HARNESS AND CONNECTOR (DISTANCE CONTROL ECU - ECM)
1. Check for an open or short circuit in the harness and the connector between the distance control ECU and ECM (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).
1. NG: REPAIR OR REPLACE WIRE HARNESS OR CONNECTOR
2. OK: Go to next step
INSPECT DISTANCE CONTROL ECU ASSY
1. Remove the distance control ECU with connector.

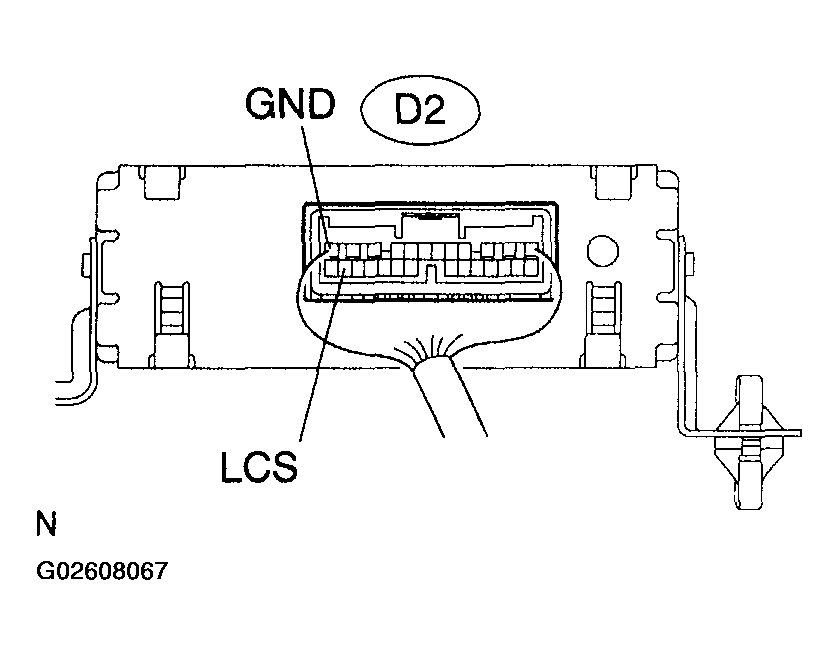

  Fig 1: Identifying Distance Control ECU Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the ignition switch ON.
3. Check the signal waveform between terminal LCS (D2-25) and GND (D2-12) of the distance control ECU.
  Standard:

  The correct signal waveform appears, as shown in Fig 2 .
HINT:
- Gauge set: 2 V/DIV, 5 ms/DIV
- Condition: Ignition switch ON

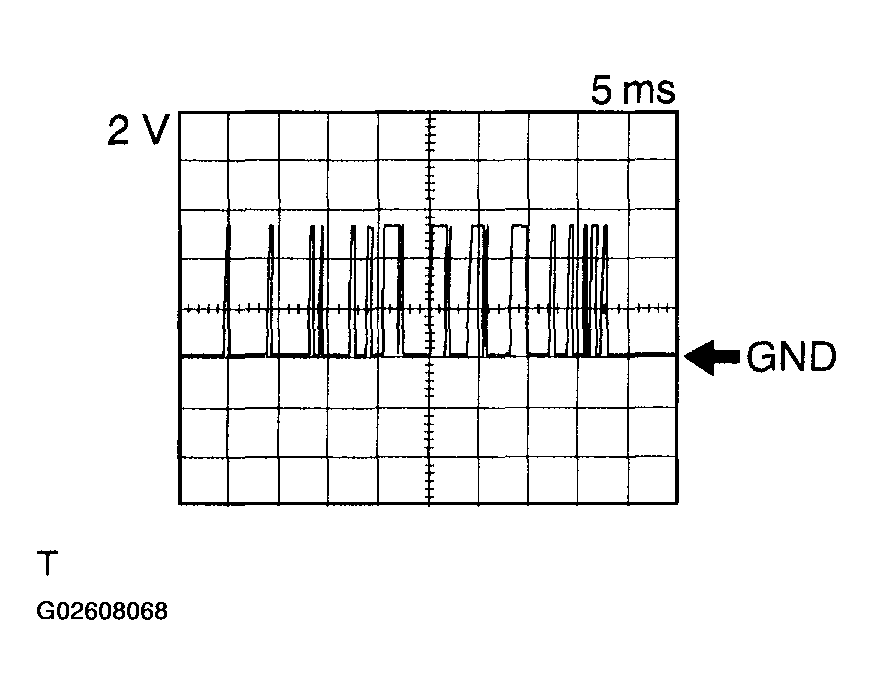

Fig 2: Identifying Signal Waveform
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE DISTANCE CONTROL ECU ASSY (see DISTANCE CONTROL ECU ASSY )
2. OK: REPLACE ECM (See REPLACEMENT )
