Terminals Of Ecu
WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

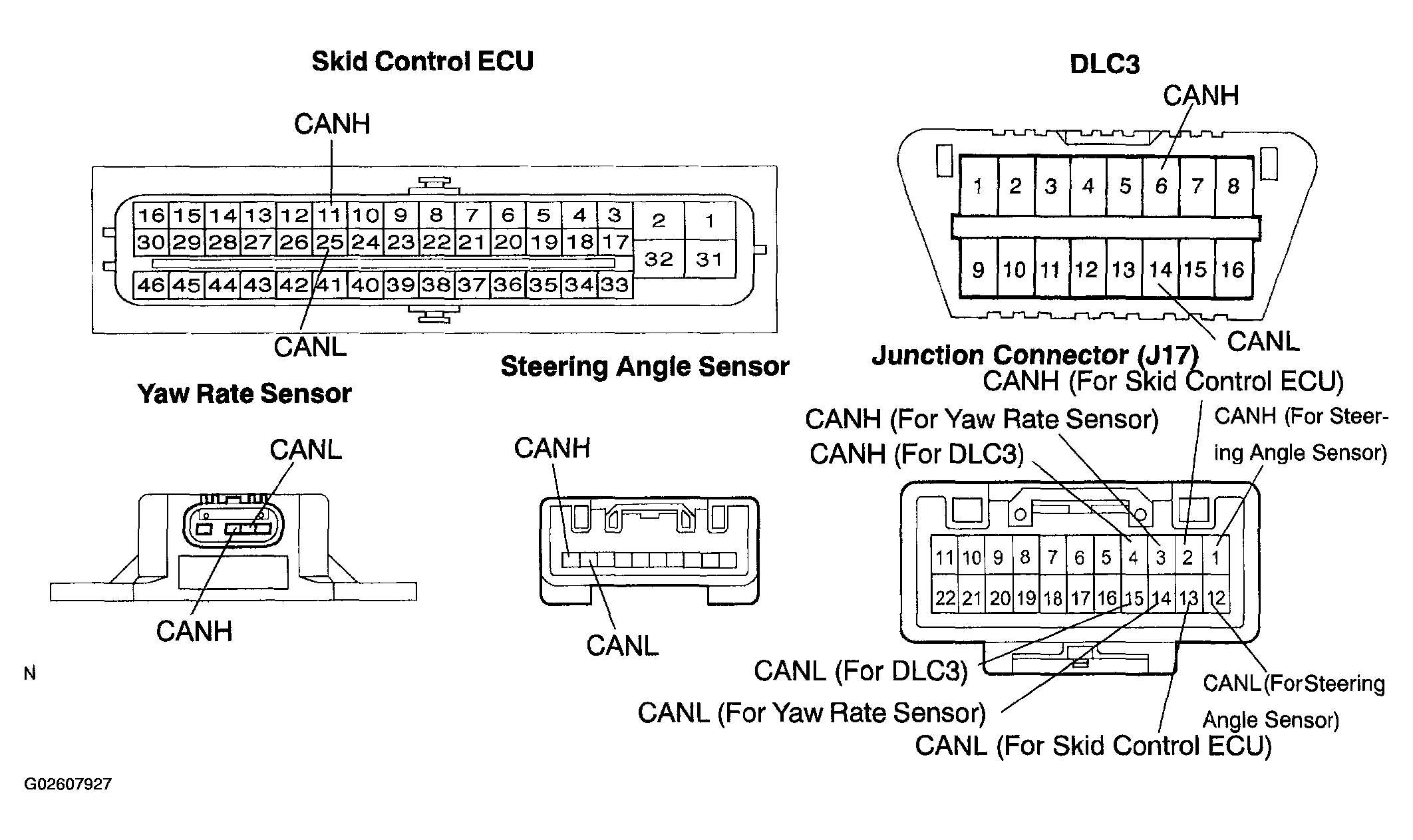

Skid Control ECU, DLC3, Yaw Rate Sensor and Steering Angle Sensor:
YAW RATE SENSOR RESISTANCE
| Symbols (Terminals No.) | Wiring Color | Condition | STD Resistance |
|---|---|---|---|
| CANH - CANL | B - W | IG switch OFF | 54 to 66 Ω |
| CANL - Body ground | W | IG switch OFF | 3 kΩ or more |
| CANH - Body ground | B | IG switch OFF | 3 kΩ or more |
| CANL - +B | W | IG switch OFF | 1 MΩ or more |
| CANH - +B | B | IG switch OFF | 1 MΩ or more |
Junction Connector (J14):
JUNCTION CONNECTOR (J14) RESISTANCE
| Symbols (Terminals No.) | Wiring Color | Condition | STD Resistance |
|---|---|---|---|
| CANH (4, 5, 6, 7) - CANL (15, 16, 17, 18) | - | IG switch OFF | 1 MΩ or more |
| CANL (4, 5, 6, 7) - Body ground | - | IG switch OFF | 1 MΩ or more |
| CANH (15, 16, 17, 18) - Body ground | - | IG switch OFF | 1 MΩ or more |
| CANL (4, 5, 6, 7) - +B | - | IG switch OFF | 1 MΩ or more |
| CANH (15, 16, 17, 18) - +B | - | IG switch OFF | 1 MΩ or more |
| CANL (4) - CANL (7) | - | IG switch OFF | 1 Ω or less |
| CANH (15) - CANH (18) | - | IG switch OFF | 1 Ω or less |
