Section 143 (Can Communication System - Diagnostics): Pre-Check

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

DTCS COMBINATION TABLE

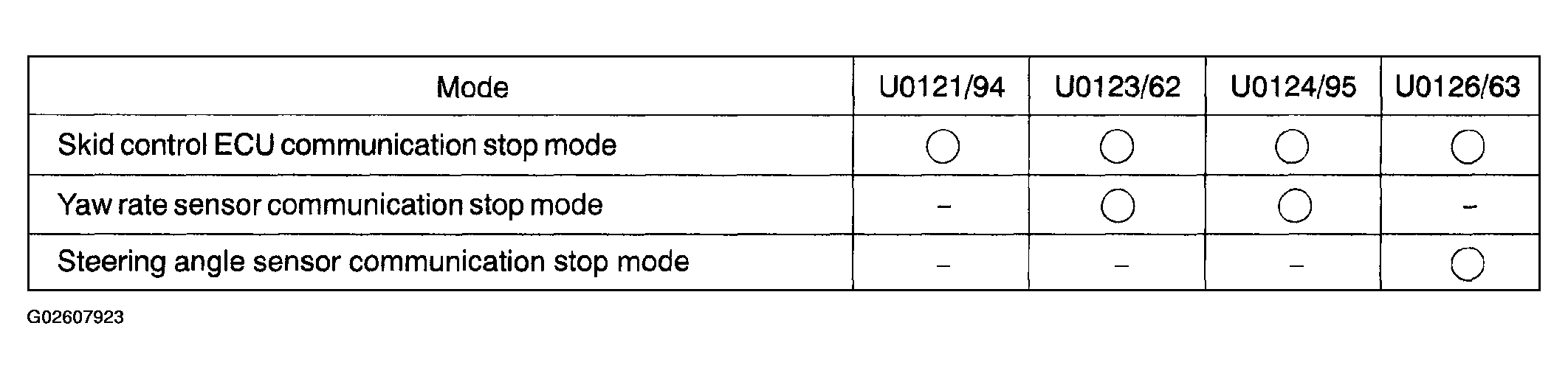

Fig 1: DTC's Combination Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

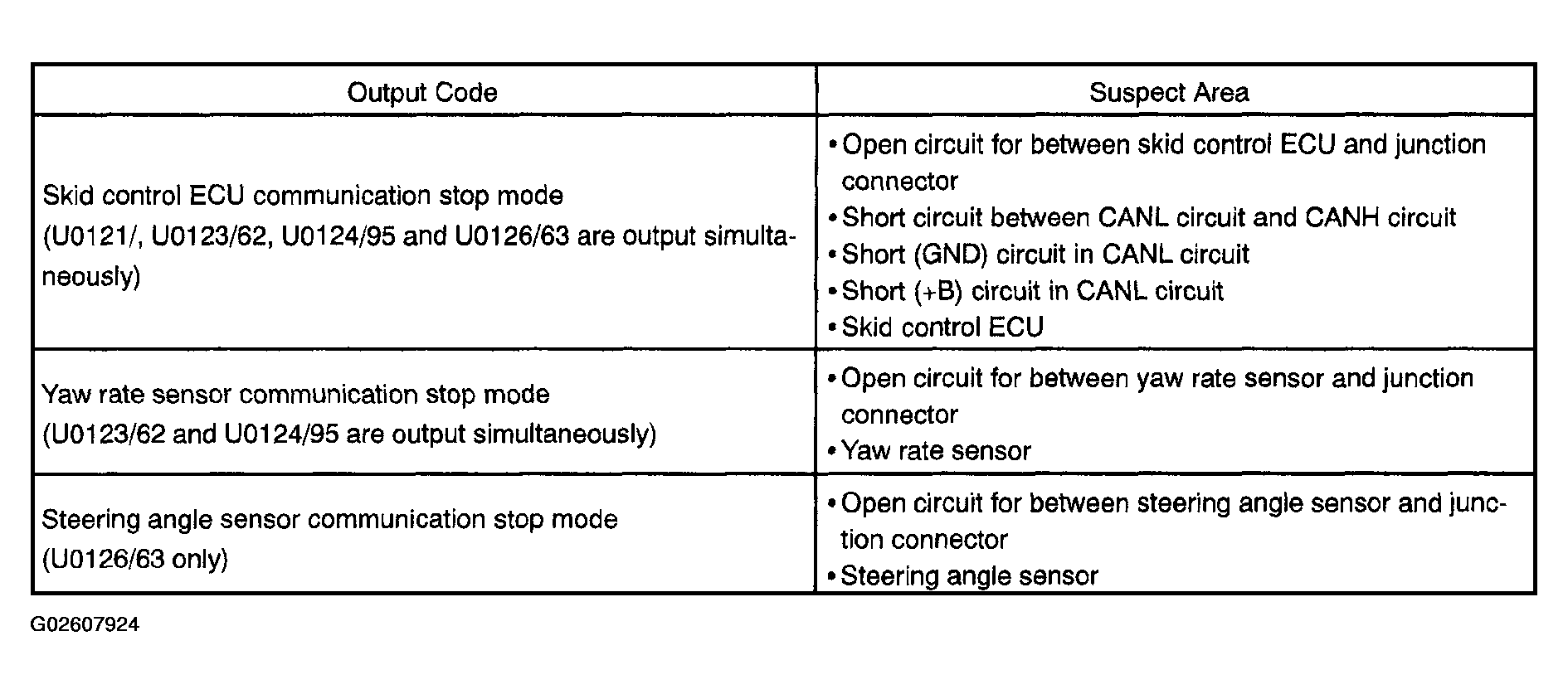

Fig 2: Output Suspect Area Index Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
