All Doors Cannot Be Locked/Unlocked At Once: Wiring Diagram

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

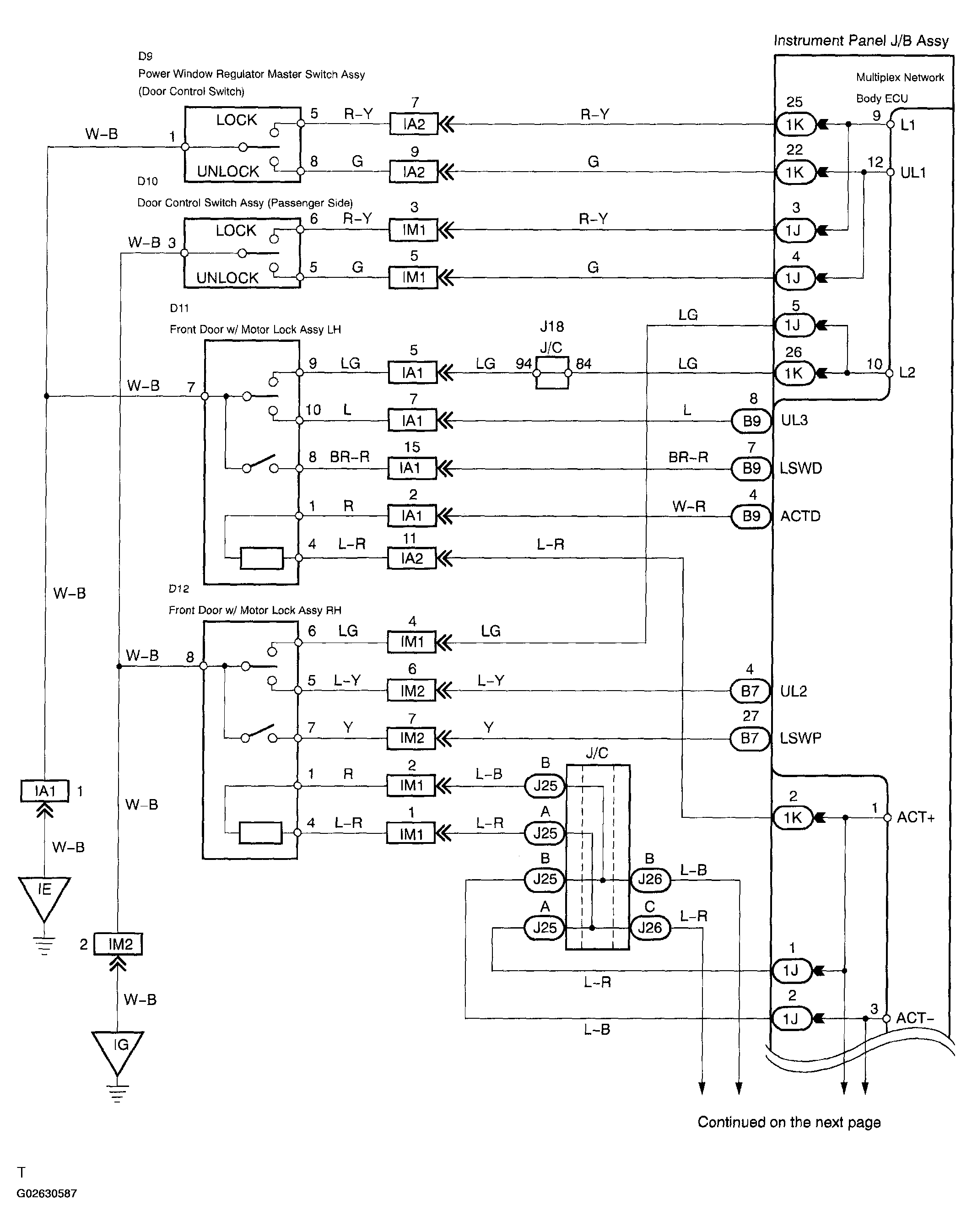

Fig 1: All Doors Cannot Be Locked/Unlocked At Once Wiring Diagram (1 Of 2)

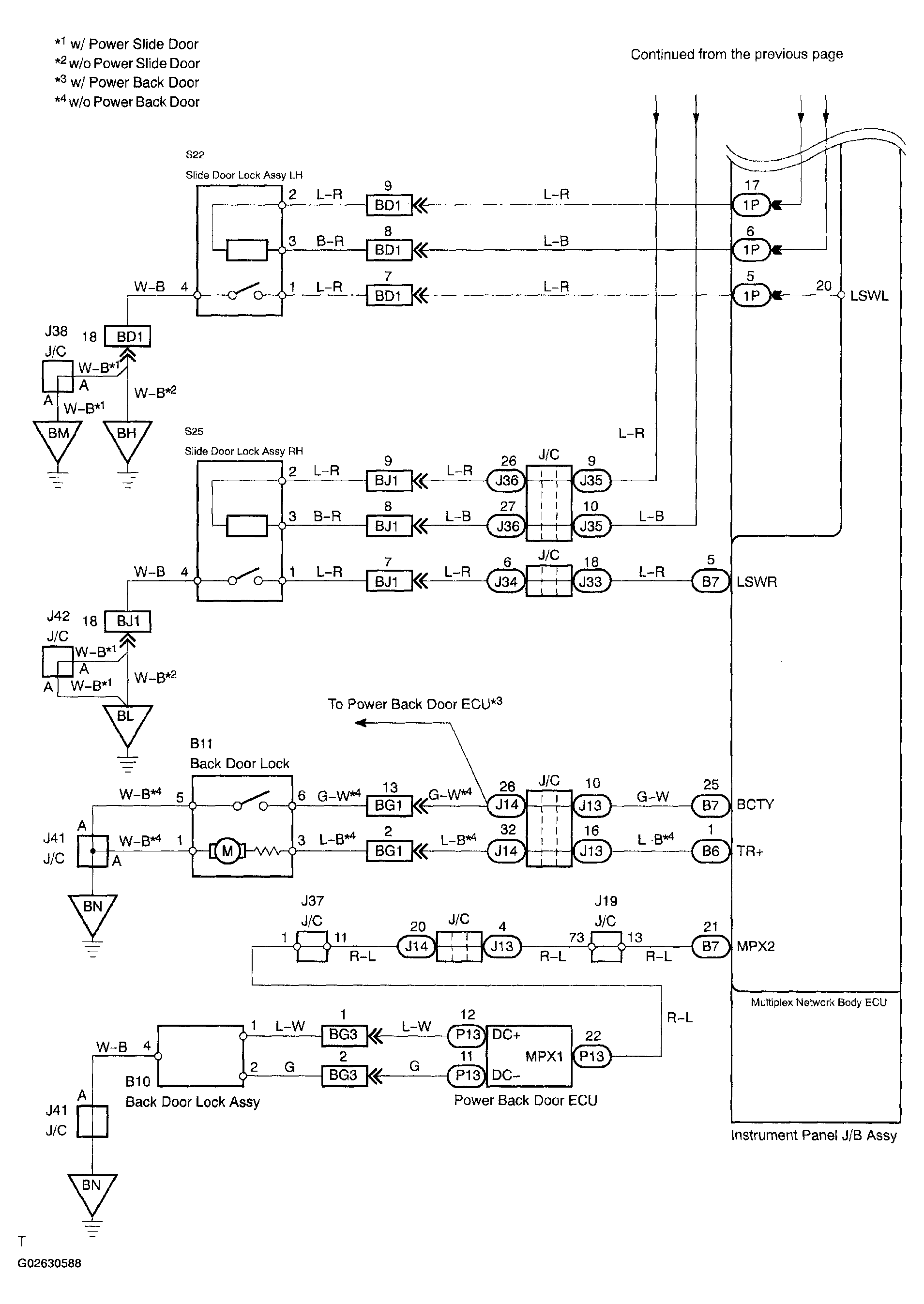

Fig 2: All Doors Cannot Be Locked/Unlocked At Once Wiring Diagram (2 Of 2)
