Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK OPERATION FUNCTION AFTER IGNITION SWITCH IS TURNED OFF
    1. If the power window operates even after either front door is opened within 45 seconds after the ignition switch is turned OFF, proceed to A.
    2. If the power window operates even after 45 seconds have passed after the ignition switch is turned OFF, proceed to B.
    1. B: REPLACE MULTIPLEX NETWORK BODY ECU
    2. A: GO TO NEXT STEP
  2. READ VALUE OF HAND-HELD TESTER
    1. Using the hand-held tester, check that the data list for proper functioning of the front door courtesy switches.

      Standard (Multiplex network body ECU):

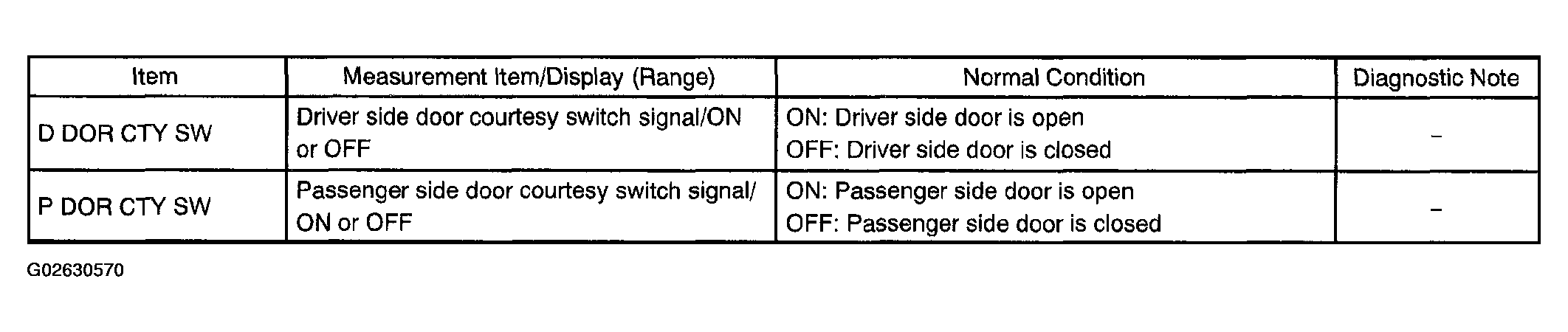

      Fig 1: Diagnostic Table
      G02630570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: REPLACE MULTIPLEX NETWORK BODY ECU
    2. NG: GO TO NEXT STEP
  3. INSPECT FRONT DOOR COURTESY LAMP SWITCH ASSY
    1. Remove the courtesy lamp switch.
    2. Check the switch resistance.

      Standard:

      TERMINAL SPECIFIED CONDITION

      Terminal No. Condition Specified Condition
      1 - Body ground Switch pushed 10 KΩ or higher
      Switch free Below 1 Ω

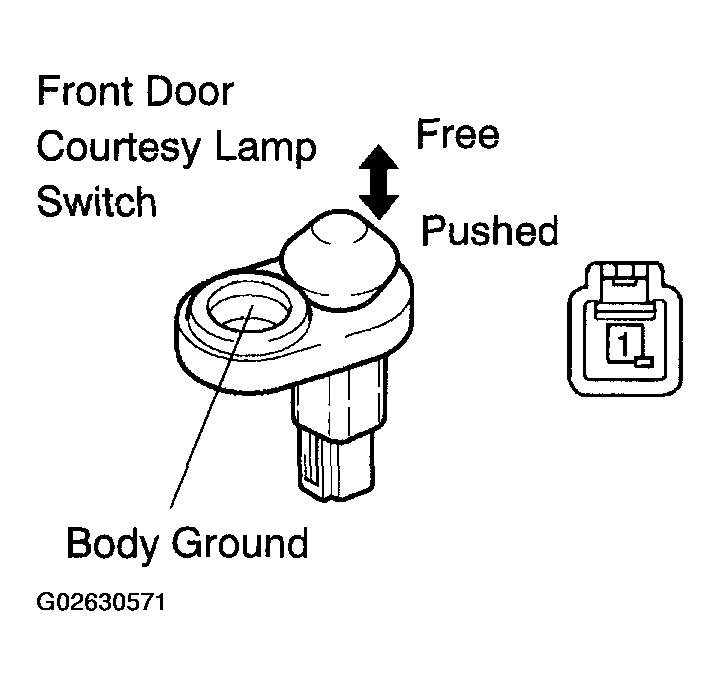

    Fig 2: Identifying Courtesy Lamp Switch Connector Terminal
    G02630571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE FRONT DOOR COURTESY LAMP SWITCH ASSY
    2. OK: GO TO NEXT STEP
  4. CHECK WIRE HARNESS (FRONT DOOR COURTESY LAMP SWITCH ASSY -MULTIPLEX NETWORK BODY ECU)
    1. Disconnect the D7 or D8 lamp switch connector.
    2. Disconnect the B7 or B9 ECU connector.
    3. Check the resistance between the wire harness side connectors.

      Standard:

      TERMINAL SPECIFIED CONDITION

      Terminal No. Specified Condition
      D7-1 - B9-14 (DCTY) Below 1 Ω
      D8-1 - B7-23 (PCTY) Below 1 Ω

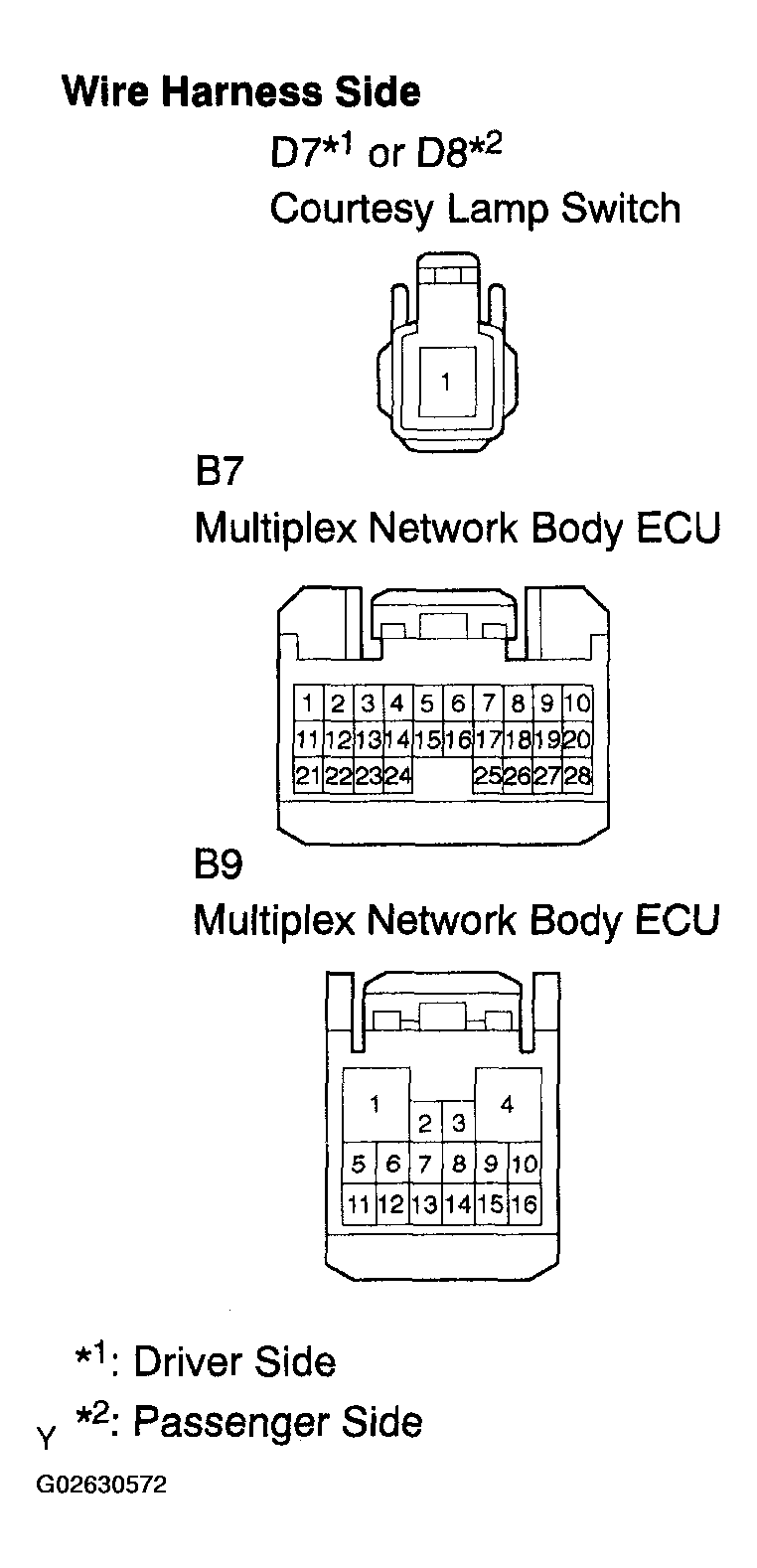

    Fig 3: Identifying Connector
    G02630572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: REPLACE MULTIPLEX NETWORK BODY ECU
