Accessory Meter

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

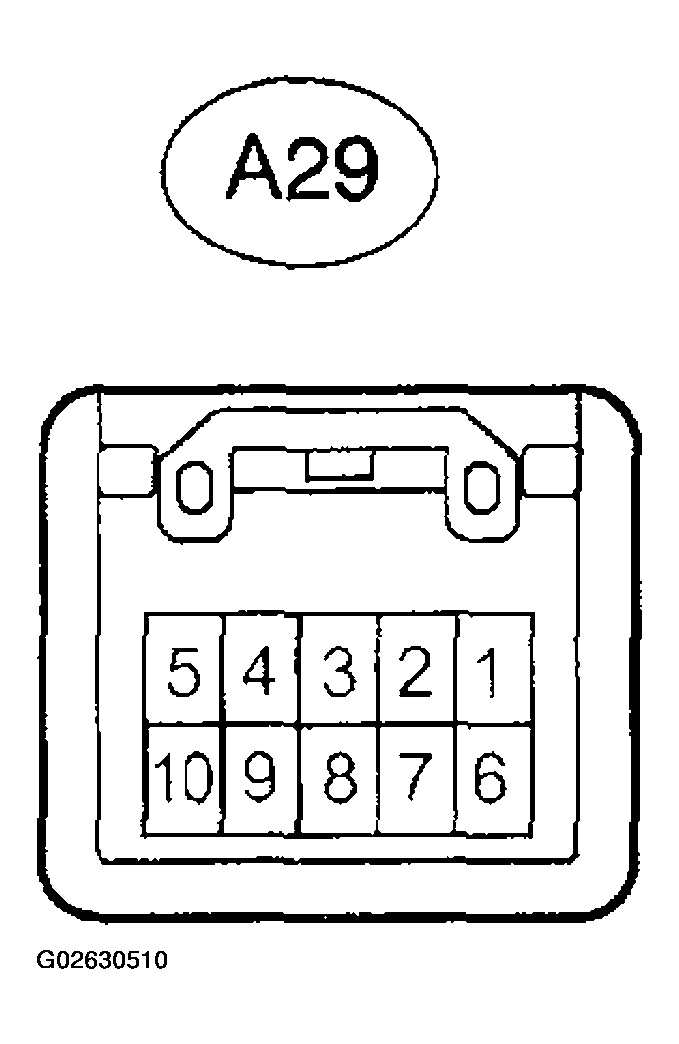

Fig 1: Identifying Accessory Meter Connectors
G02630510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

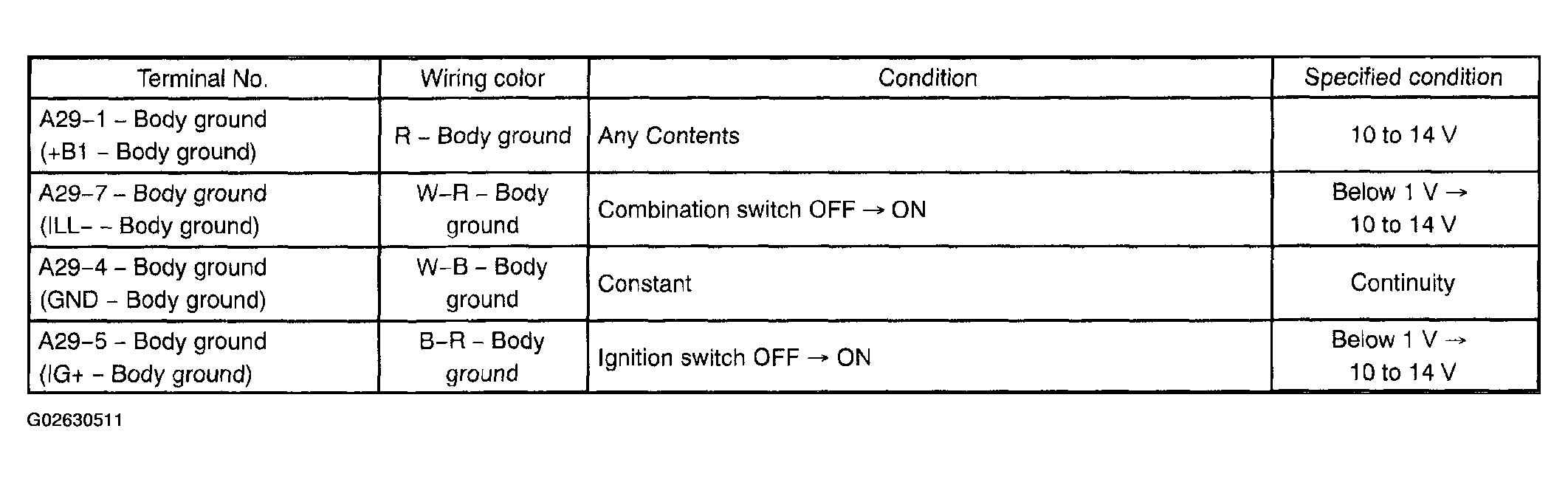

Fig 2: Accessory Meter Connector Terminals Continuity & Voltage Table
G02630511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
